Data Description

The RZ10 event is used in SAP to change profile parameters. The system automatically generates or updates the profile files at operating system level after an installation, upgrade, or the addition of a new application server instance. The installation program does not save profile files directly in the database. These profiles must be manually imported into the database. Changes are made to profiles at database level using transaction RZ10 (edit profiles).

Potential Use Cases

This event could be used for the following scenarios:

  • Monitor to determine if critical profile parameters are being changed.

  • Use to correlate with other metrics within the SAP ecosystem to determine if parameters are being exceeded.

  • Determine which parameters have been customized.

Splunk Event

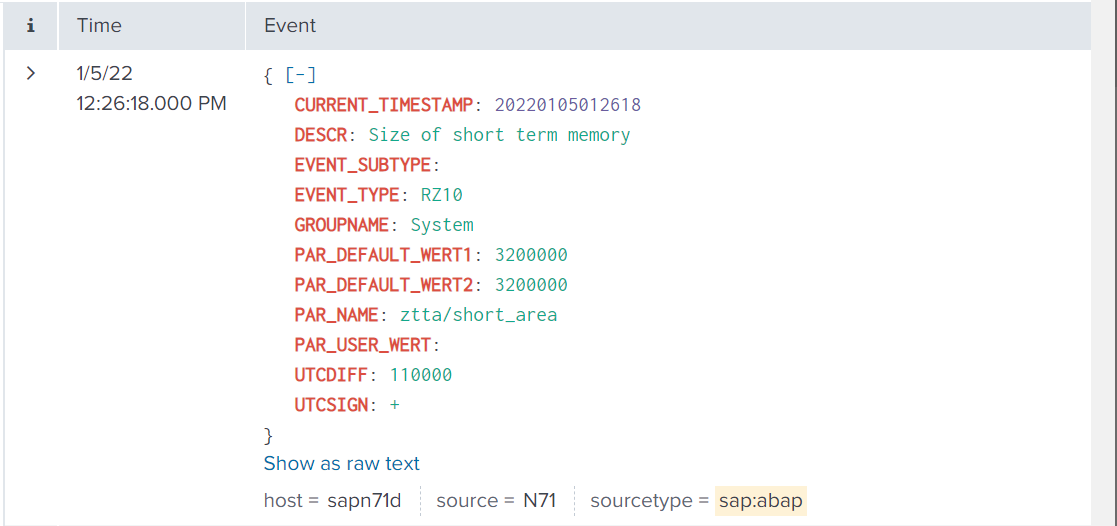

The event will look like this in Splunk:

SAP Navigation

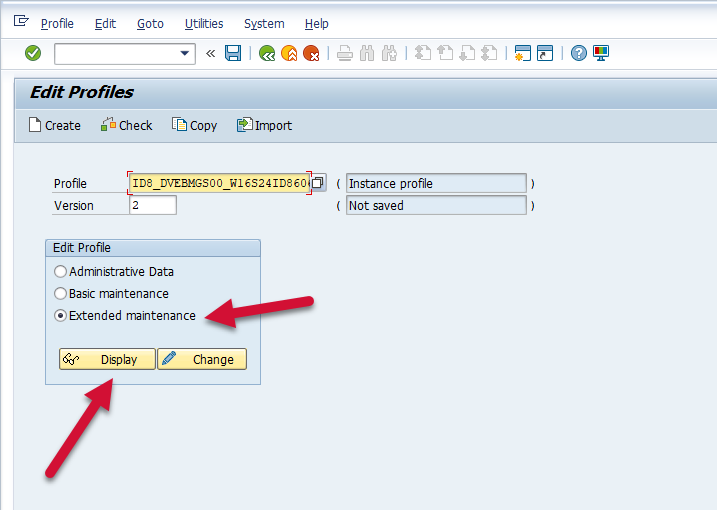

Navigate to this data by using the RZ10 t-code. Enter the desired profile name in the “Profile Name” field, and the profile version in the “Version” field, select Extended Maintenance under the “Edit Profile” option, and select the “Display” button.

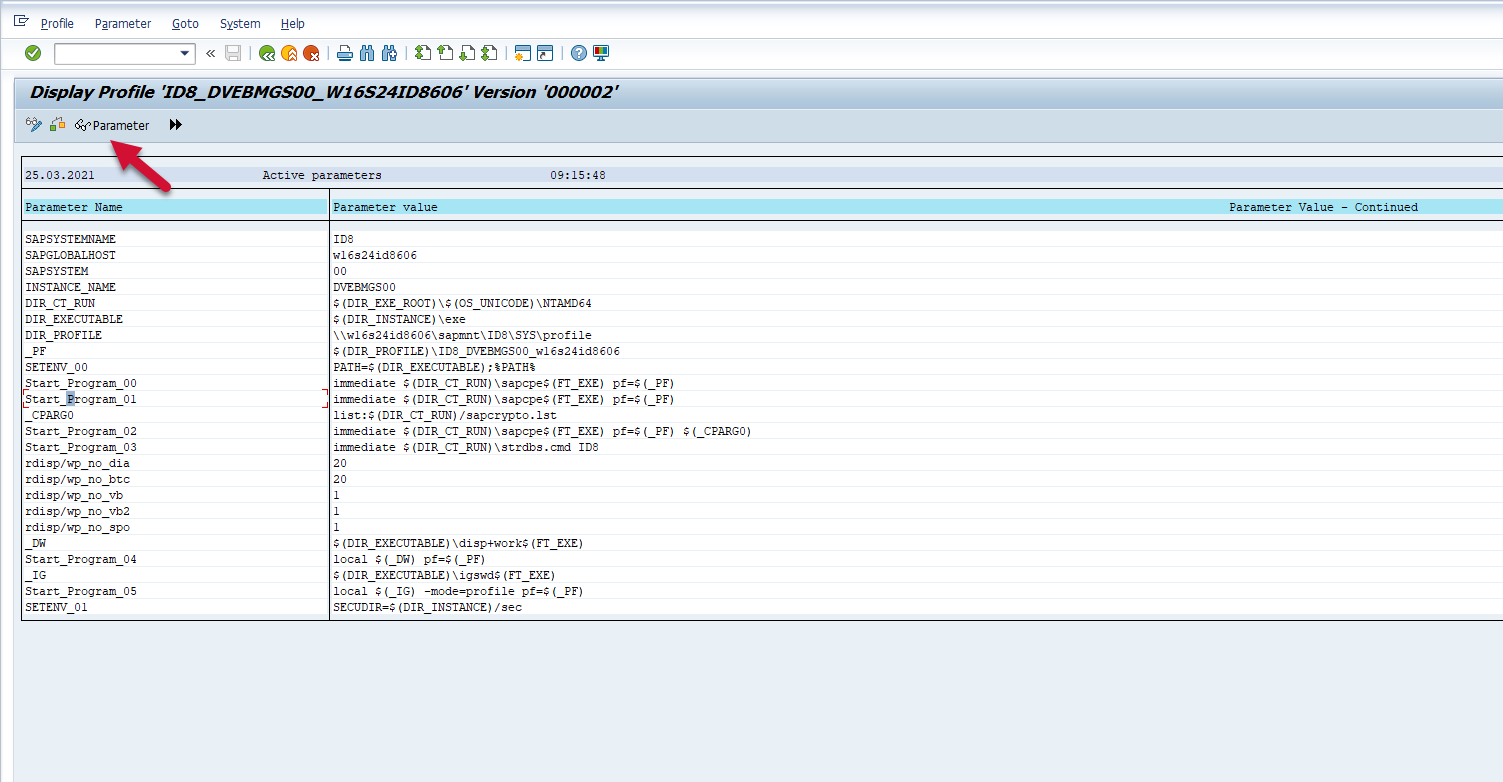

Highlight the desired parameter that you would like to view and select the “Display” button.

The data from the RZ10 event will then display.

Field Mapping

The field mapping between the data from SAP and values in Splunk can be seen in the table below:

Field

Description

Unit of Measure

CURRENT_TIMESTAMP

The date time stamp when the information was collected

YYYYMMDDHHMMSS

EVENT_SUBTYPE



String

EVENT_TYPE

RZ10

String

UTCDIFF

The UTC OFFSSET in HHMMSS that the data was collected in

HHMMSS

UTCSIGN

The UTC positive or negative OFFSET indicator. Positive (+) means add UTCDIFF to find the time zone of the data, negative (-) means subtract the UTCDIFF to find the time zone adjusted date time the data was collected in.

+ | -

DESCR

Description

String

PAR_DEFAULT_WERT1

Unsubstituted standard value

String

PAR_DEFAULT_WERT2

Substituted standard value

String

PAR_NAME

Profile parameter name

String

PAR_USER_WERT

Parameter value

String

GROUPNAME

Parameter group

String
