ATC - ABAP Test Cockpit Results
Data Description
The ATC event (corresponding to SAP transaction 'ATC->(Manage) Results' functionality in SAP Business Suite systems) is used to obtain ATC check results.
Potential Use Cases
This event could be used in the following scenarios:
To display and analyze ATC findings and Identify the precise location of errors in source code
Determine ATC errors/findings trend over time
These help to improve code quality and develop security risk-free code
Splunk Event

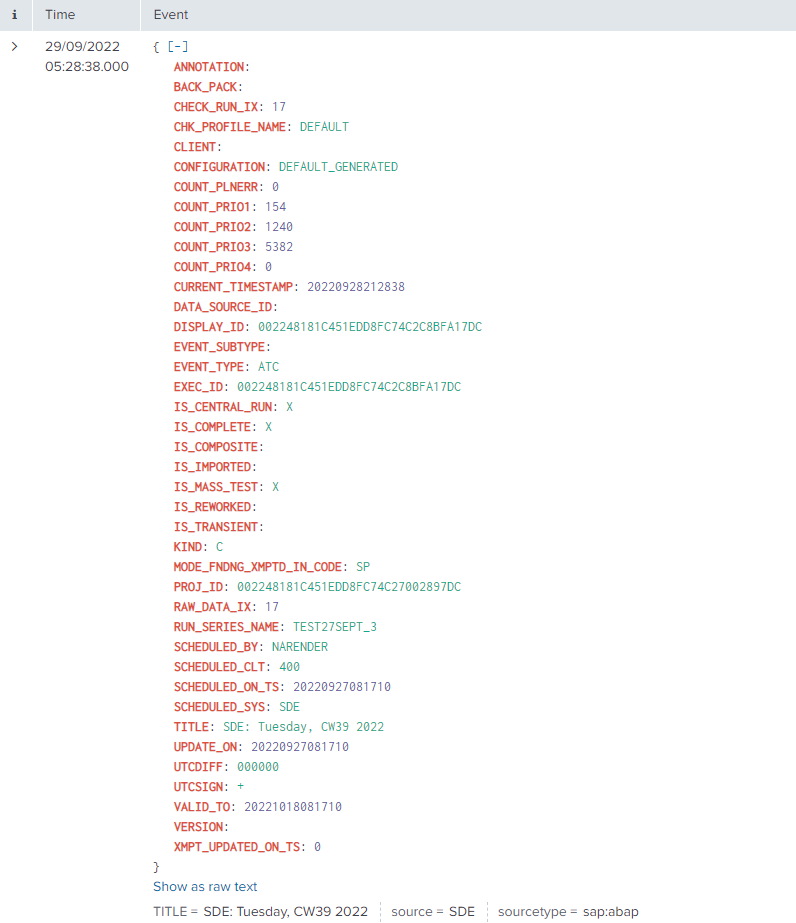

ATC with EVENT_SUBTYPE=” “
This event subtype contains the ATC run details.
![](../__attachments/3314745556/image-20221027-090713.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)

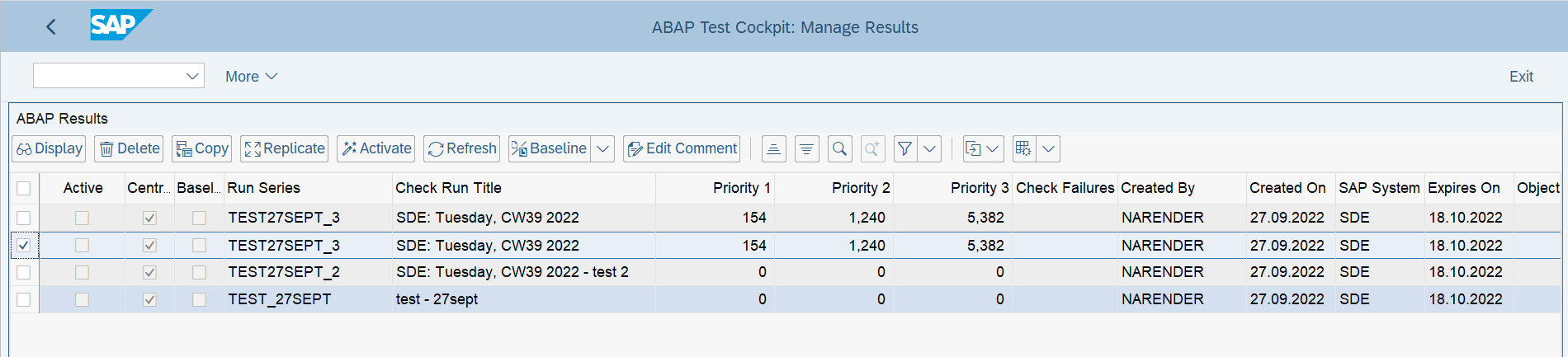

The corresponding information on the SAP system can be found on the ‘Manage Result’ screen of the ATC transaction.
![](../__attachments/3314745556/image-20221027-091019.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)

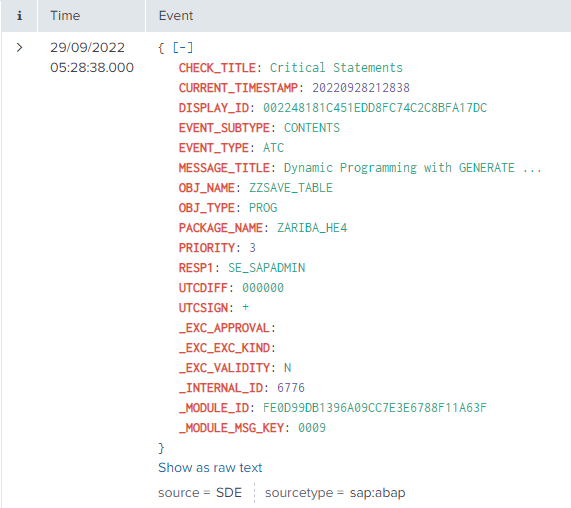

ATC with EVENT_SUBTYPE= ”CONTENTS”
This event subtype contains the details high-level details about the technical object having the error as well as the priority of the finding.
![](../__attachments/3314745556/image-20221027-091302.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)

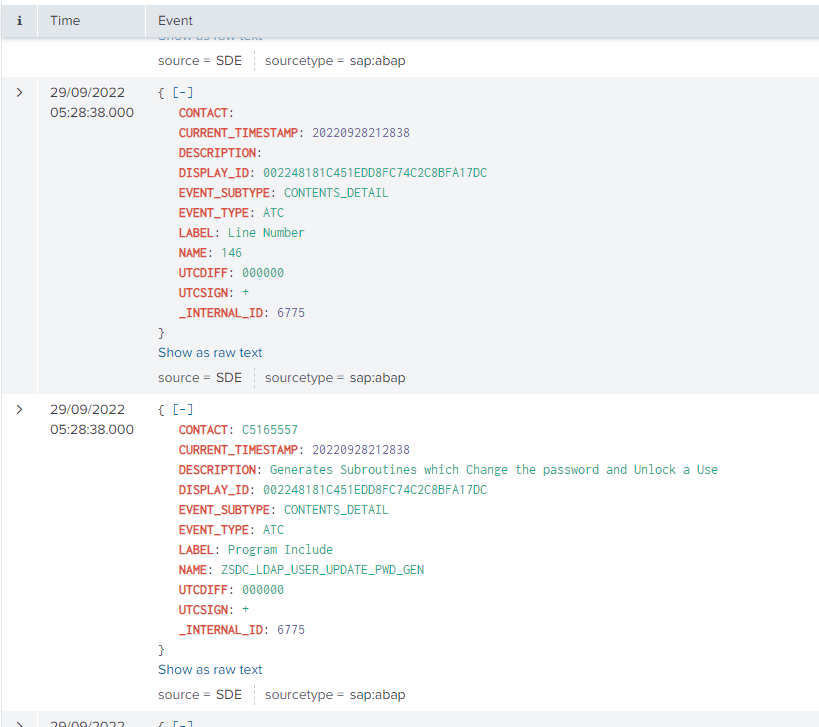

ATC with EVENT_SUBTYPE=”CONTENTS_DETAIL”
This event subtype contains the exact code line number having the error.
![](../__attachments/3314745556/image-20221027-092222.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)

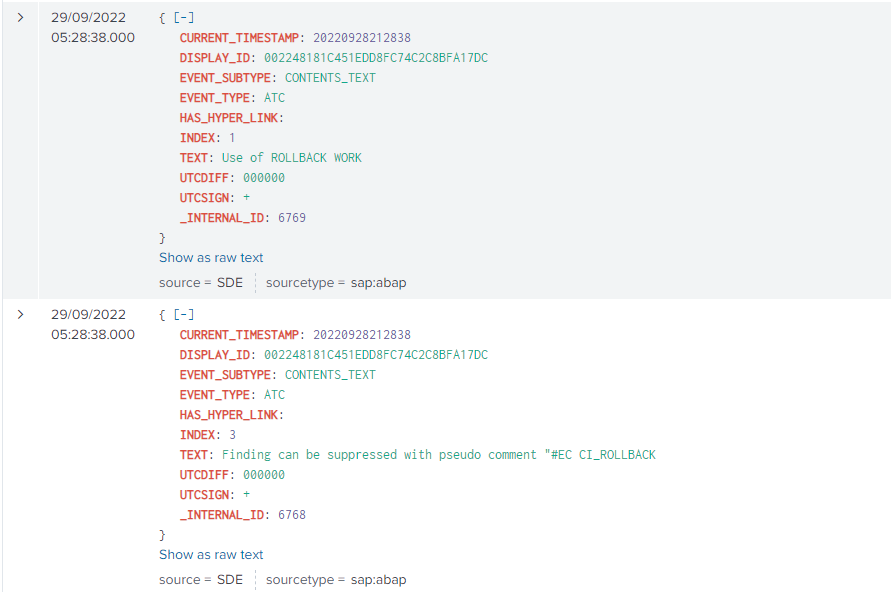

ATC with EVENT_SUBTYPE=”CONTENTS_TEXT”
This event subtype contains the description of the error and other related helpful information
![](../__attachments/3314745556/image-20221027-092551.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)
SAP Navigation

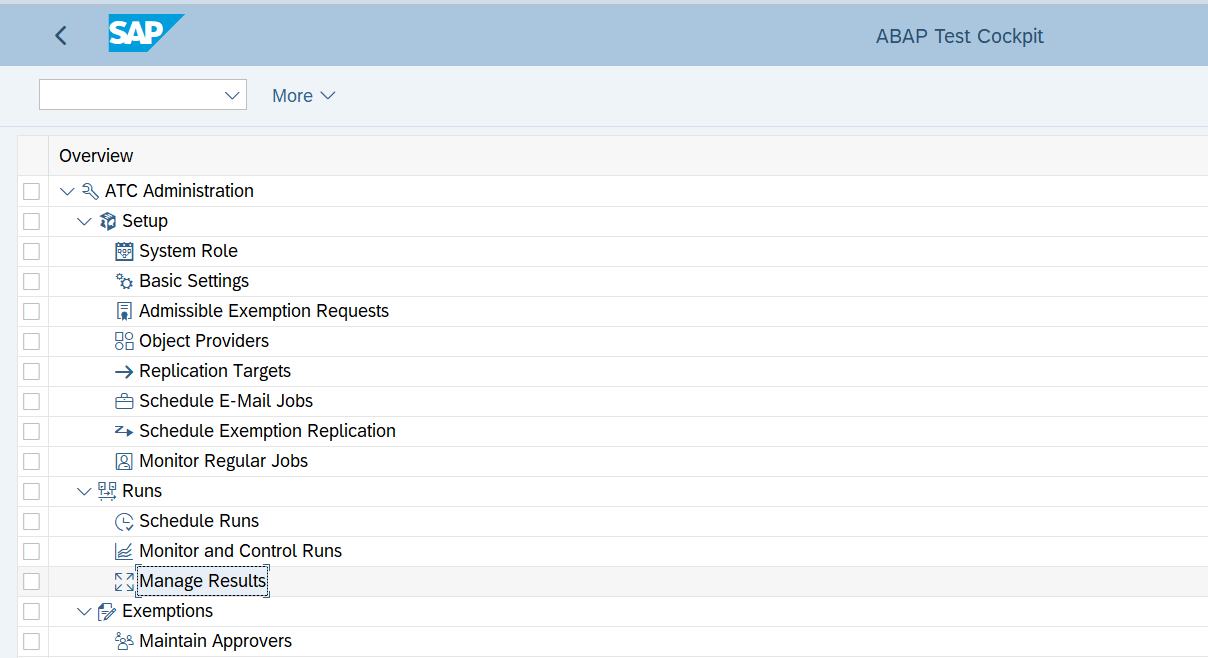

Log in to the SAP system and execute the ATC transaction code. Click on Manage Results to check the ATC results.
![](../__attachments/3314745556/image-20221027-092632.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)
![](../__attachments/3314745556/image-20221027-091019.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)
