CCMS
Data Description
The CCMS event is used in SAP to monitor, control, and configure the SAP system. CCMS stands for Computing Center Management System, and contains a series of pre-packaged metrics which can be alerted on.
Potential Use Cases
This event could be used in the following scenarios:
Chart environment availability over time.
Alert on specific CCMS alert metric values.
Splunk Event

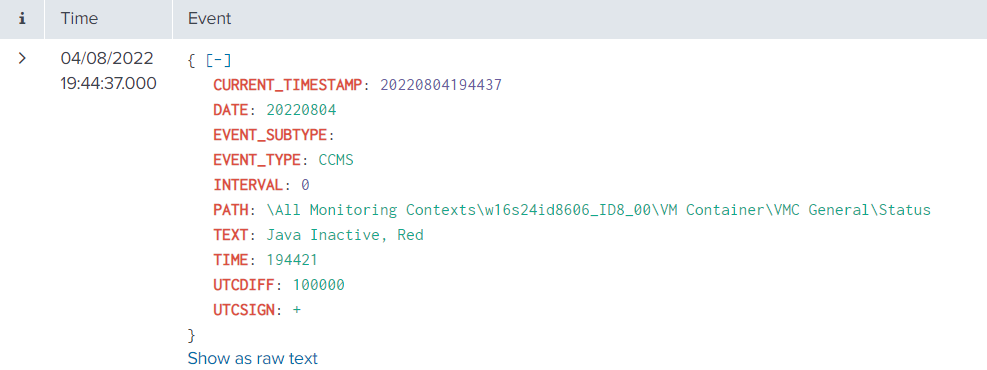

The event will look like this in Splunk:
![](../__attachments/3297738790/image-20220804-194908.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)
SAP Navigation

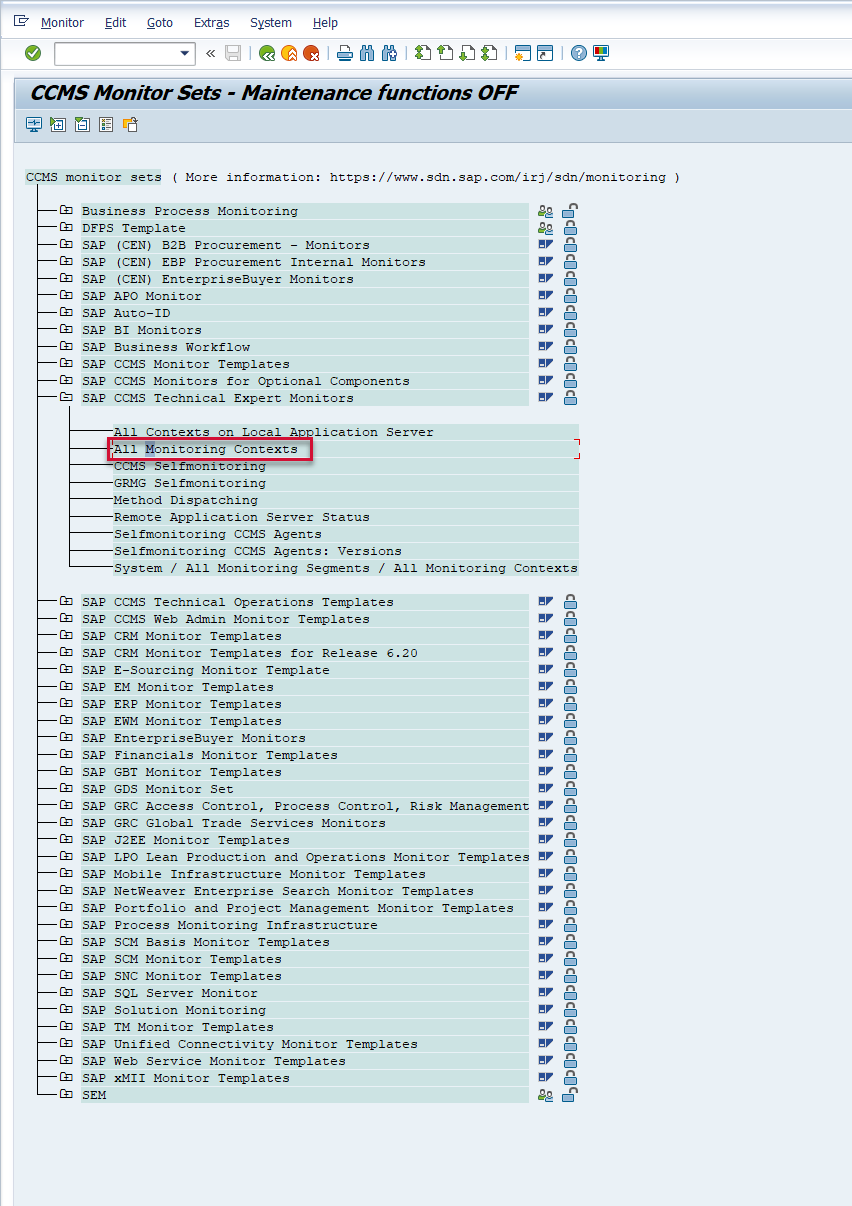

Execute the RZ20 transaction in the SAP system, and double-click on the node of interest:
![](../__attachments/3297738790/image-20220804-195013.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)

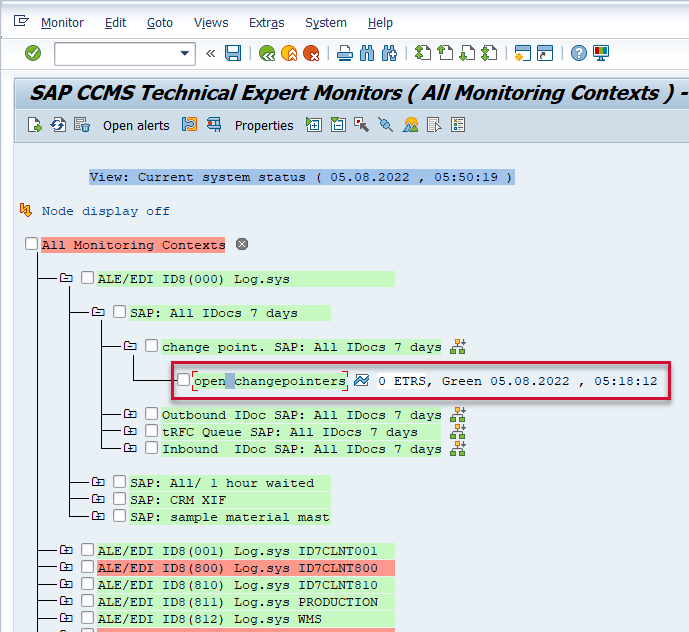

Expand the folder path of interest. The metric and value displayed will match the data that is extracted and sent to Splunk.
![](../__attachments/3297738790/image-20220804-195122.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)
