Configuring a Dynatrace Trace Ingest API Connection in PowerConnect Java
To create a connection to the Dynatrace Trace Ingest API do the following:
Open the PowerConnect Java UI - http(s)://<sap-java-host>:<port>/powerconnect-java/index.html

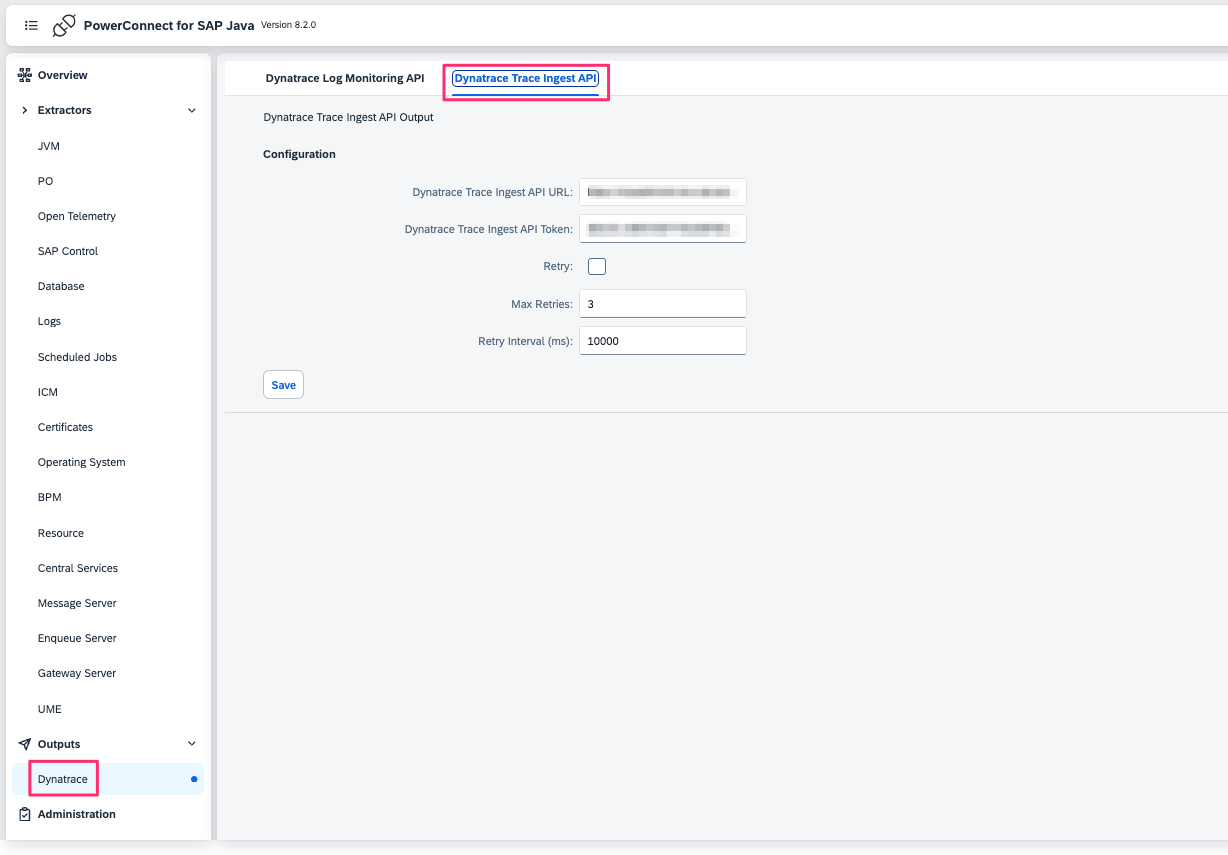

On the menu on the left click Dynatrace → Dynatrace Trace Ingest API under Outputs
![image-20240715-001348.png](../__attachments/3554377858/image-20240715-001348.png?inst-v=ac5eec74-b94c-4536-9f14-31cf6d61e6ba)

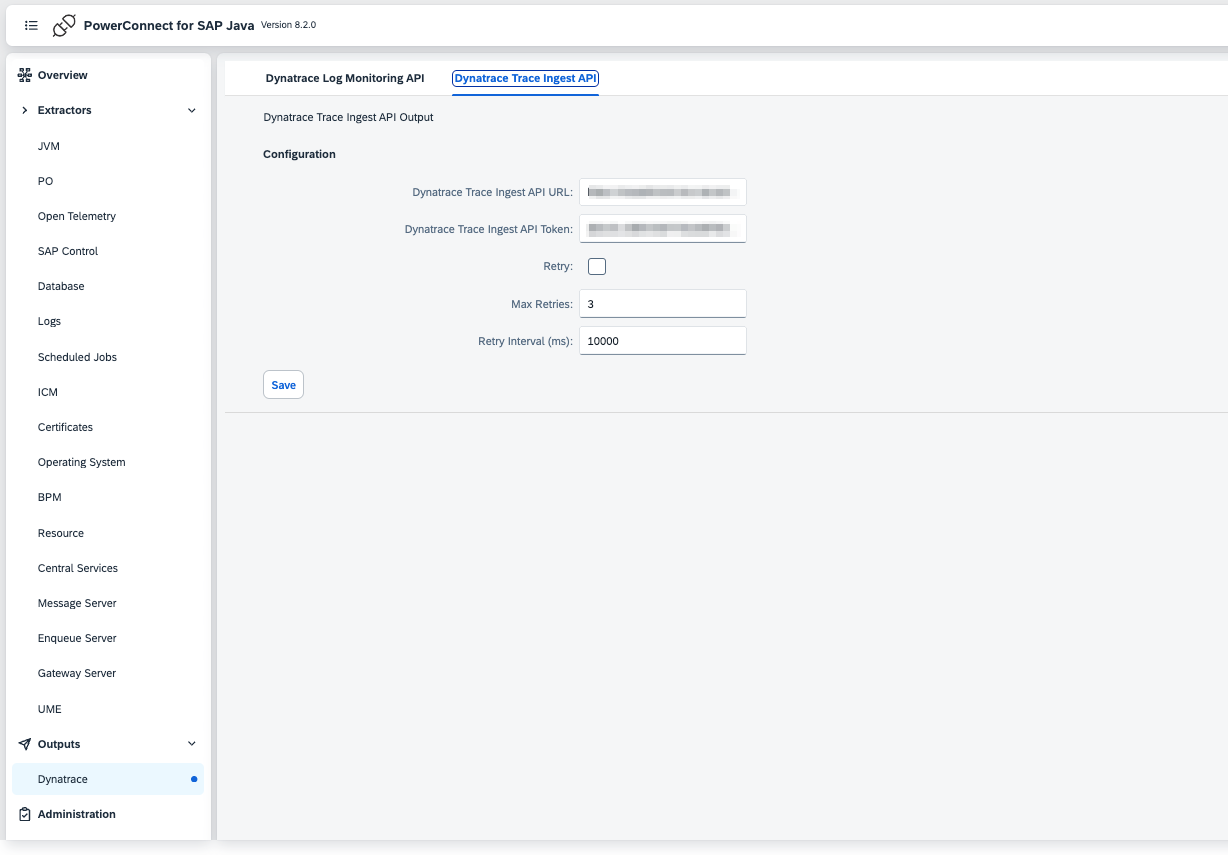

Fill in the details of your Dynatrace Trace Ingest API endpoint:
Configuration | Description | Required | Default Value | Comments |
---|---|---|---|---|
Dynatrace Trace Ingest API URL | Trace Ingest API url | Yes |
| |
Dynatrace Trace Ingest API Token | Trace Ingest API token | Yes |
|
|
Retry | Retry sending data if the Dynatrace endpoint is down | No | No |
|
Max Retries | If retries are enabled defines how many times the Agent will retry before giving up | No | 3 |
|
Retry Interval | Time in milliseconds the Agent will wait between retries | No | 10000 |
|
Click Save

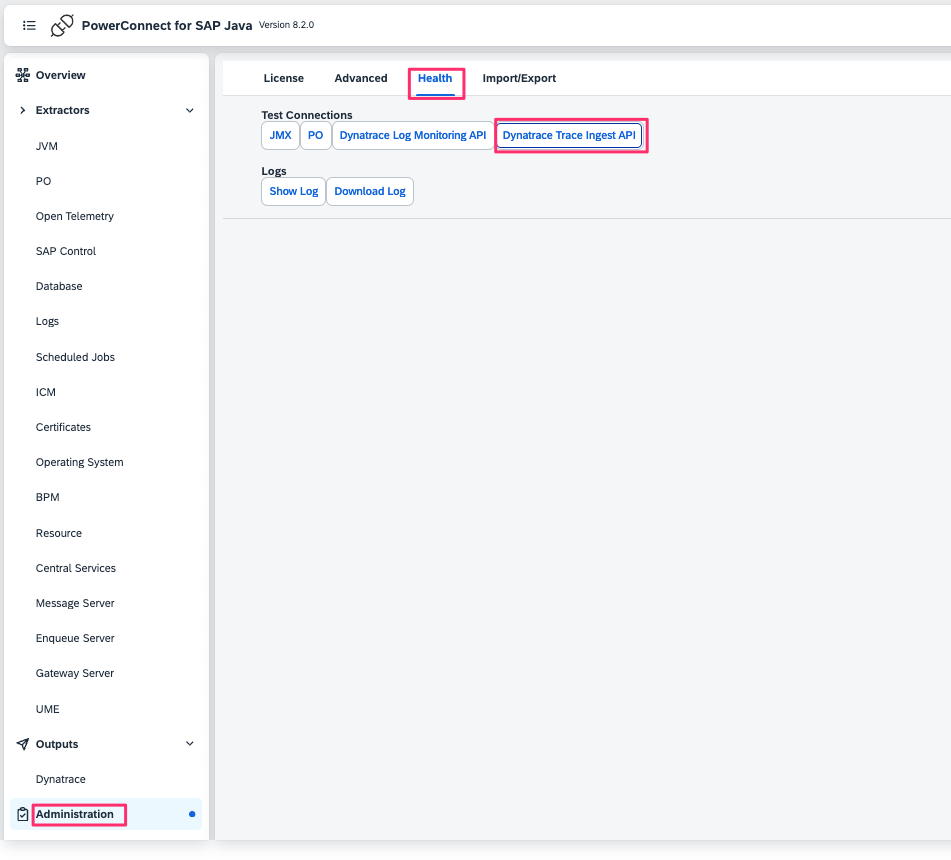

To test the connection click Administration in the menu on the left then click the Health tab

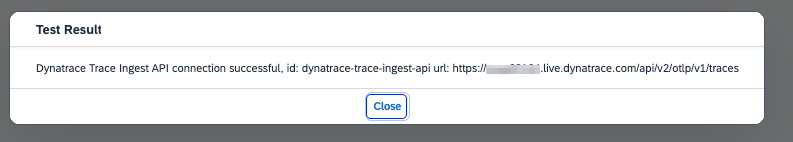

Click the Dynatrace Trace Ingest API button and a message will be displayed showing the result
