DBCO - Secondary DB connections monitor
Data Description
In some cases SAP system might has secondary DB connections maintained in the DBCO tcode. The extractor helps to extract them and perform connection test to ensure the connection is still accessible. The extractor is inactive by default and needs to be activated if needed.
Potential Use Cases
This event could be used for the following scenarios:
Have an overview on secondary DB connections maintained in the system
Alert when some of secondary DB connections are not accessible
Correlate connection accessibility with other processes in the system (depending on where they are used)
Splunk Event

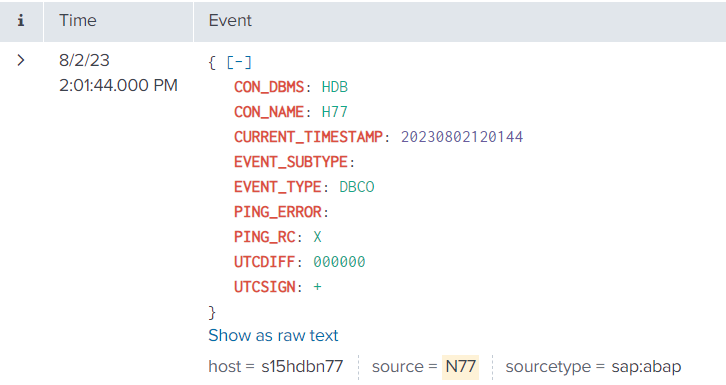

The event will look like this in Splunk:
![](../__attachments/3364552766/image-20230802-120257.png?inst-v=ac5eec74-b94c-4536-9f14-31cf6d61e6ba)
Following fields are used to describe connection health:
PING_RC - contains 'X' when the ping was successful
PING_ERROR - in case the connection ping was not successful, the field contains error description
SAP Navigation

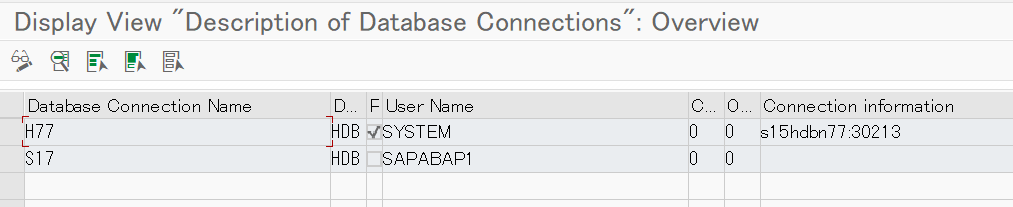

DBCO transaction in SAP:
![](../__attachments/3364552766/image-20230802-120605.png?inst-v=ac5eec74-b94c-4536-9f14-31cf6d61e6ba)
