DSR

Data Description

DSR is used to measure and analyze the performance of the activities of a Java system, similar to the STAD dataset from the ABAP system, and includes performance metrics like CPU, memory consumption, etc.

Potential Use Cases

This event could be used in the following scenarios:

• Identify performance bottlenecks in application call perform.

• Correlate transactions between SAP Java and ABAP solutions using PowerConnect.

• Identify long-running application calls or slow application performance.

PowerConnect Administrative Console Configuration

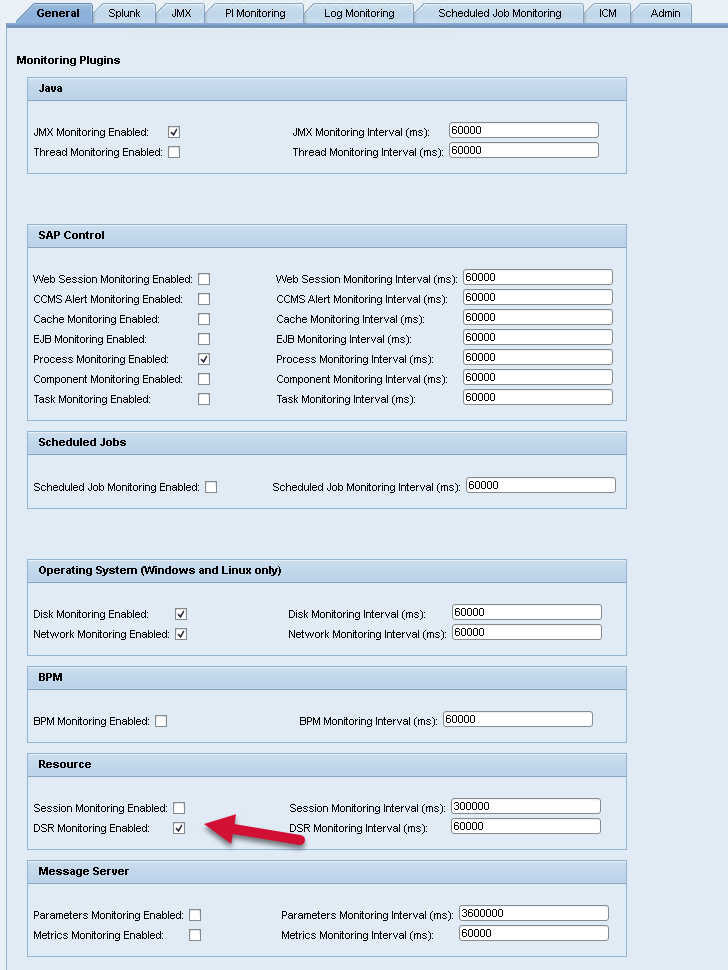

Log into the PowerConnect administrative console via the following URL (http://<serverhost>:<port>/webdynpro/resources/com.powerconnect5/spcj_wd/SapPowerConnectJava#). Then click on the General tab. The screen will look like the screenshot below. Ensure that DSR Monitoring Enabled is selected.

Splunk Event

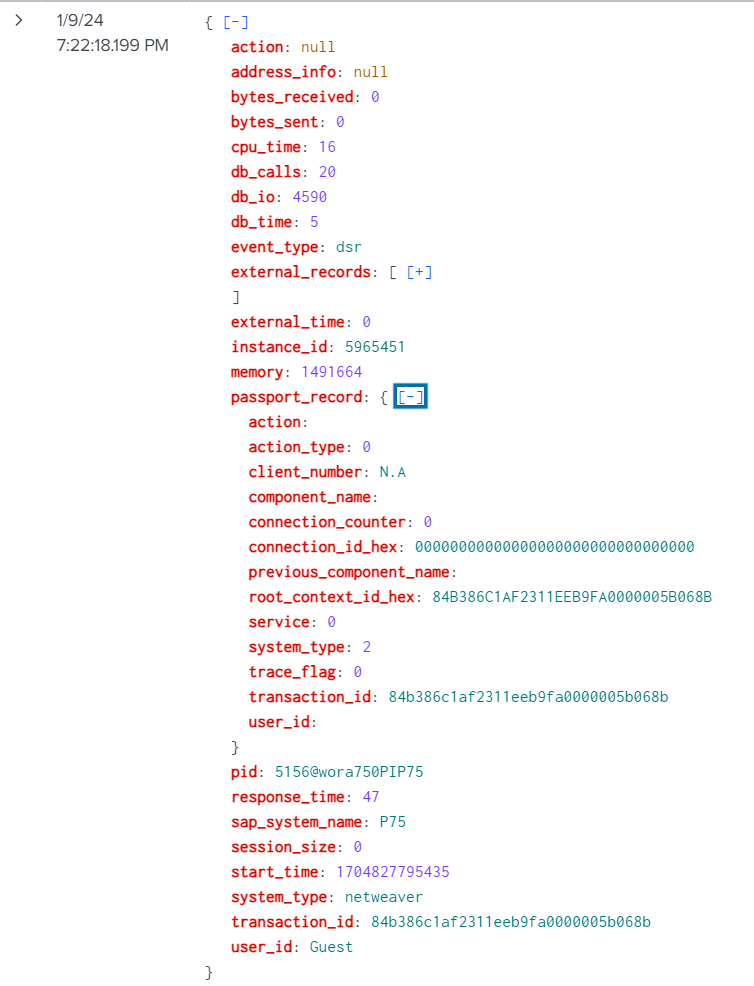

The event will look like this in Splunk:

SAP Navigation

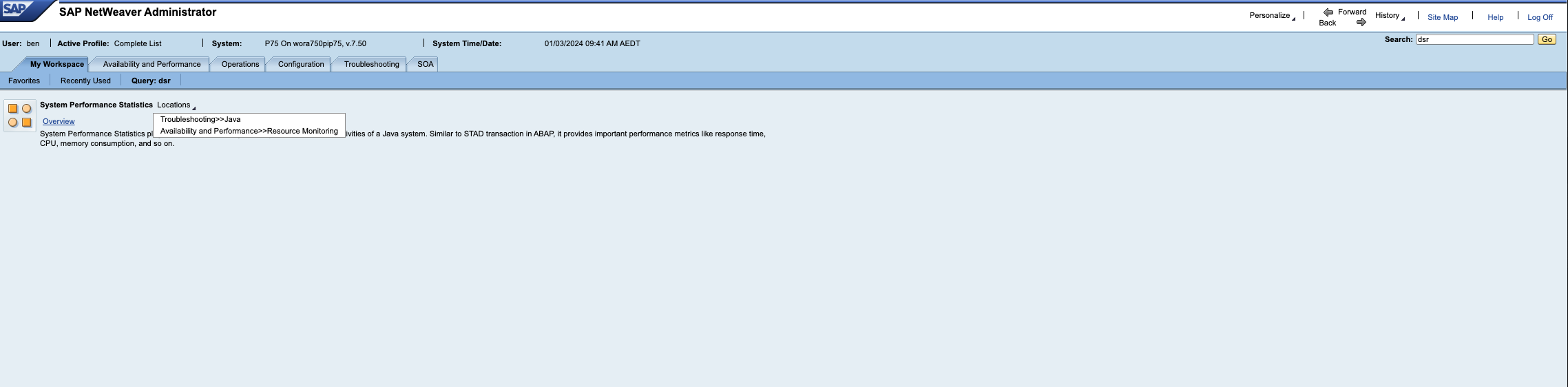

Log into NWA in the Java system (http://<serverhost>:<port>/nwa), and type dsr into the search bar. Click on the Overview button.

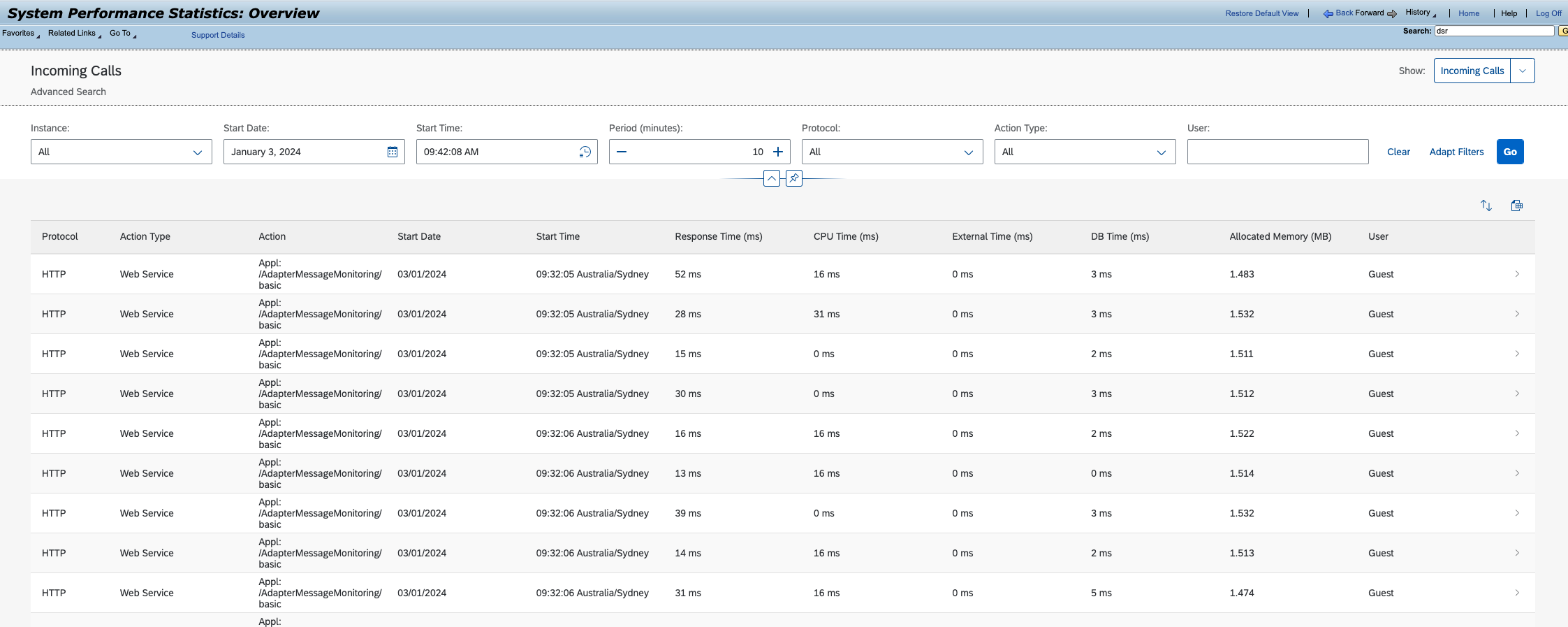

The information displayed on the screen will match what is collected and sent to Splunk.
