Dynatrace OpenTelemetry Metrics Ingest API
Adding a Dynatrace OpenTelemetry Metrics Ingest API output
Login to the PowerConnect Cloud web UI

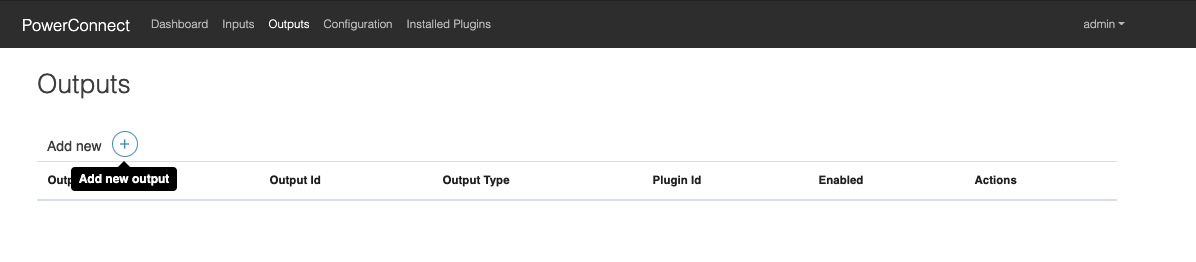

Click the Outputs link in the menu bar
Click the + button to add a new output

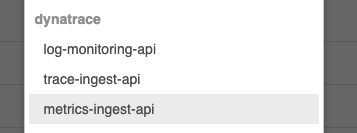

Choose dynatrace → metrics-ingest-api in the dropdown menu that appears

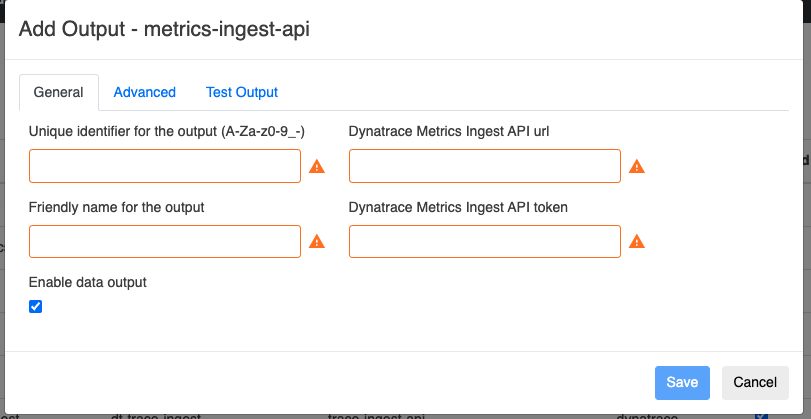

Populate the form with the details of your Dynatrace Metrics Ingest API endpoint
Configuration | Description | Required | Default Value | Comments |
|---|---|---|---|---|
Dynatrace OpenTelemetry Metrics Ingest API URL | OpenTelemetry Metrics Ingest API url | Yes |
| Must use otlp endpoint e.g. https://xxx.live.dynatrace.com/api/v2/otlp/v1/metrics |
Dynatrace Metrics Ingest API Token | OpenTelemetry Metrcis Ingest API token | Yes |
|
|
Batch metrics together before sending to Dynatrace | Batch metrics | No | Yes |
|
Batch size | Max size of the batches | No | 100 |
|
Retry send if error occurs | Retry sending data if the Dynatrace endpoint is down | No | No |
|
Number of times to retry | If retries are enabled defines how many times the Agent will retry before giving up | No | 3 |
|
Backoff interval in seconds (fixed) | Time in seconds the Agent will wait between retries | No | 10 |
|

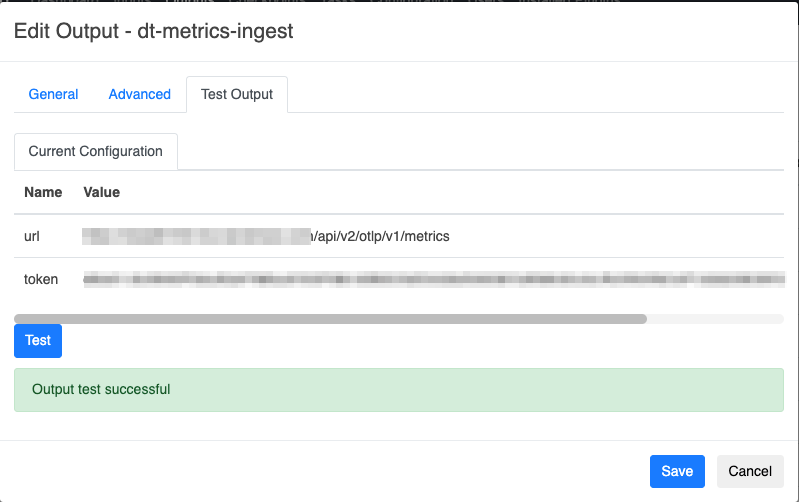

Click Test Output → Test
Make sure the Output test is successful then click the Save button
The output has now been created
