The GW_ERROR_BEP event (corresponding to SAP transaction /IWBEP/ERROR_LOG in SAP Business Suite systems) is used to obtain important detailed context information about the time and location of SAP Gateway backend errors that have occurred at run time.
Potential Use Cases
This event could be used in the following scenarios:
Alert on specific error messages displayed in the error log
Correlate Gateway backend end errors with Gateway frontend errors
Determine error trends over time
Identify precise time and location of errors in source code
Perform root-cause analyses
Reproduce and correct errors

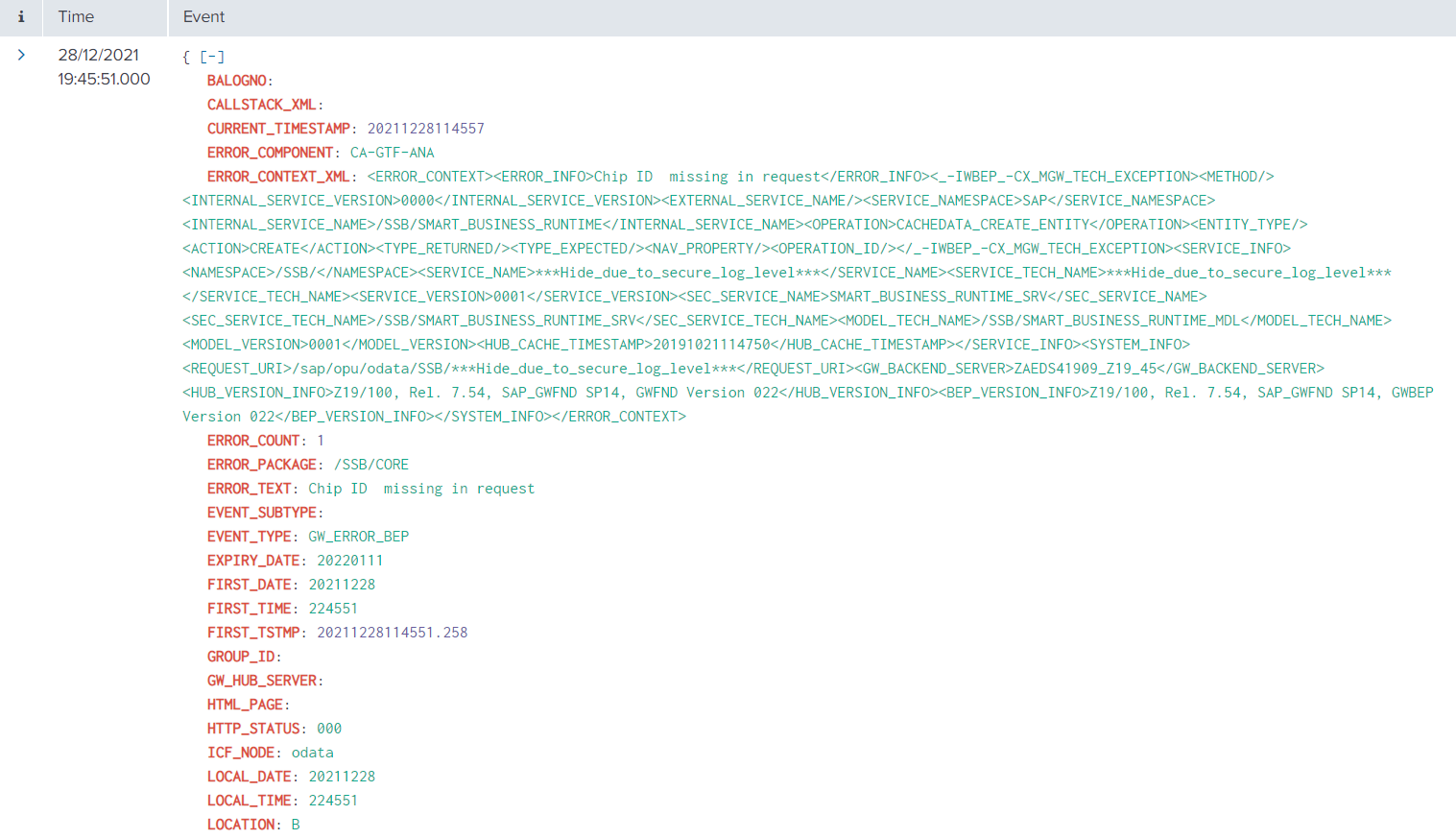

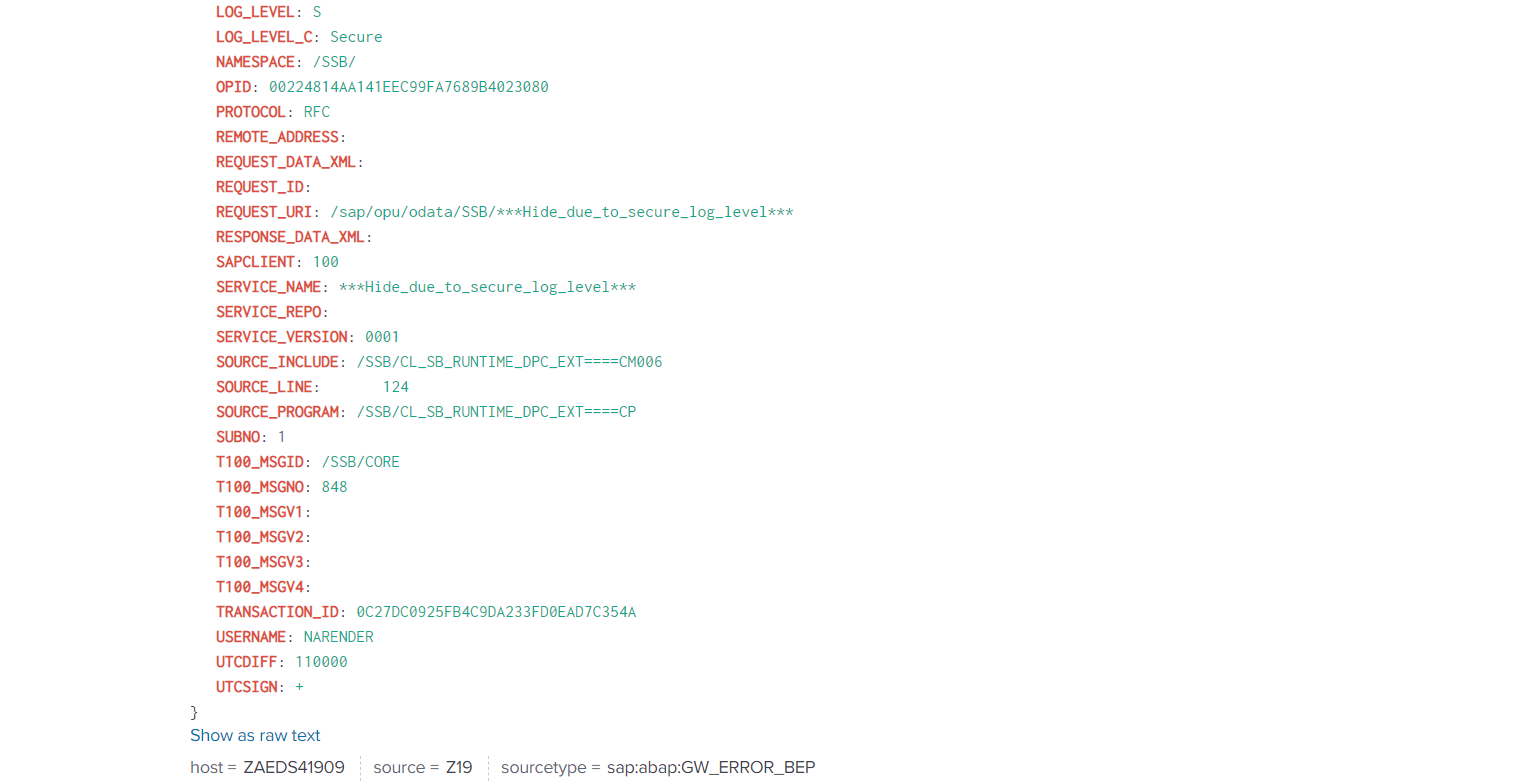

The event will look like this in Splunk:

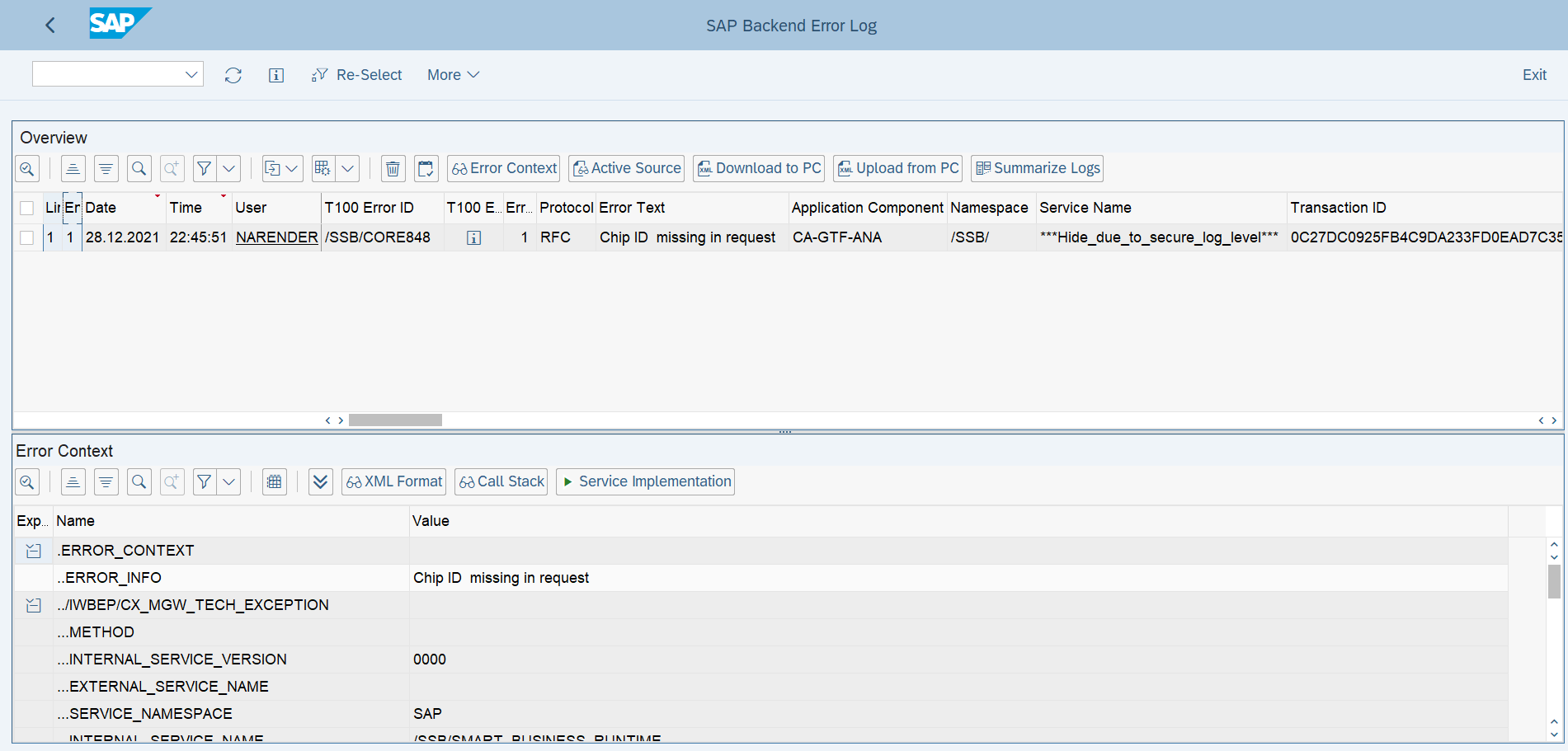

Log in to the SAP system and execute the /IWBEP/ERROR_LOG transaction code. The SAP Gateway backend error logs will be displayed if present.
The Error Log comprises two screen areas:
Overview: All the data of overview screen are available to Splunk
Error Context: The Error Context screen area includes the following functions, which can be executed by choosing the relevant pushbuttons.
Error Context(XML Format)
Display error in the context in XML format.
Display call stack up to the source code line in which the error occurred.
Display request XML that was sent from external consumer. It contains the HTTP request headers and payload.
Display response XML sent from SAP Gateway. It displayed the HTTP response headers and payload.
For Event Type GW_ERROR_FND the above fields in the Error Context section are optional and if activated (using configuration) then are sent to the Splunk system (in XML string).

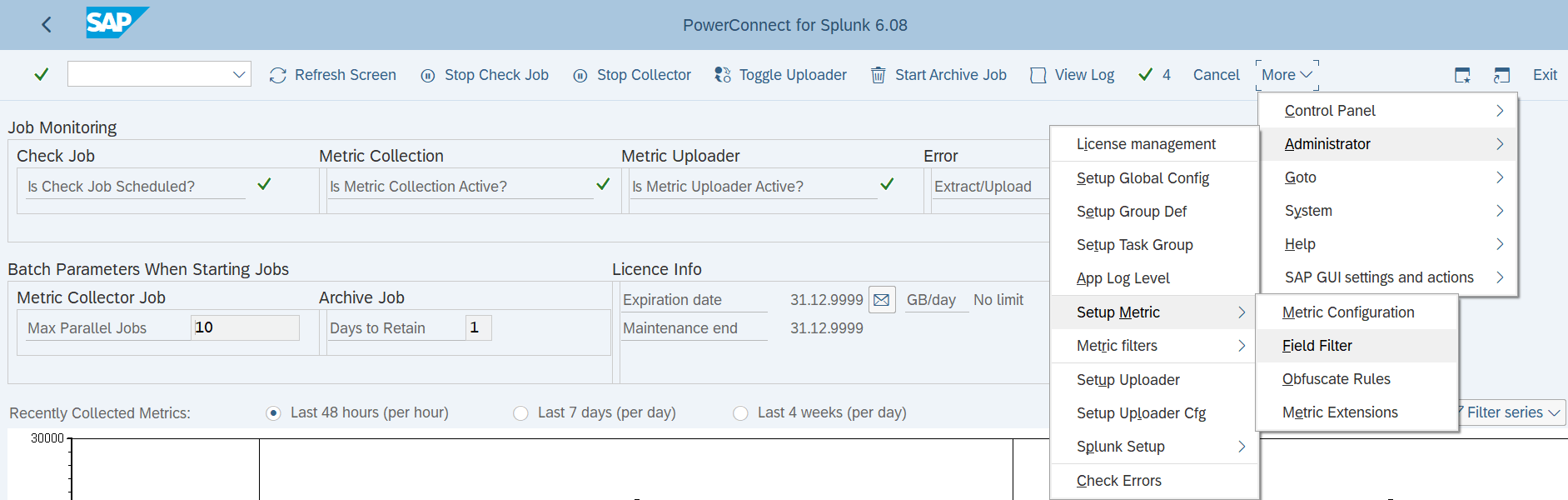

The metric configuration is used to customize a metric event based on requirements. To access the configuration, log into the managed system and execute the /N/BNWVS/MAIN transaction code. Then go to Administrator → Setup Metric → Metric Configuration.

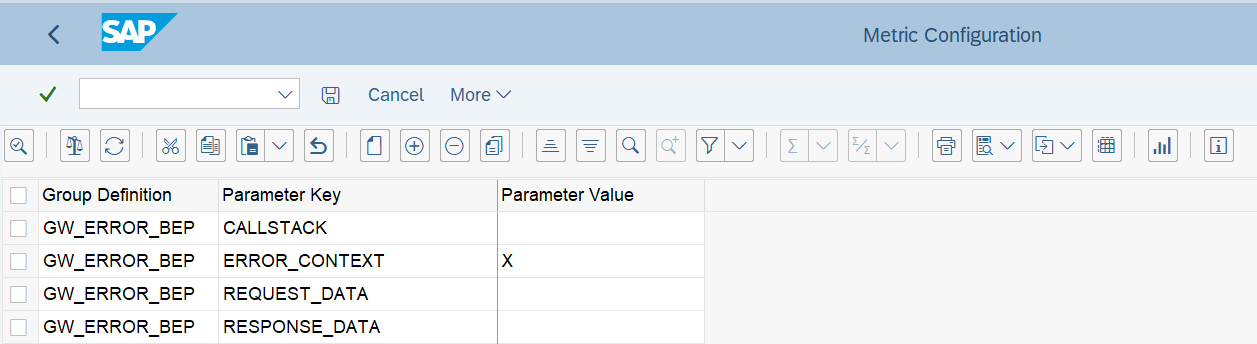

For event type GW_ERRPR_BEP, the value of the ERROR_CONTEXT field is set to be extracted to send it to Splunk based on the below configuration. To extract the other 3 fields’ information, put ‘Parameter Value’ as X.
Unit of Measure
Application log: log number
Call Stack up to the source code line in which the error occurred
The date time stamp when the information was collected
Error Context: complete overview of context in which error occurred including technical attributes such as service name, request URI, SAP Business Suite system alias, and RFC destination
Not Applicable for this Event Type (always blank)
Local Date of First Error
Local Time of First Error
UTC Time Stamp in Long Form
OData V4 Service Group ID
SAP Gateway Hub Server
HTML Page (HTTP Client only)
HTTP Status Code
Error Log Level
Error Log Level Text
Operation ID (Identifier within the Error Log)
Request Data (Request XML that was sent from external consumer)
Request ID (Identifier sent from consumer to SAP Gateway)
Response data (Response XML sent from SAP Gateway)
OData V4 Service Repository
The UTC OFFSSET in HHMMSS that the data was collected in
The UTC positive or negative OFFSET indicator. Positive (+) means add UTCDIFF to find the time zone of the data, negative (-) means subtract the UTCDIFF to find the time zone adjusted date time the data was collected in.
+ | -
