JMX

Data Description

The PowerConnect application is able to extract data from over two thousand JMX Beans in the SAP system. These JMX Beans can be leveraged for SAP performance use cases.

Potential Use Cases

This event could be used in the following scenarios:

Count of heap memory dumps over time
Visualize system CPU architecture and Java version
Alert on garbage collection

PowerConnect Administrative Console Configuration

Important: None of the configurations below requires a restart of the PowerConnect agent.

There are two methods that can be used to configure the list of enabled JMX Beans in the PowerConnect Java application. Both methods are documented below:

Configuring via User Interface

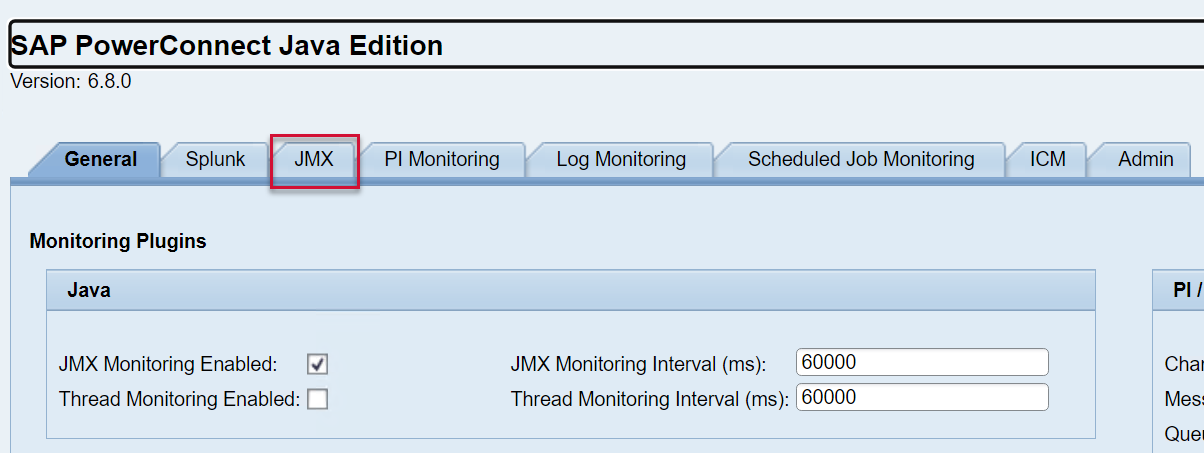

Log into the PowerConnect administrative console via the following URL (http://<serverhost>:<port>/webdynpro/resources/com.powerconnect5/spcj_wd/SapPowerConnectJava#). Then click on the JMX tab.

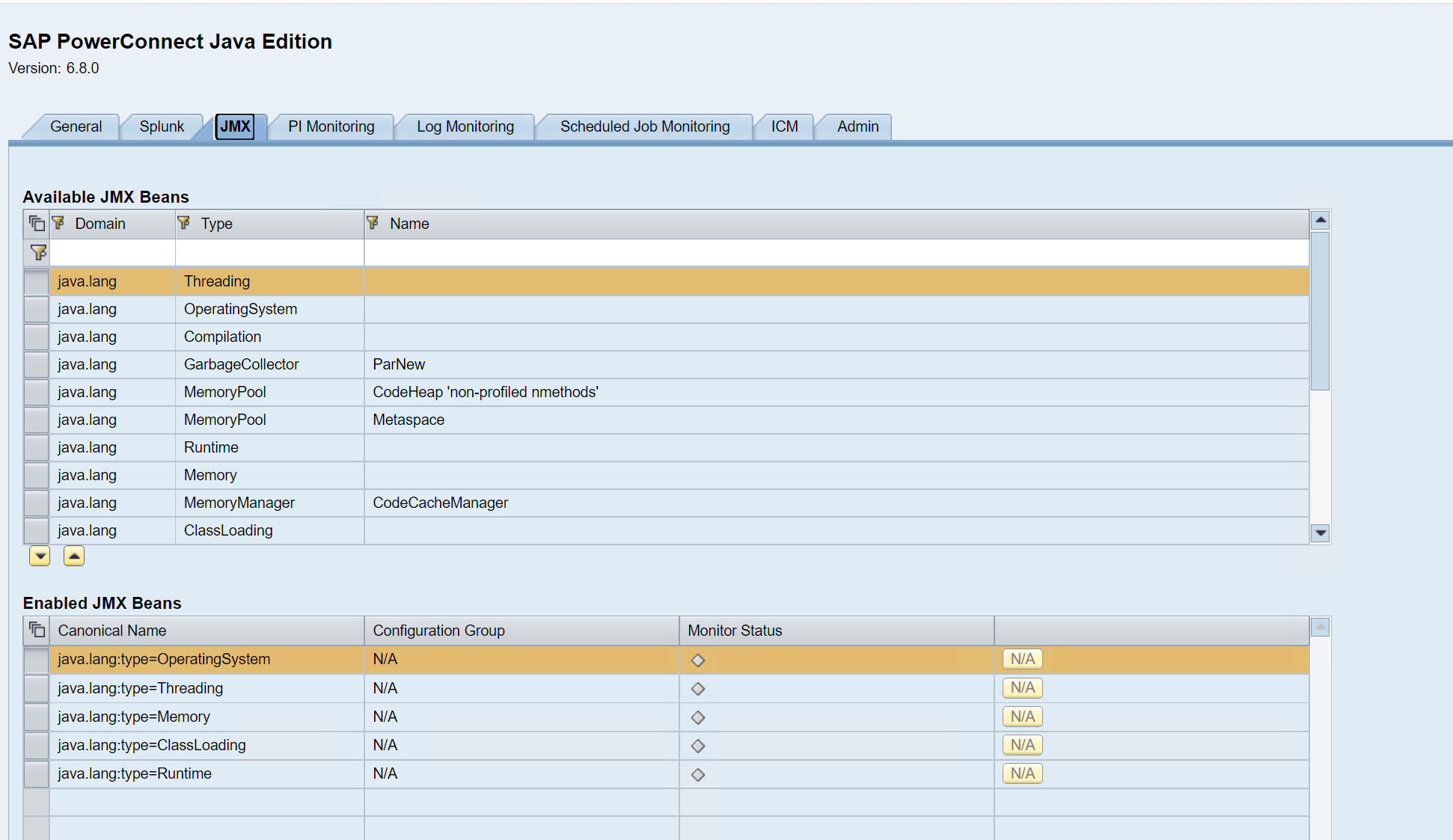

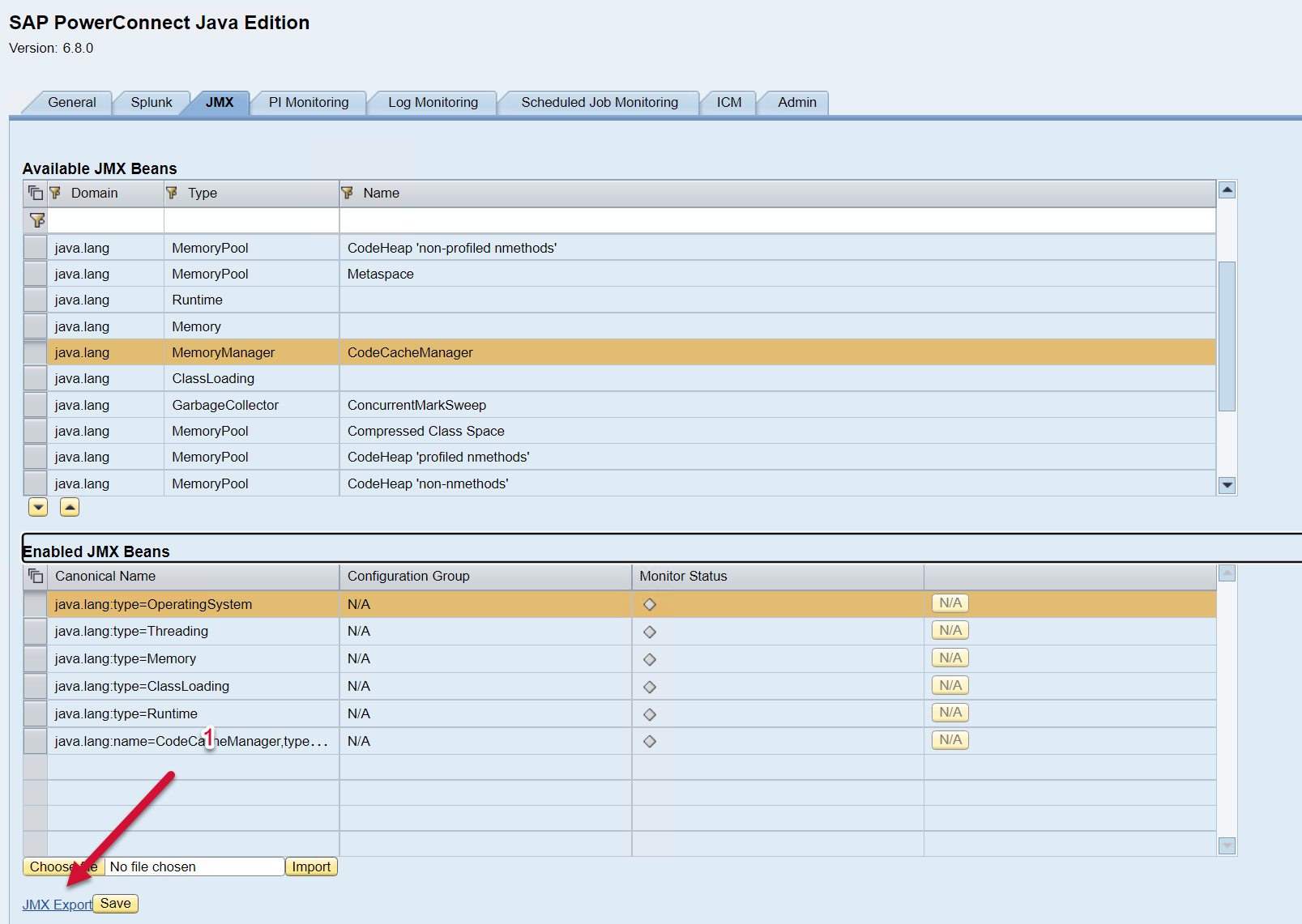

The list of available JMX Beans is displayed on the top half of the screen, and the bottom half of the screen shows the list of JMX Beans enabled.

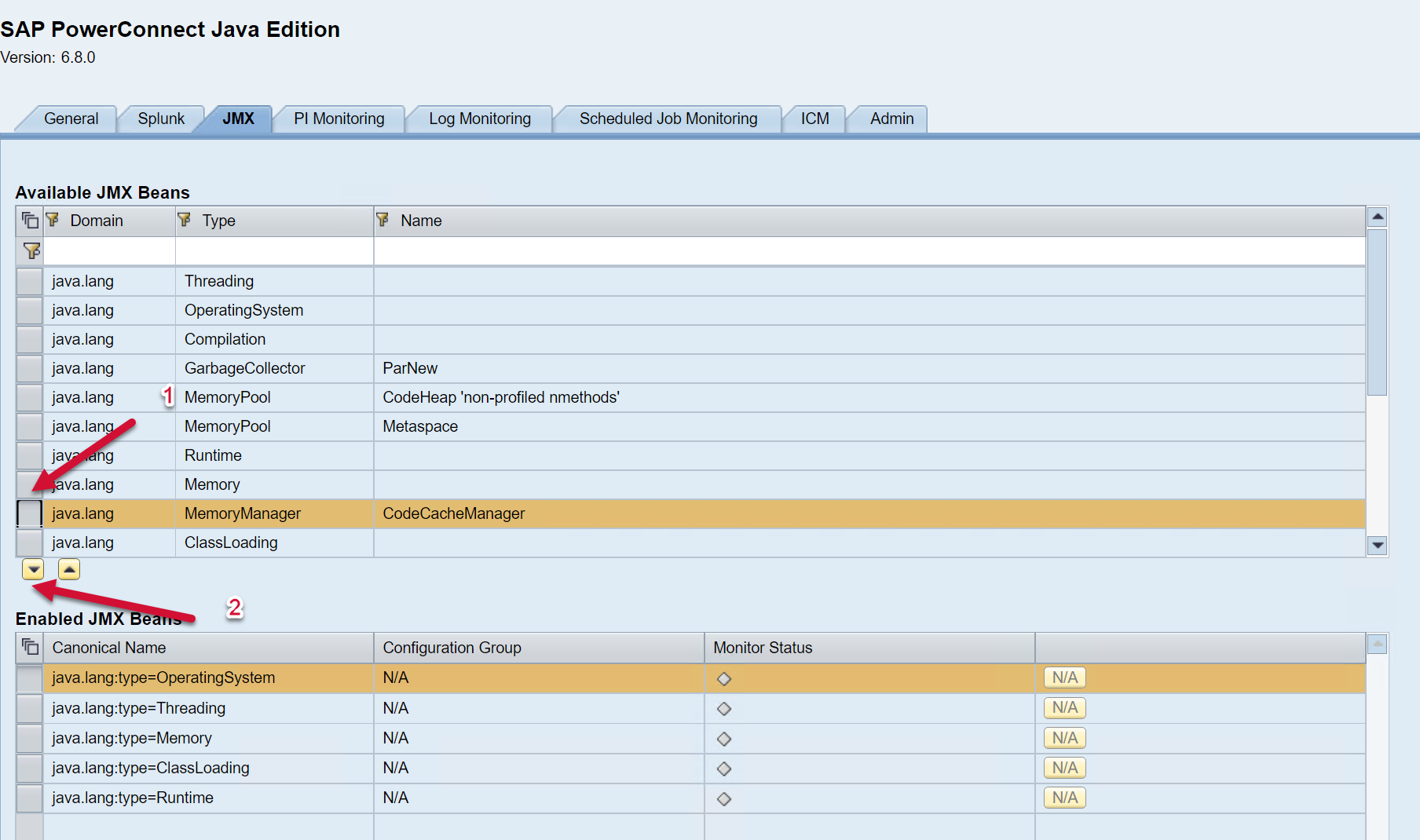

To enable a new JMX Bean, click on the JMX Bean of interest, and then add it to the list below using the arrow button.

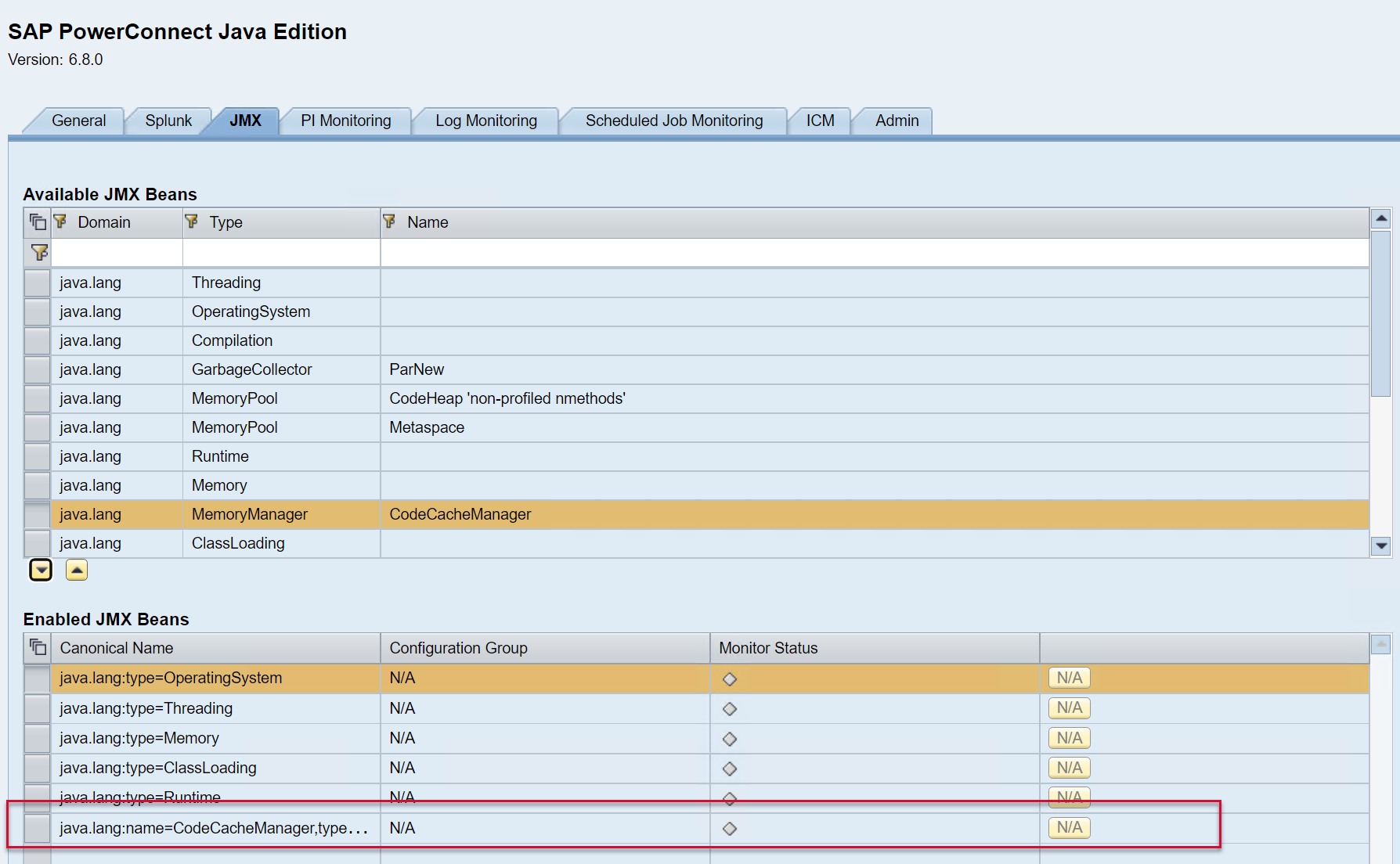

The JMX Beans will then be added to the list of Enabled JMX beans below.

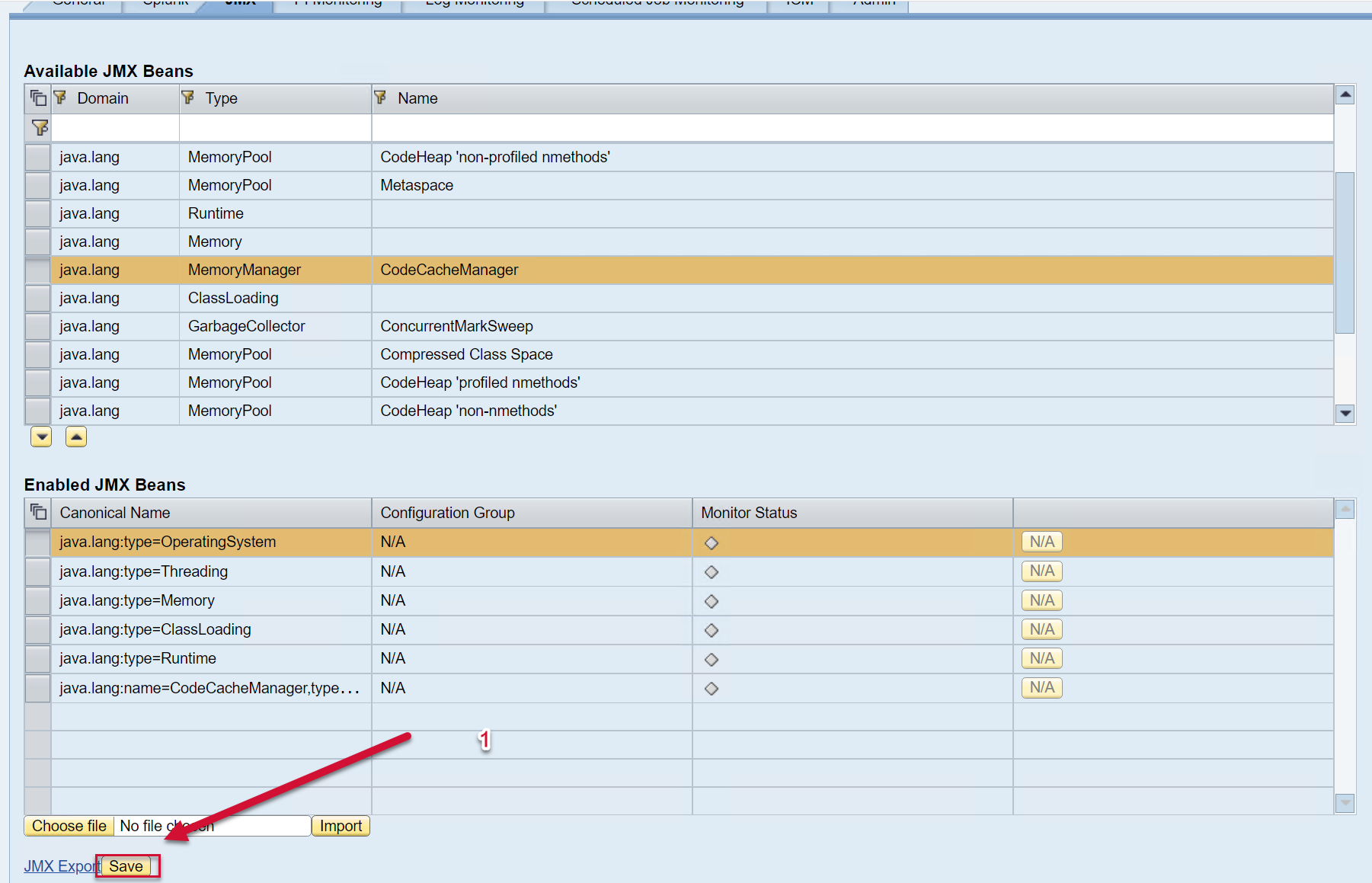

Then Save using the button at the bottom of the screen.

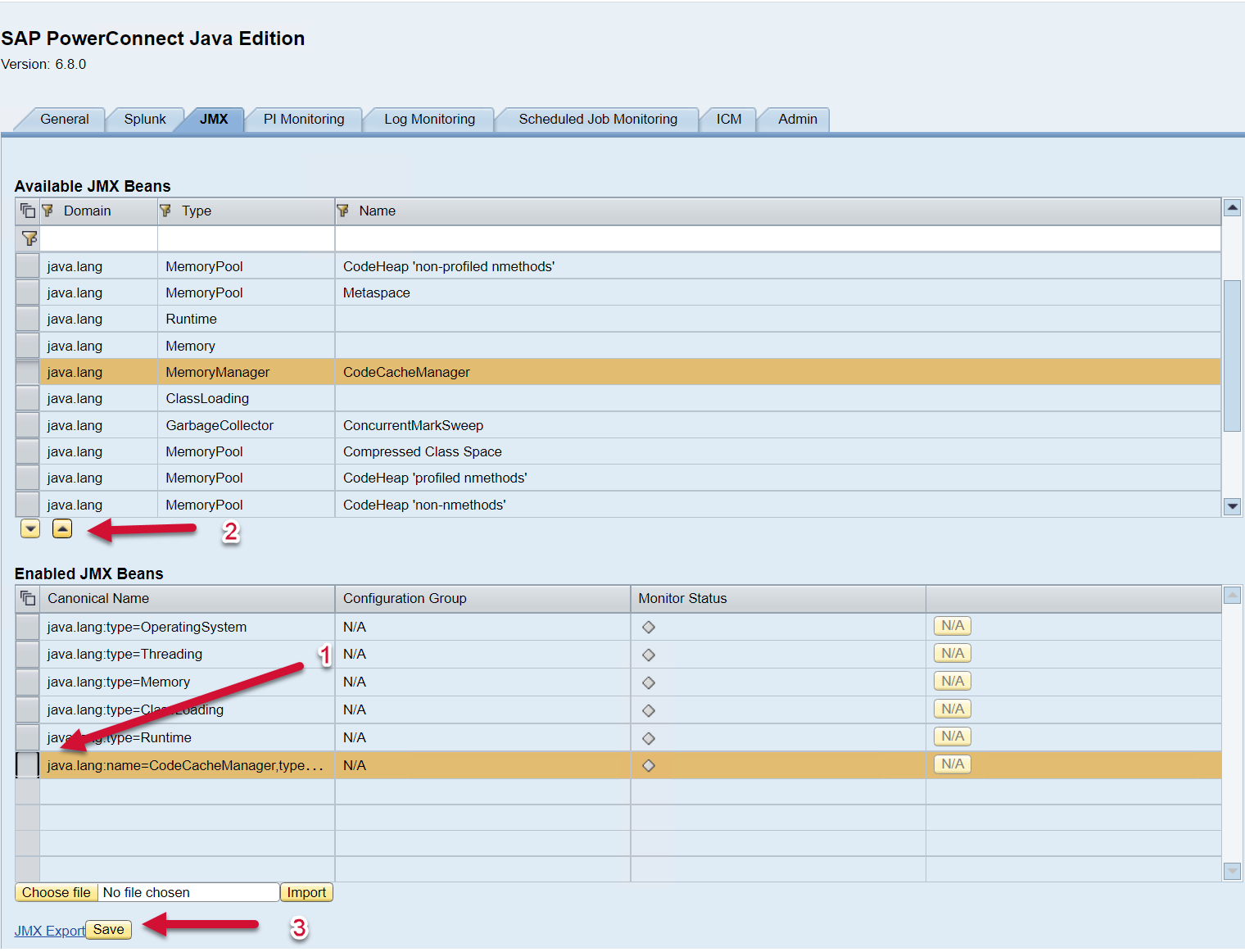

To disable a JMX Bean click on the respective line in the “Enabled JMX Beans” section and move it to the top. Save the configuration afterwards.

Configuring Using XML File

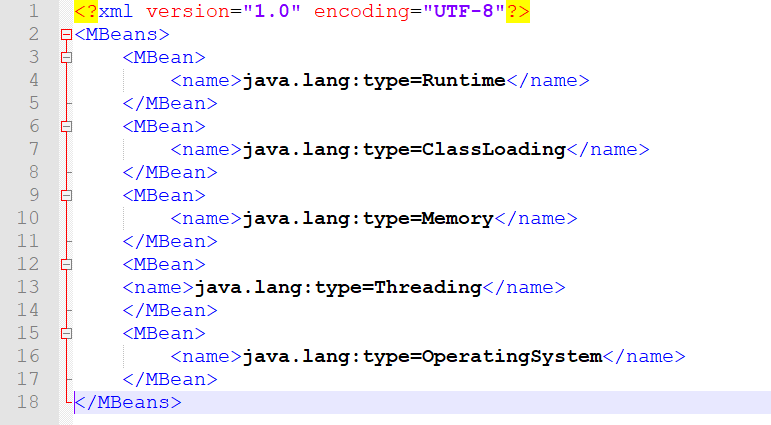

The enabled JMX Beans can also be exported and imported using an XML configuration file. The schema of the XML file is very simple – as an example:

You can edit this file to include the JMX Beans that you would like to see in Splunk. To access the list of available JMX Beans and XML configuration, please log into the PowerConnect administrative console via the following URL (http://<serverhost>:<port>/webdynpro/resources/com.powerconnect5/spcj_wd/SapPowerConnectJava#). Then click on the JMX tab.

The list of available JMX Beans is displayed on the top half of the screen, and the bottom half of the screen shows the list of JMX Beans enabled. To export the JMX config click on the JMX Export button on the bottom of the screen.

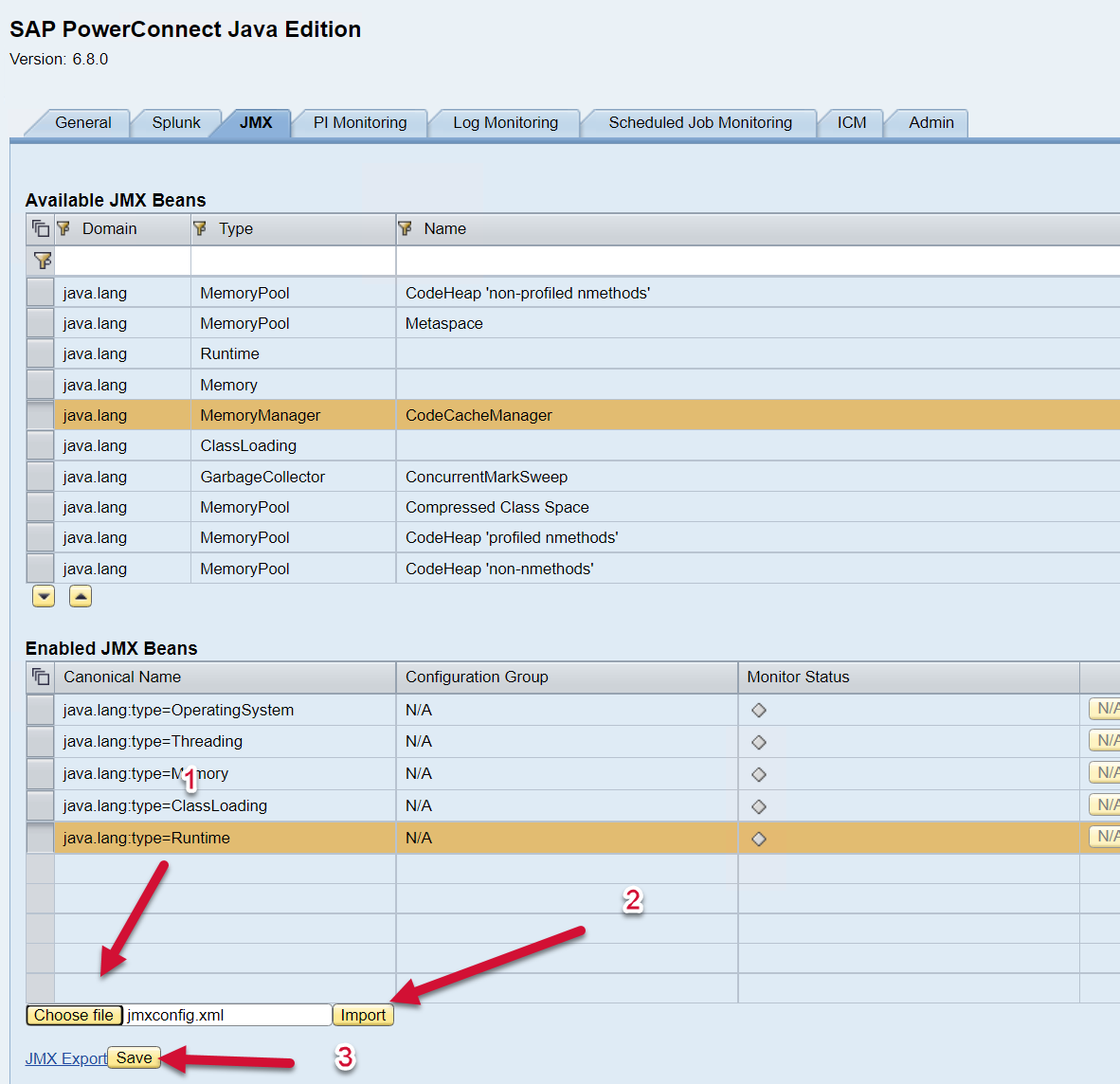

Once the XML file has been exported, modify as desired. Once the XML file has been edited as desired, you can import the configuration by selecting the file using the “Choose file” button, find the XML file on your computer/server, and then select the Import button. Save.

You will see a Popup Window display the message “Successfully imported JMX Configuration” and the Enabled JMX Beans table should be automatically updated to reflect the newly applied configuration.

JMX Bean Reference

Here are some useful MBeans with their fields and associated descriptions:

Name	Field	Description
java.lang:type=OperatingSystem	Arch	System cpu architecture
	AvailableProcessors	Number of cpu cores
	FreePhysicalMemorySize	Free physical RAM on the host system
	CommittedVirtualMemorySize	Used virtual memory
	FreeSwapSpaceSize	Free swap space
	MaxFileDescriptorCount	Maximum number of file descriptors available
	Name	Operating System name
	ObjectName	MBean name
	OpenFileDescriptorCount	Used file descriptors
	ProcessCpuLoad	Cpu load of the Java process
	ProcessCpuTime	Cpu time of the Java proces
	SystemCpuLoad	Cpu load of the host system
	SystemLoadAverage	Cpu load average of the host system
	TotalPhysicalMemorySize	Total physical RAM available on the host system
	Version	Operating System version
java.lang:type=MemoryPool,name=*	Name	Memory Pool Name
	ObjectName	MBean name
	Usage.init	Memory pool initial size
	Usage.committed	Memory pool commit size
	Usage.used	Memory pool used size
	Usage.max	Memory pool maximum size
	Type	Type of memory that the pool uses e.g. HEAP or NON_HEAP
java.lang:type=Compilation	Name	Compiler name
	TotalCompilationTime	The accumulated time the Java process has spent doing JIT compilation (milliseconds)
java.lang:type=GarbageCollector,name=*	Name	Type of Garbage Collector configured e.g. Concurrent Mark Sweep
	CollectionCount	Number of times the Garbage Collector has run since the Java process was started
	CollectionTime	The accumulated time the Garbage Collector has run
	LastGCInfo.GcThreadCount	Number of threads used to run the Garbage Collector
	LastGCInfo.duration	How long the last Garbage Collector run took
	LastGCInfo.startTime	Milliseconds since Java process was launched
	LastGCInfo.endTime	Milliseconds since Java process was launched
	LastGCInfo.memoryUsageBeforeGc	Information about the committed, initial, max and used memory before the Garbage Collection event
	LastGCInfo.memoryUsageAfterGc	Information about the committed, initial, max and used memory after the Garbage Collection event
java.lang:type=Runtime	Name	Process ID of the Java Process
	BootClassPath	Boot Classpath of the Java process
	ClassPath	Classpath of the Java process
	InputArguments	Array of arguments with which the Java process was started
	SpecVersion	Java version
	StartTime	Time in Epoch format the Java process was started
	Uptime	The number of milliseconds the Java process has been running
	SystemProperties	Array of system properties with which the Java process was started
java.lang:type=Threading	DaemonThreadCount	Number of daemon threads running
	ThreadCount	Number of threads running currently
	PeakThreadCount	Maximum number of threads running since the Java Process was started
	TotalStartedThreadCount	Total number of threads started since the Java Process was started

Splunk Event

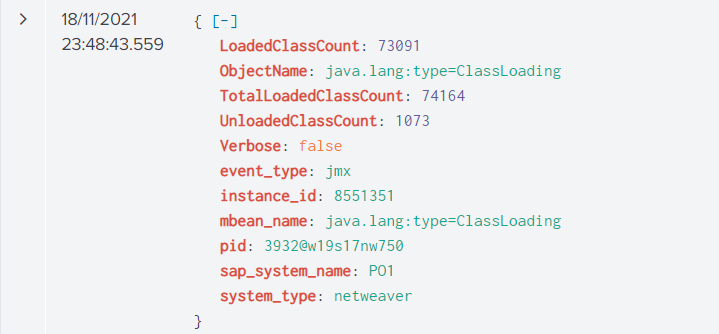

Please note the fields displayed will vary depending on which Java MBean is selected. The event will look like this in Splunk:
