KB 118 - Remove PowerConnect Extractor
KB 118 (ABAP) - Remove PowerConnect Extractor
Category: Information | Priority: Normal |
---|---|
Platform: ABAP | Version: 1 from 23.03.2021 |
Description
There may be some instances in which you may need to remove a PowerConnect extractor from the PowerConnect administrative console in the ABAP system. To remove an extractor from the PowerConnect configuration please follow the steps below:
Log into the system where the PowerConnect application is installed. Execute the /n/bnwvs/main transaction, and click on the buttons below to stop the PowerConnect batch jobs
![](../__attachments/3177709627/image-20210720-173307.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)

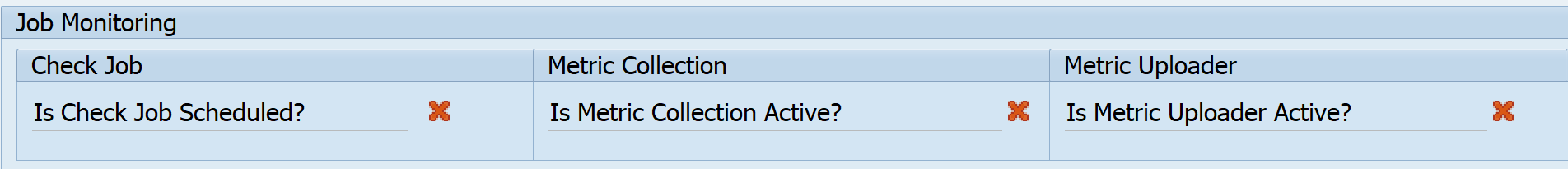

Confirm the batch jobs have stopped running. The PowerConnect administrative console should look like this.
![](../__attachments/3177709627/image-20210708-145121.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)

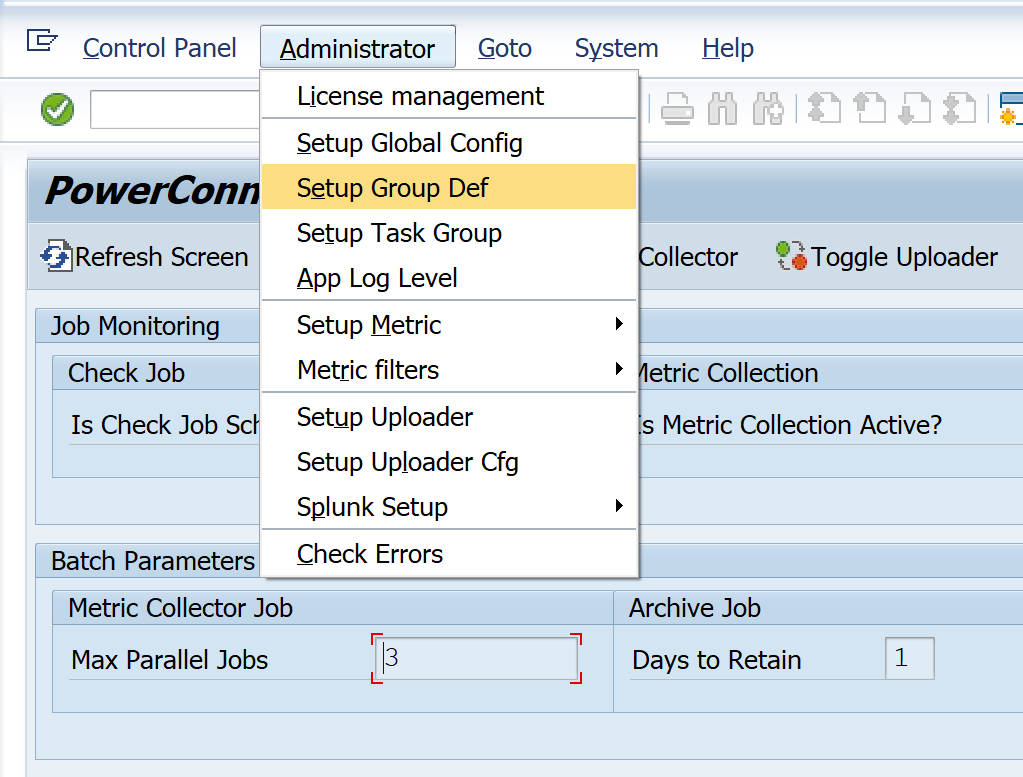

Then go to Administrator → Setup Group Def.
![](../__attachments/3177709627/image-20210720-174553.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)

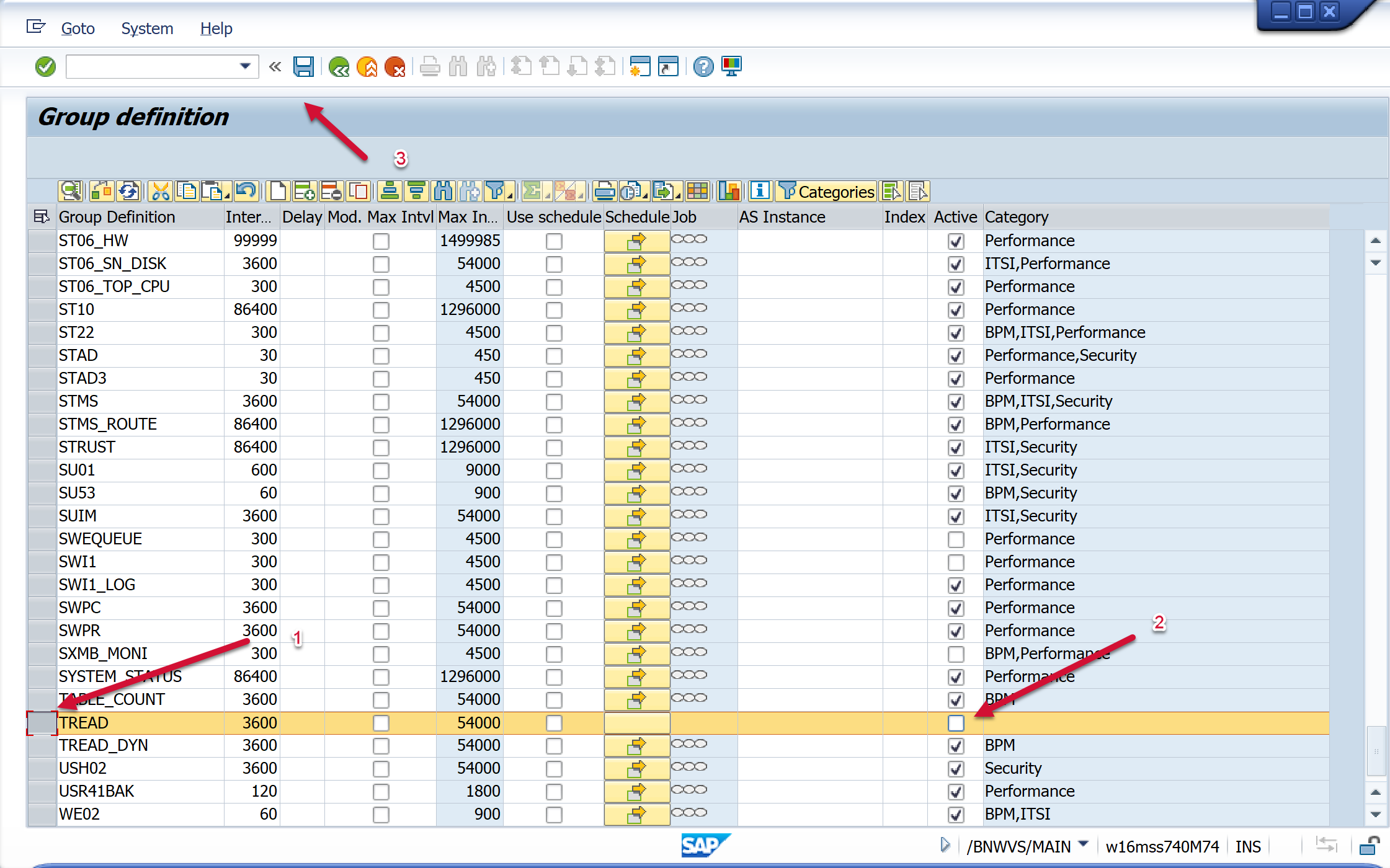

Then go to the extractor that you would like to remove from the configuration. Highlight the row, and select the Active checkbox, so that it is empty. Save.
![](../__attachments/3177709627/image-20210722-162421.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)

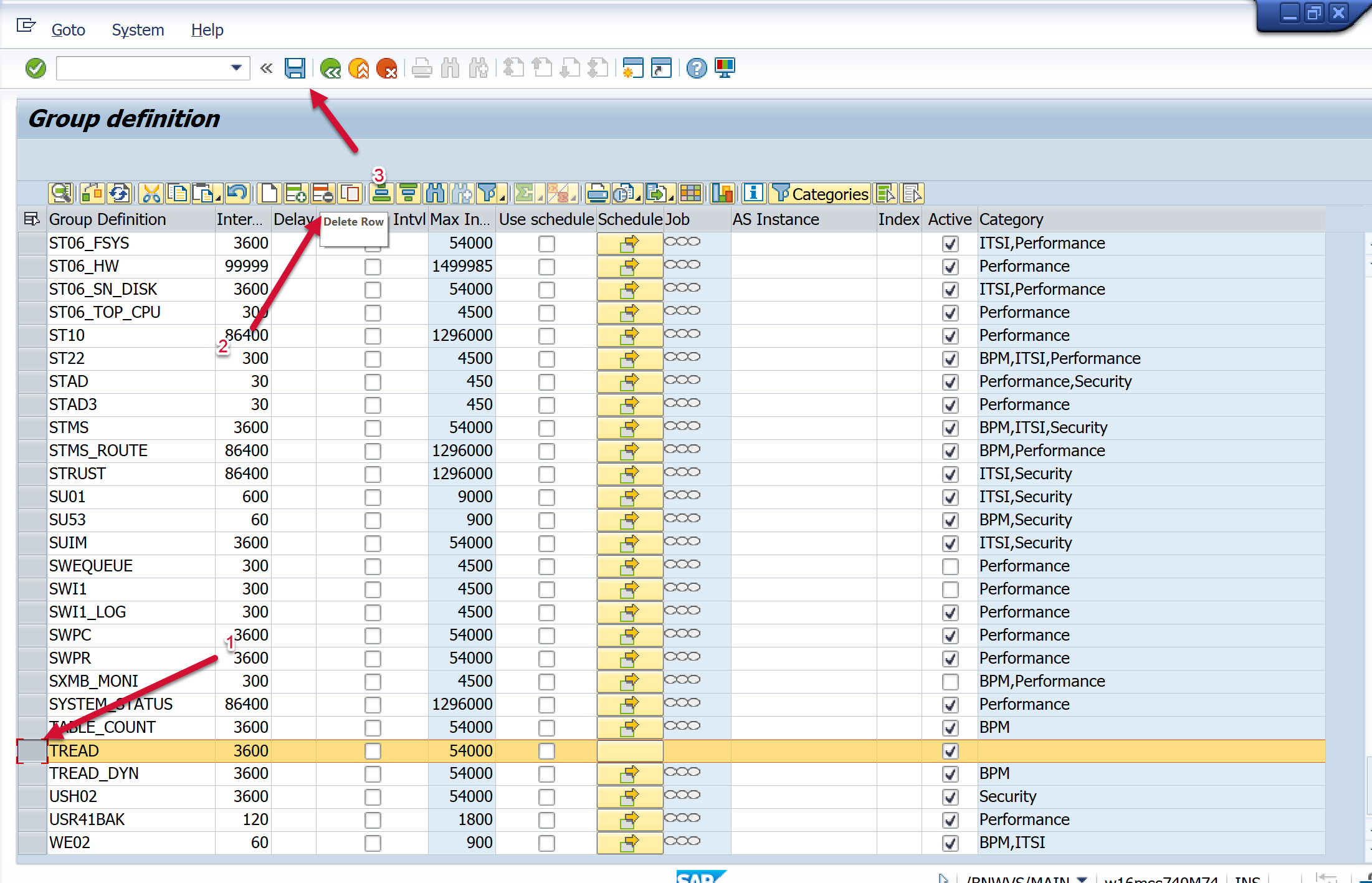

Then once again go to the extractor that you would like to remove from the configuration. Highlight the row, and select the Delete Row button. Save.
![](../__attachments/3177709627/image-20210720-174516.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)

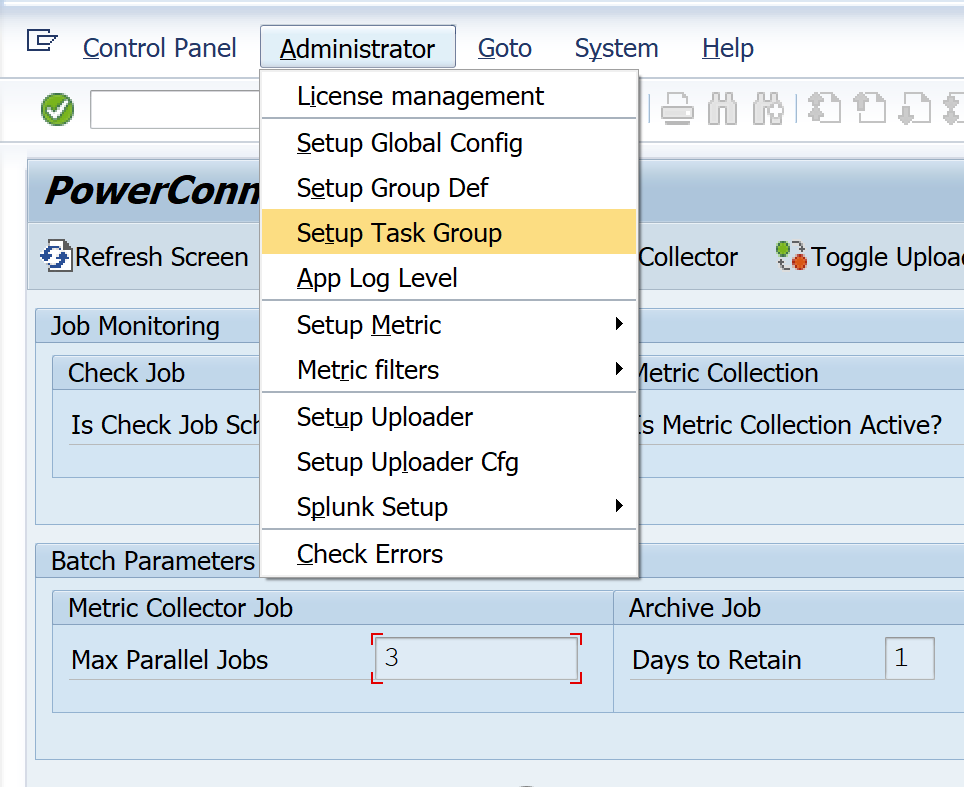

Return to the home page of the PowerConnect administrative console. Then go to Administrator → Setup Task Group.
![](../__attachments/3177709627/image-20210720-174610.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)

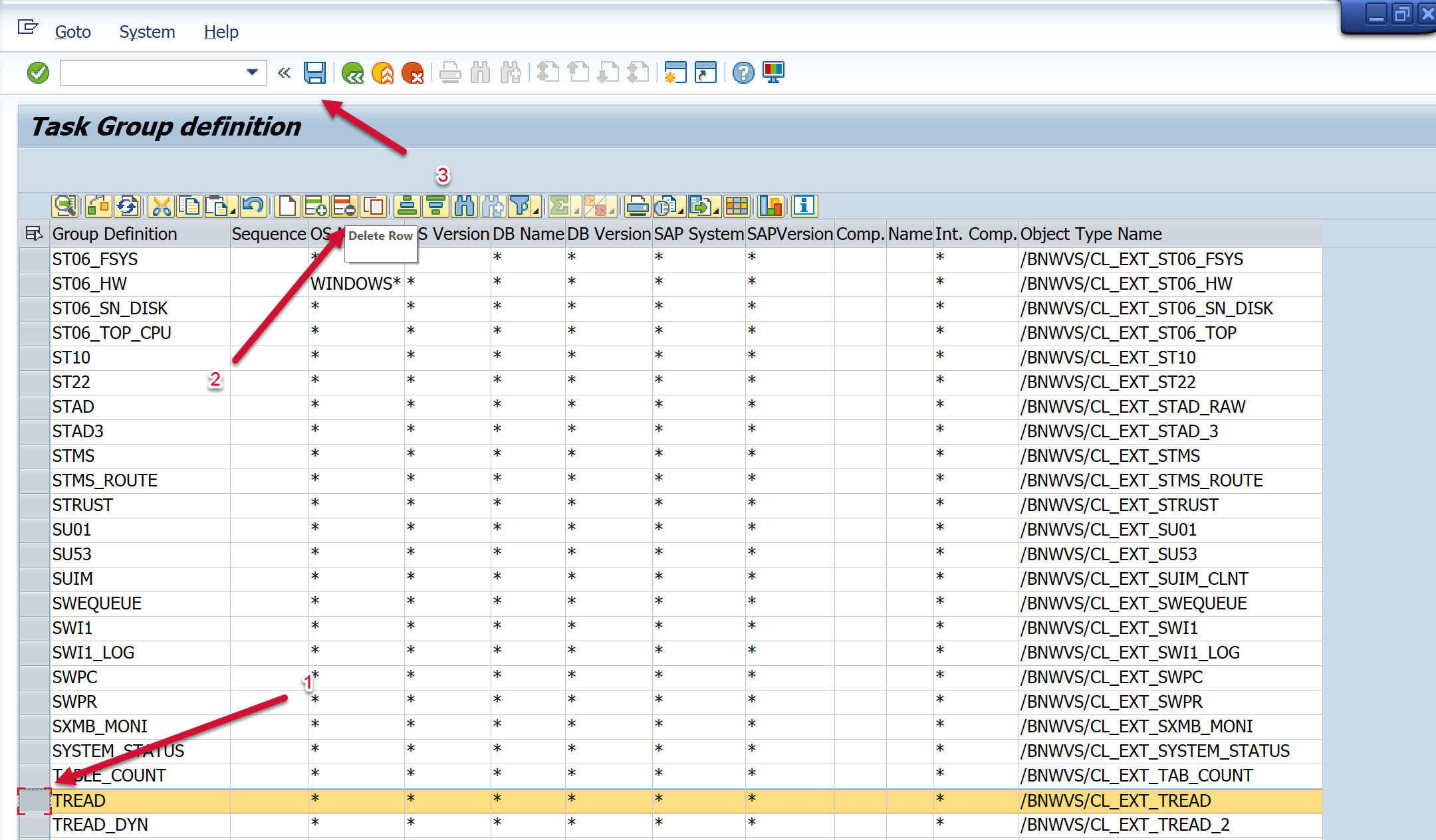

Then go to the extractor you would like to remove from the configuration. Highlight the row and select the Delete Row button. Save.
![](../__attachments/3177709627/image-20210720-174340.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)

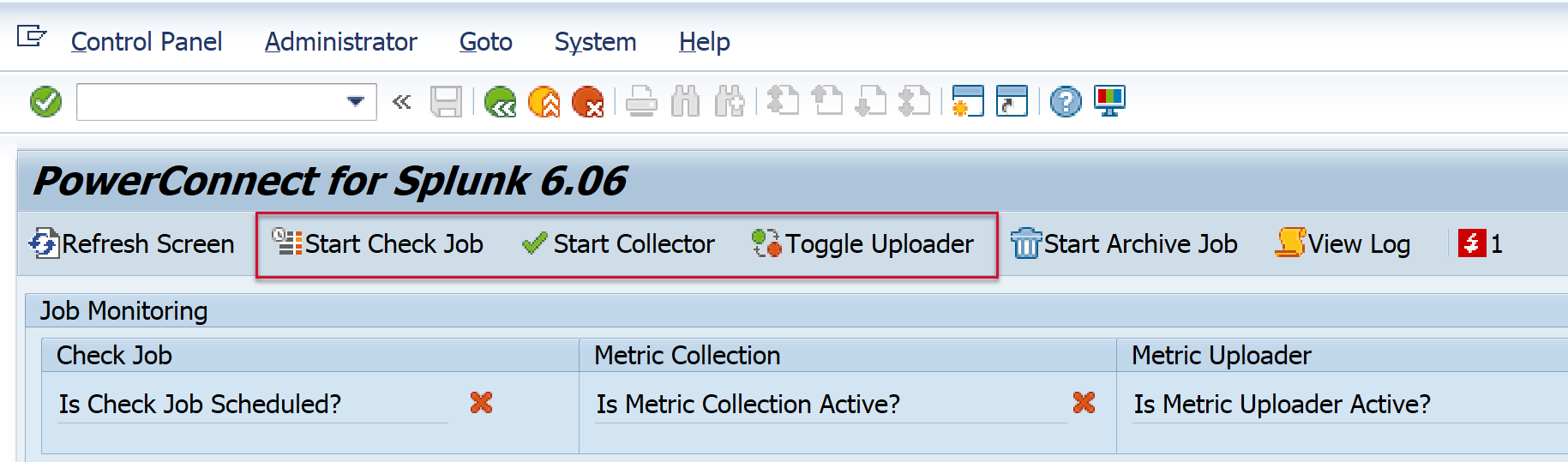

Then return to the PowerConnect administrative console, and select the buttons below to restart the PowerConnect batch jobs.
![](../__attachments/3177709627/image-20210720-173936.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)

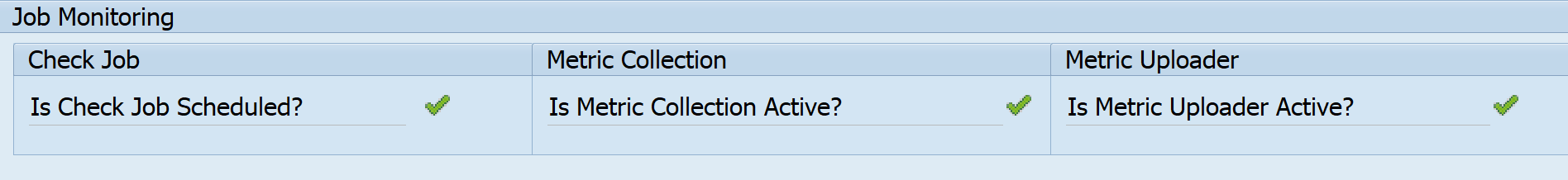

The PowerConnect administrative console should match the screen below once the batch jobs have successfully restarted.
![](../__attachments/3177709627/image-20210720-174015.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)
