KB 149 (ABAP): Metric extension functionality
Category: Problem/Information/Recommendation | Priority: Normal |
|---|---|
Platform: ABAP/SAP Cloud | Version: 1 from 26.03.2021 |
Description

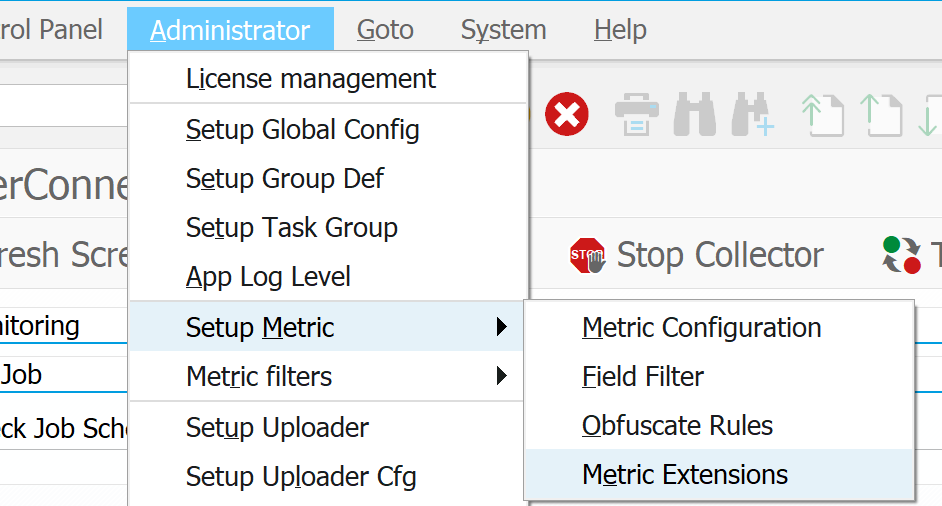

Starting from PowerConnect SP 6.04, it is possible to enhance metrics with custom fields based on simple conditions. The configuration is available via Administrator->Setup Metric->Metric Extensions menu option.

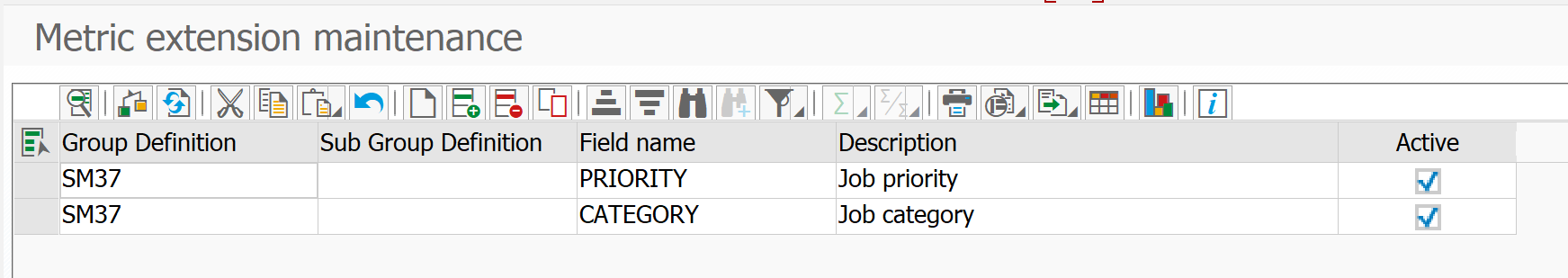

Metrics which needs to be enhanced defined on the left side of the screen:
Group Definition: name of the metric;
Sub Group Definition: subgroup which should be enhanced;
Field name: custom field name (actual field in Splunk will have ‘PC_’ prefix, i.e. PRIORITY->PC_PRIORITY);
Description: free text/comment to define the reason;
Active: flag to switch on/off the setup;

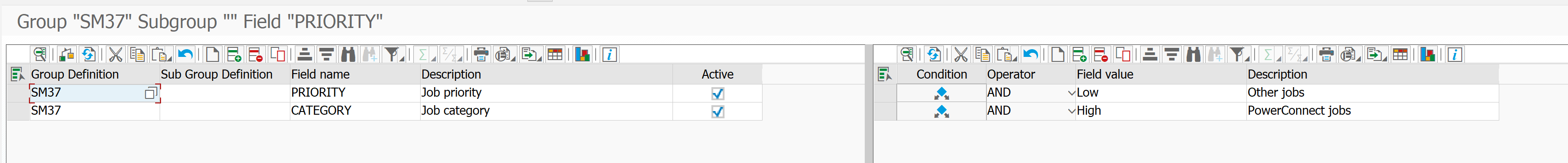

After necessary fields are added, it is possible to define values based on simple conditions by double-click on the necessary record/field.

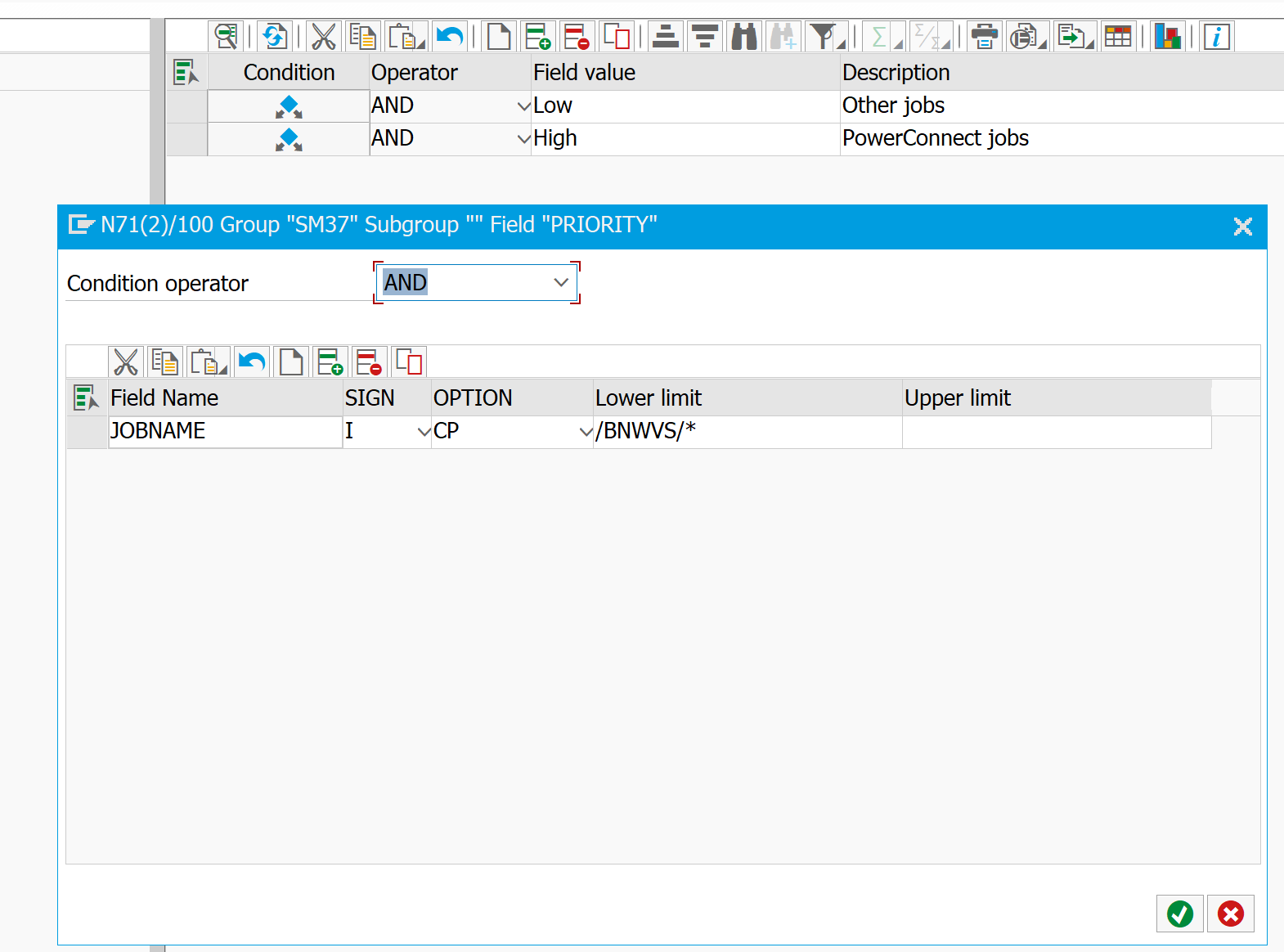

In the sample case above, custom field PRIORITY (will receive PC_PRIORITY name on Splunk side) could have two values: “Low” and “High”. Conditions for each of them needs to be defined by clicking on Condition button:
It is possible to use any fields which are available within the selected group definition/event. For instance, on the screen above field JOBNAME is used, which is available in SM37 event. Operator dropdown has two options: ‘AND’ and ‘OR’. In case ‘AND’ is selected, all conditions will be considered together (all should match), ‘OR’ operator is used when any of conditions is acceptable.
Field Name: field name of the event;
Sign: Include (I) or Exclude (E) condition;
Option: compare option, one of options below:
Operator | Description |
EQ | Equal: True, if the content of operand1 matches the content of operand2. |
NE | Not Equal: True, if the content of operand1 does not match the content of operand2. |
LT | Lower Than: True, if the content of operand1 is smaller than the content of operand2. |
GT | Greater Than: True, if the content of operand1 is greater than the content of operand2. |
LE | Lower Equal: True, if the content of operand1 is lower than or equal to the content of operand2. |
GE | Greater Equal: True, if the content of operand1 is greater than or equal to the content of operand2. |
CP | Match a pattern |
NP | Patter not matching |
BT | Between |
NB | Not between |
Lower limit: value to compare with
Upper limit: value to compare with as the high limit in the range;
After the conditions are maintained, all events which match to the defined conditions will receive appropriate value. According to the sample configuration, jobs with prefix /BNWVS/ will get new field PC_PRIORITY with value “High”.
Values with no conditions defined has lowest priority and will be used if none of others values are applicable to the event.

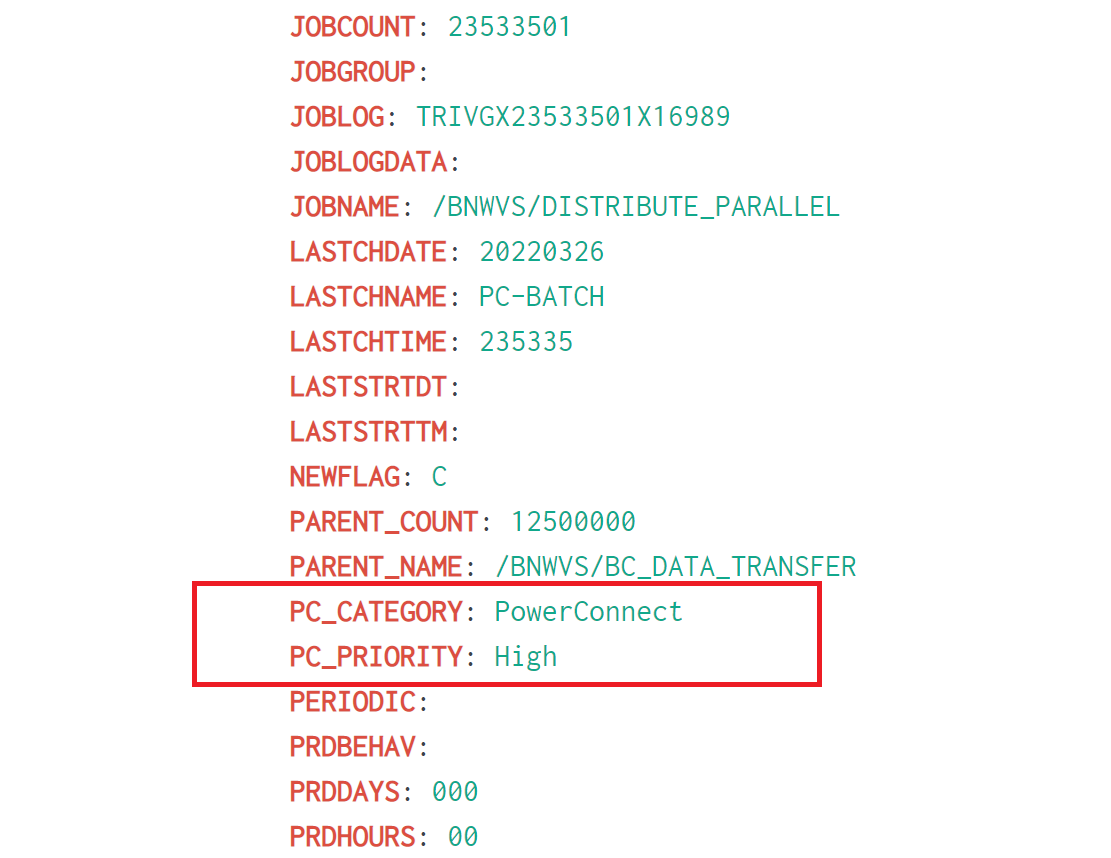

Event on Splunk side:
Product version
Product | From | To |
PowerConnect NW,S4HANA,S4HANA Cloud | 6.04 | * |
