KB 75 - Time-Based Extraction

KB 75 (ABAP): Time-Based Extraction

Category: Information

Platform: ABAP

Priority: Normal

Version: 1 from 23.03.2021


Starting from SP 5.08 it is possible to schedule each extractor to run at specific time (time-based extraction).

In order to define the extraction time, please follow steps below:

  • Stop the Extractor job.

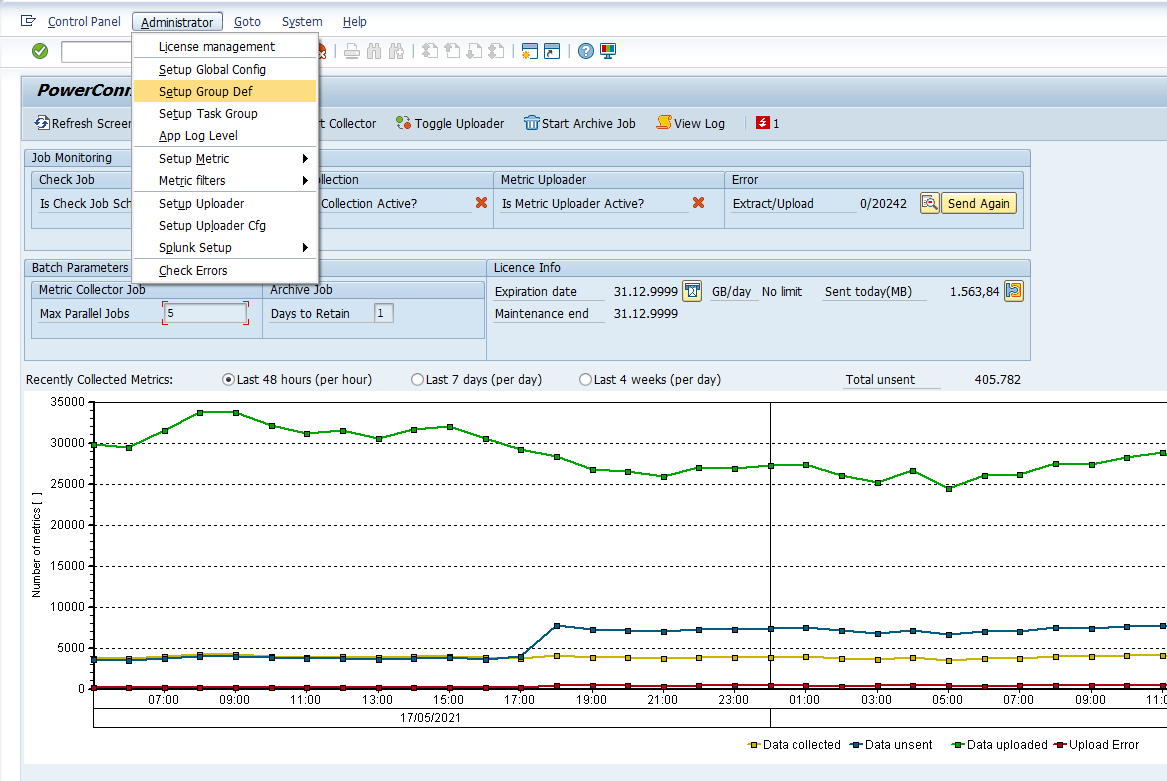

  • Open Administrator->Setup Group def menu option.

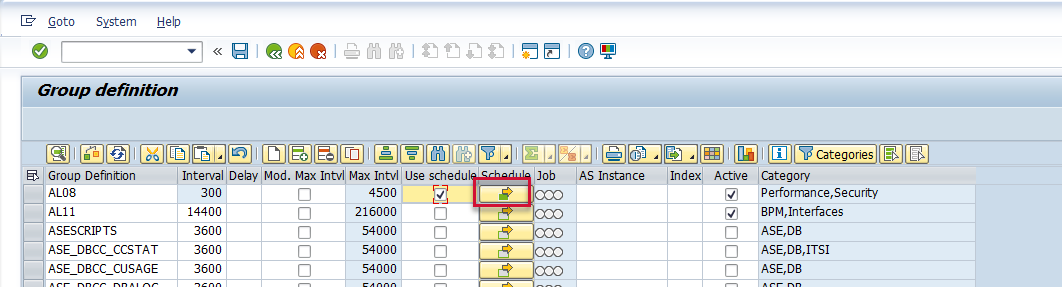

  • Activate the ‘Use schedule’ checkbox. Once the checkbox is set, you will be immediately given a dialog to define the time and occurrence interval. In case of Daily runs, it is possible to choose the day of week. Accept the changes by clicking the check button.

The schedule can be changed any time in the Group Def config by clicking on the button below. Please note, changes will be applied only after Extractor job restart.

Once the config is saved, the background job will be scheduled accordingly for necessary metrics. The name of the background job will be /BNWVS/BC_EXT_<group_name>.

In order to revoke the extractor schedule, the flag ‘Use schedule’ should be deactivated and changes are saved. The corresponding background job will be revoked once changes are saved. Moreover, the job will be stopped if the extractor is deactivated using ‘Active’ checkbox.

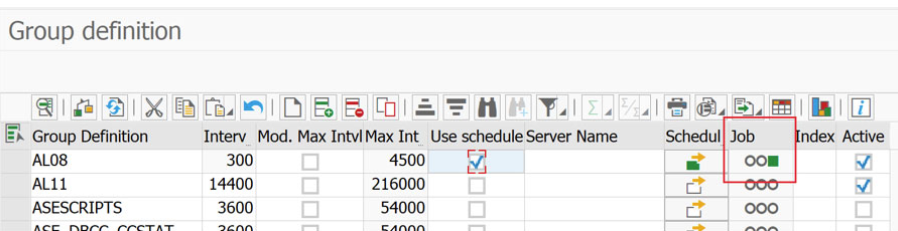

If the metric extraction job is scheduled or running the green led indicator will be shown in the ‘Job’ column.

The time based extraction will be stopped, once the Extractor job is stopped in the PowerConnect control panel and started again right after the Extractor job is started.

Product version




PowerConnect [NW,S4HANA,S4HANA Cloud]

[Affected version from]

[Affected version to]

[SAP product version]
