KB 79 - UI ws_policy After Upgrade
KB 79 (Java): UI ws_policy After Upgrade
Category: Problem | Priority: High |
---|---|
Platform: Java(NW) | Version: 1 from 23.03.2021 |
Description

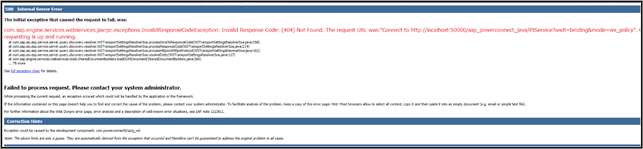

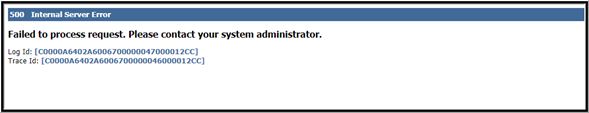

In some cases, the following error may occur after the upgrade of PowerConnect (The below two screenshots show the error in Netweaver 7.40 and 7.50) In both cases the logs indicate an error relating to the ws_policy.
![](../__attachments/3102572549/image-20210527-201032.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)
The request URL was:"Connect to http://localhost:50000/sap_powerconnect_java/PIService?wsdl=binding&mode=ws_policy
![](../__attachments/3102572549/image-20210527-201106.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)
DefaultTrace.log
[EXCEPTION]
com.sap.tc.webdynpro.services.exceptions.WDRuntimeException: Exception was thrown in preprocessing phase of application session…..
Caused by: com.sap.tc.webdynpro.model.webservice.exception.WSModelRuntimeException: …….. ……. application name 'com.powerconnect5/spcj_wd'. Check mass configuration has been done properly.
Caused by: com.sap.esi.esp.service.server.query.discovery.ExtendedServiceException: Cannot load WSDL: http://<host>:<port>/sap_powerconnect_java/JMXService?wsdl=binding&mode=ws_policy.
Resolution

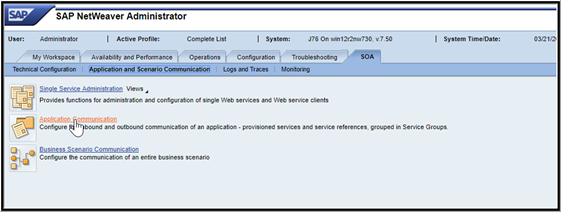

Go to http://<host>:<port>/nwa → SOA Tab → Application Communication
![](../__attachments/3102572549/image-20210527-201226.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)

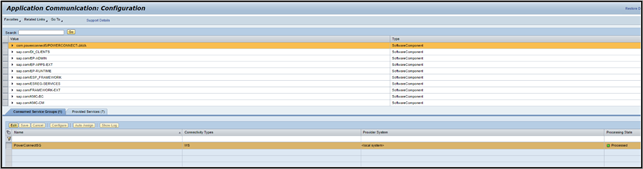

Select the POWERCONNECT-JAVA line
![](../__attachments/3102572549/image-20210527-201300.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)

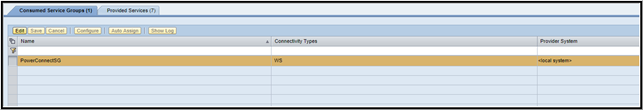

Select PowerConnectSG under “Consumed Service Groups”
![](../__attachments/3102572549/image-20210527-201335.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)
Select “Edit”
![](../__attachments/3102572549/image-20210527-201404.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)
![](../__attachments/3102572549/image-20210527-201422.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)
In the “Provider System” column change <local system> to <none>
![](../__attachments/3102572549/image-20210527-201452.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)
![](../__attachments/3102572549/image-20210527-201521.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)
Save Change
![](../__attachments/3102572549/image-20210527-201547.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)
Edit line again
![](../__attachments/3102572549/image-20210527-201620.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)
![](../__attachments/3102572549/image-20210527-201638.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)
In the “Provider System” column change <none> to <local system>
![](../__attachments/3102572549/image-20210527-201658.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)
![](../__attachments/3102572549/image-20210527-201713.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)
Save Change
![](../__attachments/3102572549/image-20210527-201735.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)

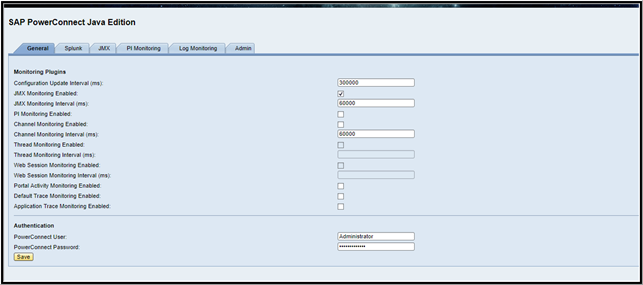

Refresh the UI screen.
![](../__attachments/3102572549/image-20210527-201755.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)
