KB 89 - Splunk KV Extraction Limit
KB 89 (Splunk): Splunk KV Extraction Limit
Category: Information | Priority: Normal |
---|---|
Platform: Splunk | Version: 1 from 23.03.2021 |
Description
If the data in your Splunk instance may have an event size greater than 10240 characters then Splunk won’t auto-extract kv-pairs after 10240 characters. So there are two ways of overcoming this problem:
Using props.conf (Note: This method only works if you have data in the form of JSON)
Using limits.conf
Using props.conf

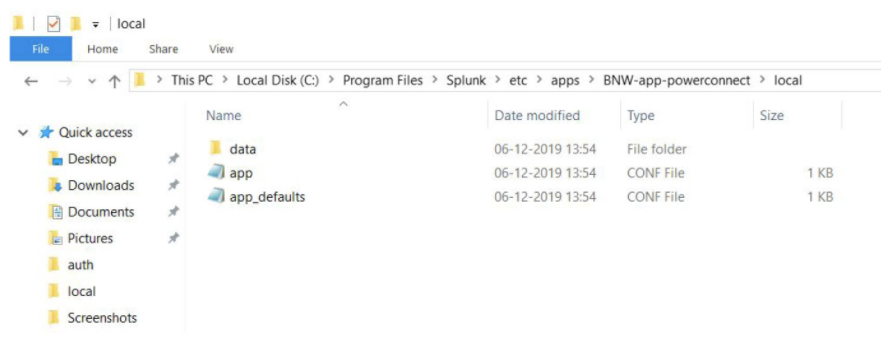

Go to $SPLUNK_HOME$/etc/apps/BNW-app-powerconnect/local/ directory.
![](../__attachments/3101163792/image-20210527-174039.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)
If there exist a file named props.conf then edit and if it doesn’t exist create one.
There are two ways you can apply the settings:
For specific sourcetype or host or source (preferred way)
Globally apply settings
For a specific sourcetype. host, or source:
For a specific sourcetype:
Let’s say you want to apply for sourcetype=sap:java
![](../__attachments/3101163792/image-20210527-173936.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)
For a specific source:
Let’s say you want to apply for source=N71
![](../__attachments/3101163792/image-20210527-174000.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)
For a specific host:
Let’s say you want to apply for host=SAPN71D
![](../__attachments/3101163792/image-20210527-174016.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)
Important Note: Restart Splunk for the changes to take effect
Globally apply settings:
Note: If there are same settings applied for any specific sourcetype, host or source then these settings won’t override them.
Add the following content to your props.conf file.
Important Note: Restart Splunk for the changes to take effect
Using limits.conf

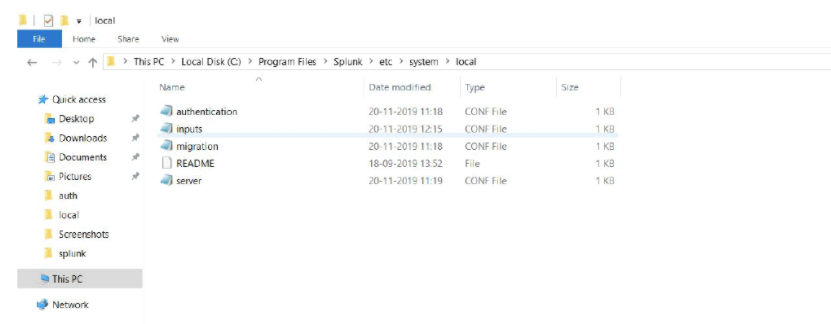

Go to $SPLUNK_HOME$/etc/system/local/ directory.
![](../__attachments/3101163792/image-20210527-174100.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)
If there exist a file named limits.conf then edit and if it doesn’t exist create one.
Add the following content to the file:
Note: You can specify the character limit as per your requirement.
![](../__attachments/3101163792/image-20210527-174117.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)
If the file already has [kv] stanza then just add the maxchars = 2500000 line in that stanza to increase the character limit to 2500000 characters.
Important Note: Restart Splunk to make these changes into effect.
