KB 90 - PowerConnect System Copy Guide

KB 90 (ABAP): PowerConnect System Copy Guide

Category: Information

Priority: Normal

Platform: ABAP

Version: 1 from 23.03.2021


Please follow the steps below as part of pre and post processing of your system copy.

Before System Copy

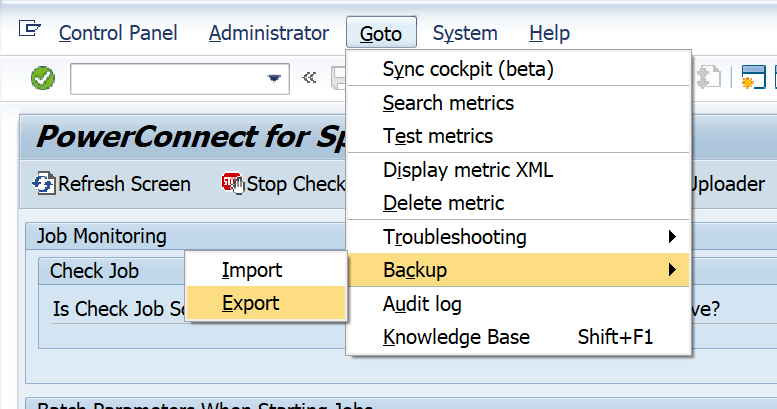

To preserve the existing PowerConnect configuration export the existing configuration. This can be done by going to the /n/bnwvs/main transaction in the SAP system, and go to GoTo → Backup → Export

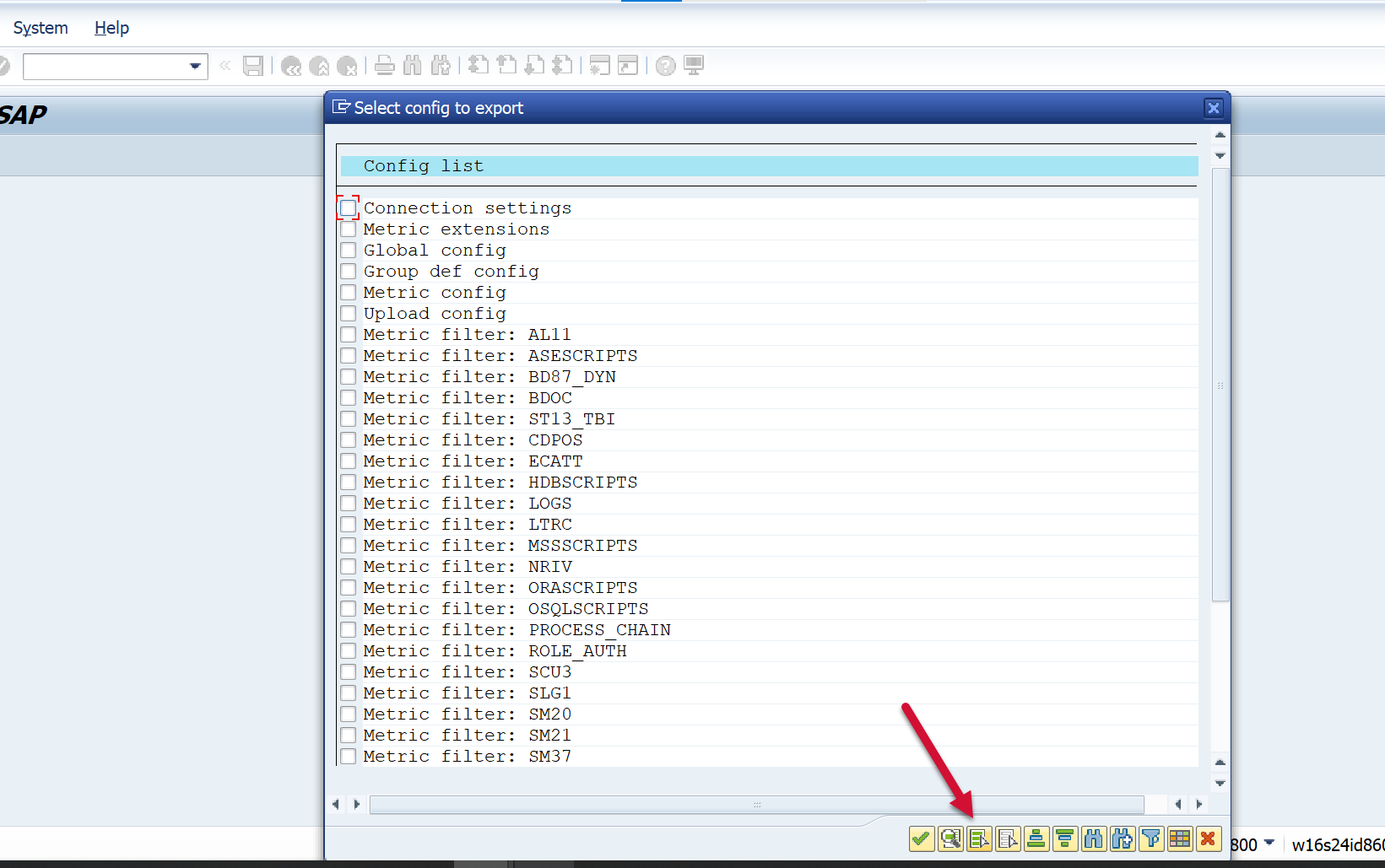

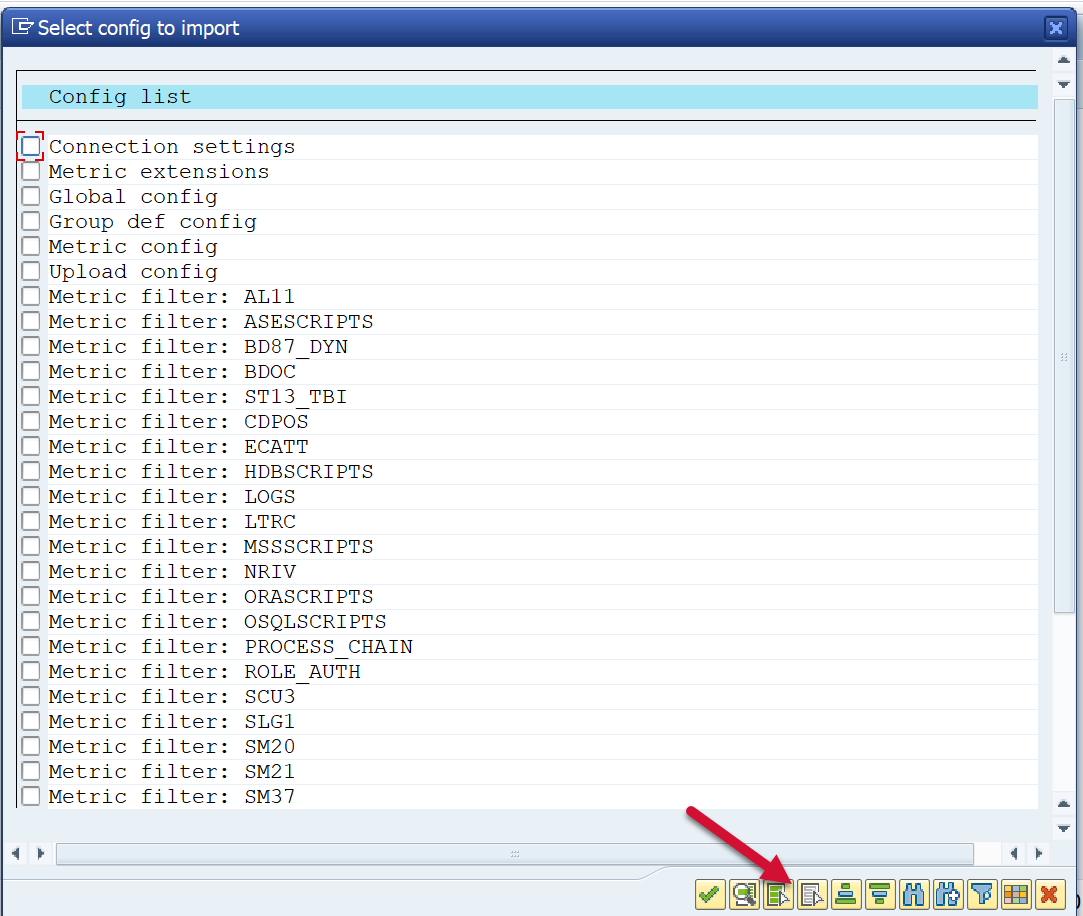

Click Select All

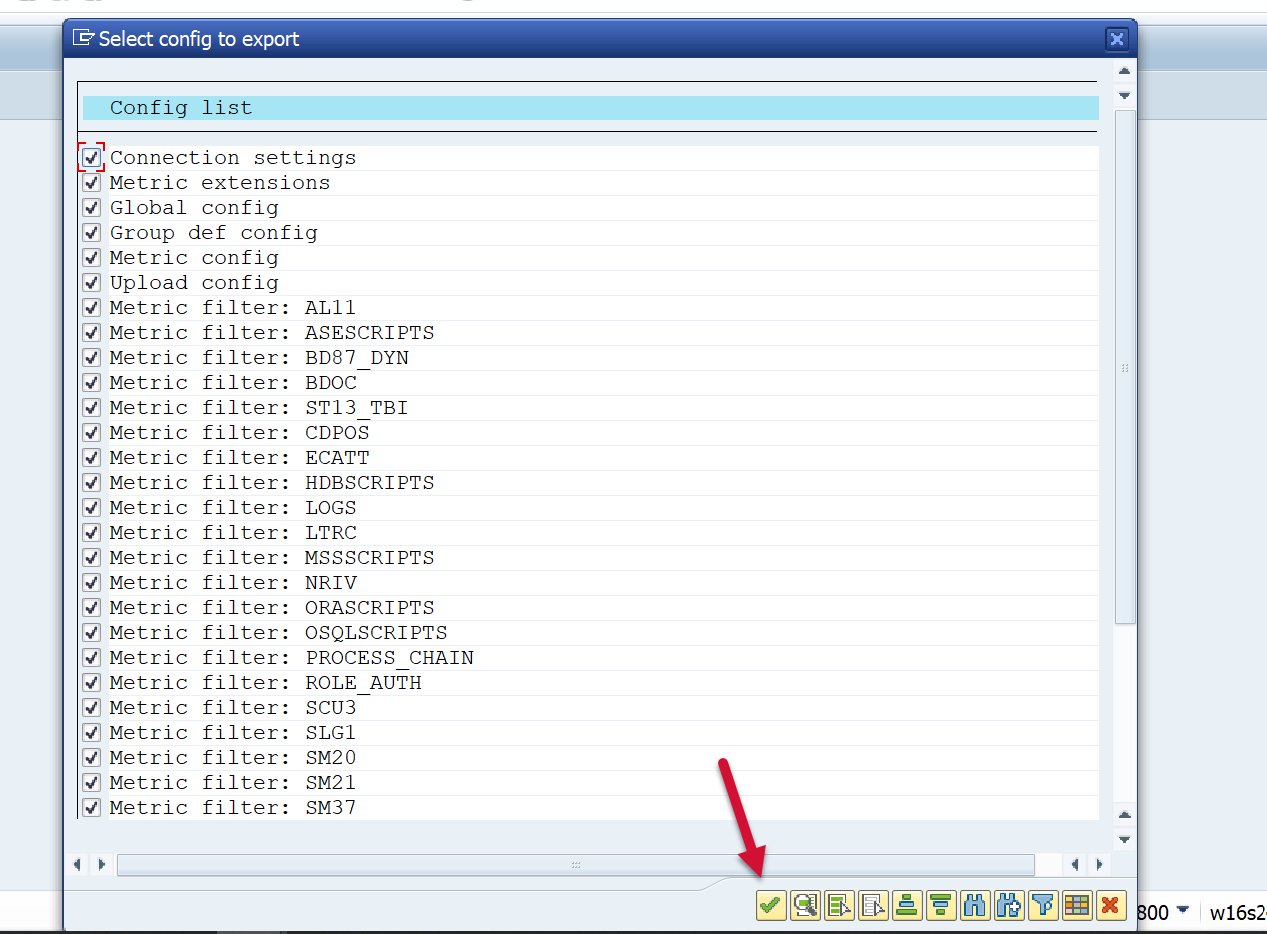

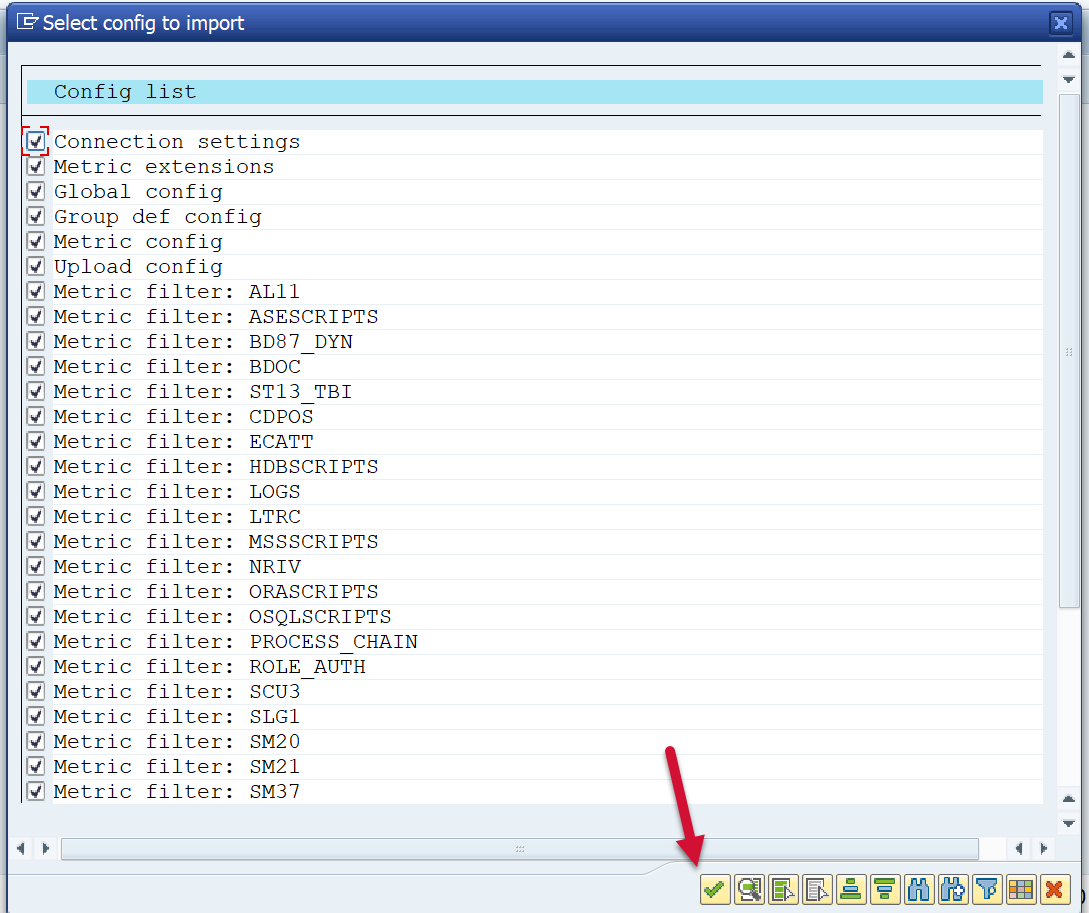

Then click Confirm

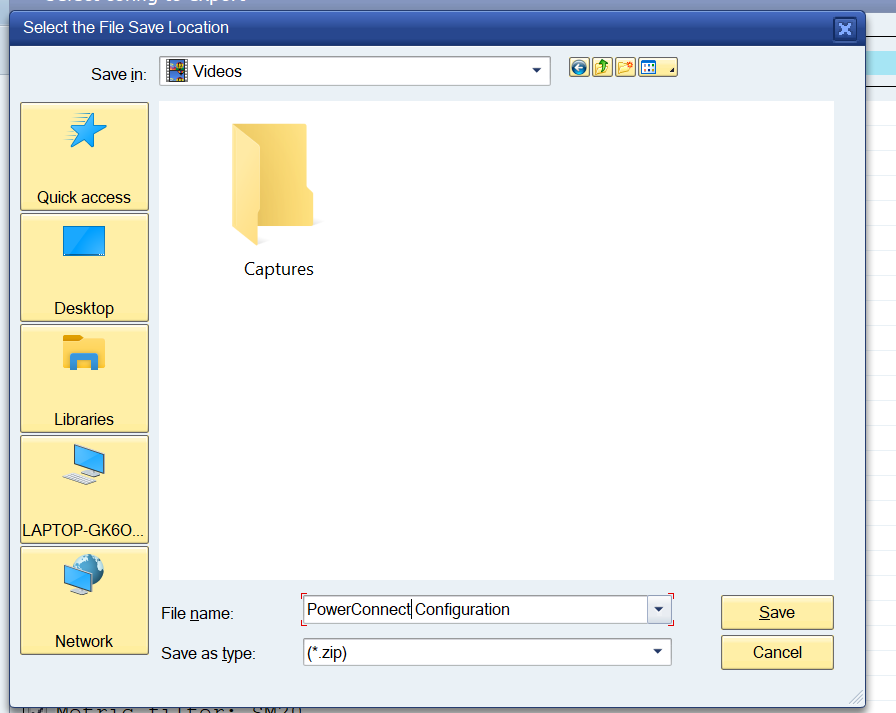

Save the zip file to your local PC

After System Copy

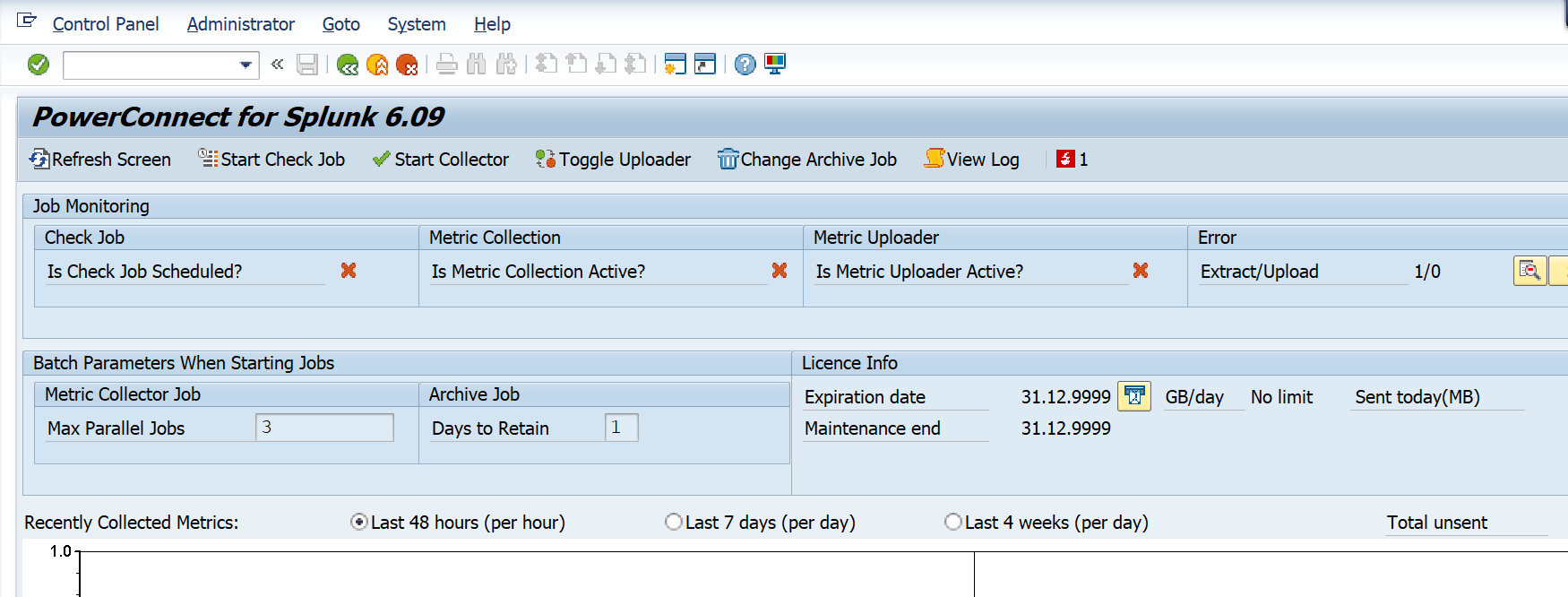

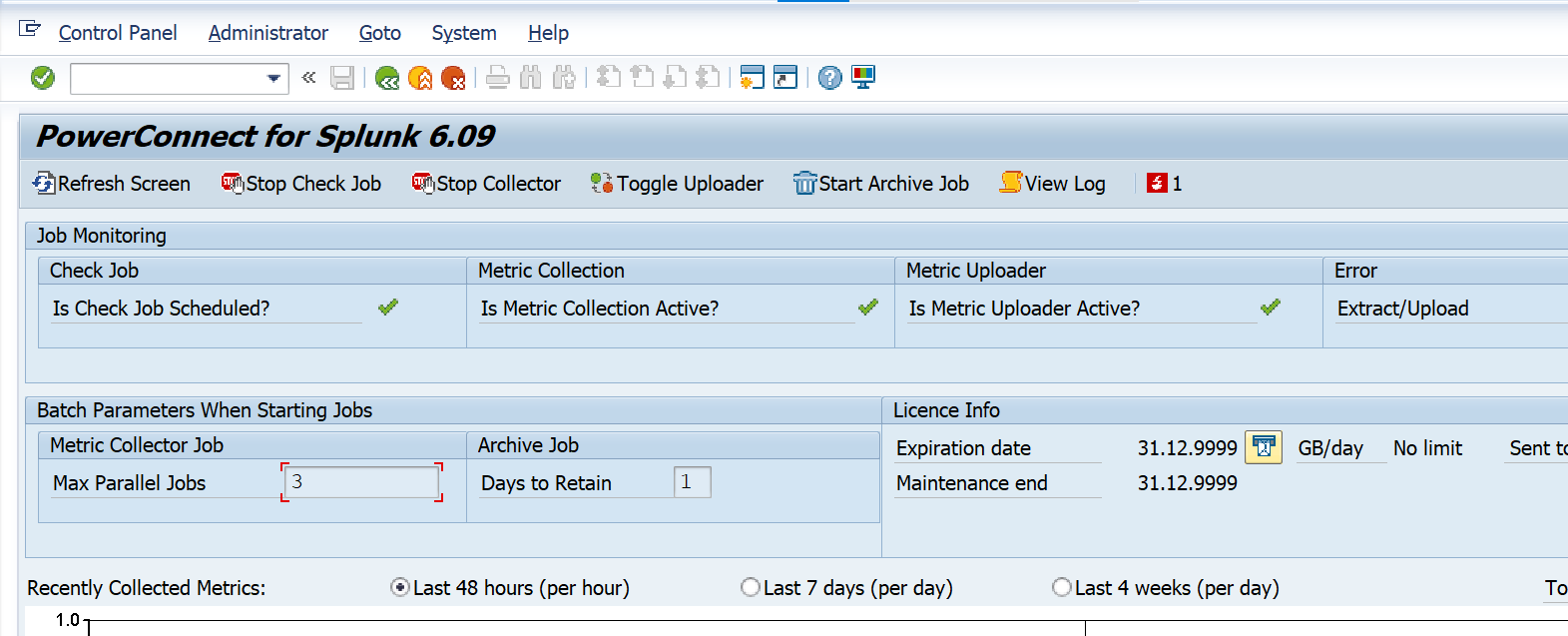

Ensure all PowerConnect jobs are stopped

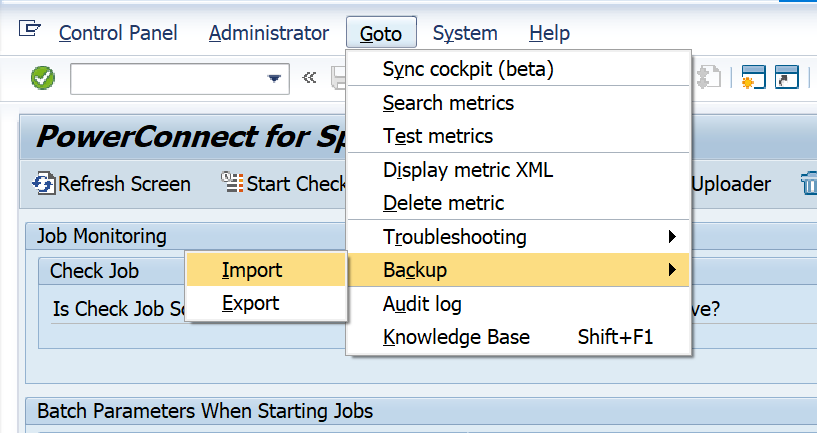

Then go to GoTo → Backup → Export

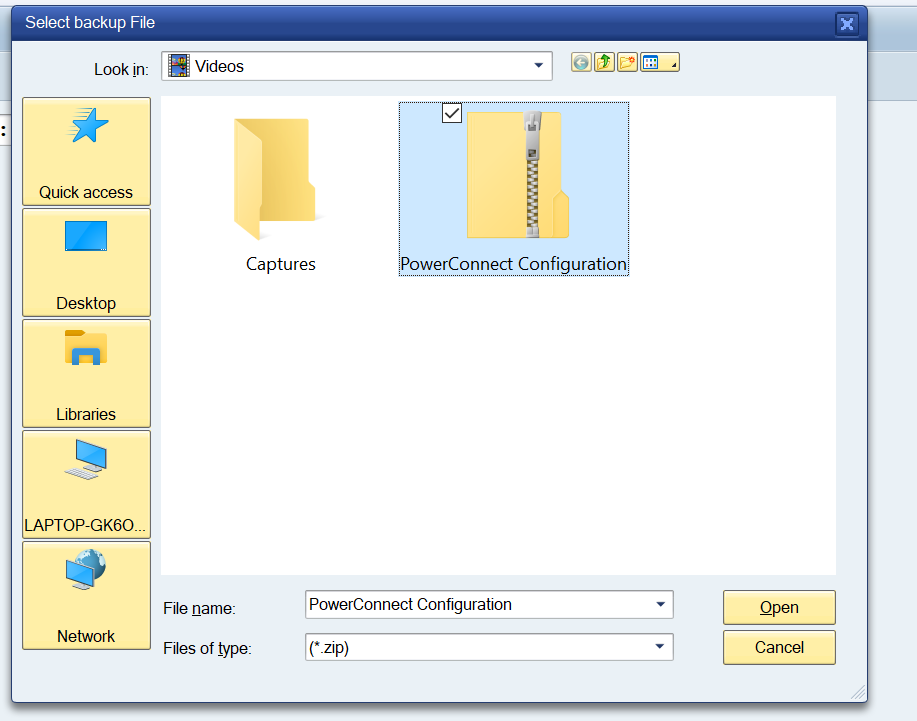

Click on the file that was exported in the previous step

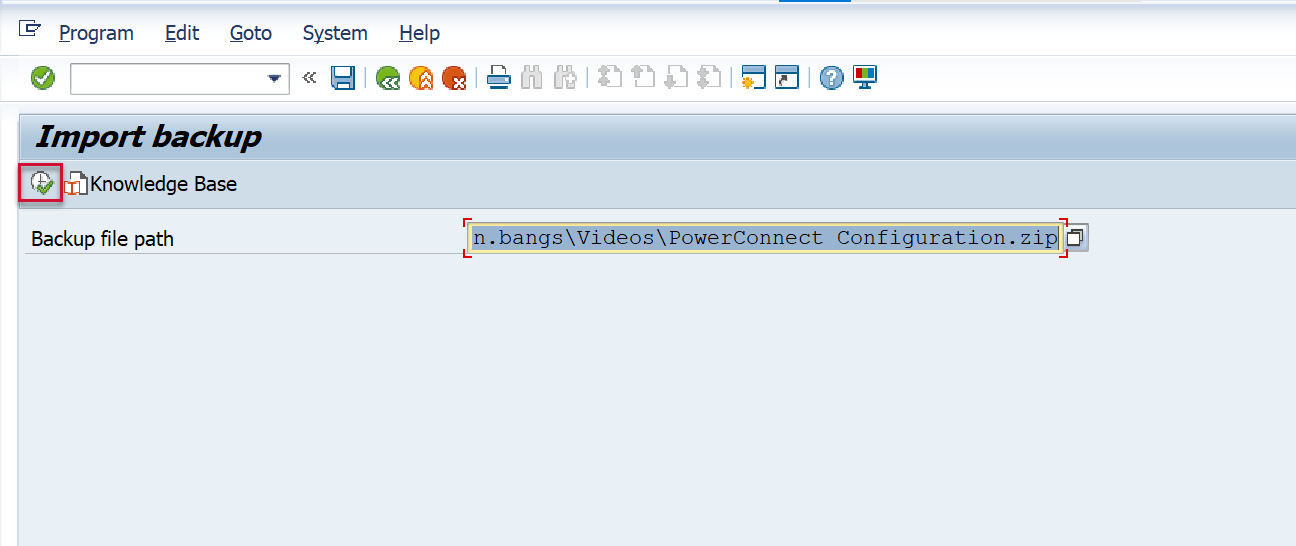

Click on the Execute button.

Click on Select All

Click on Confirm

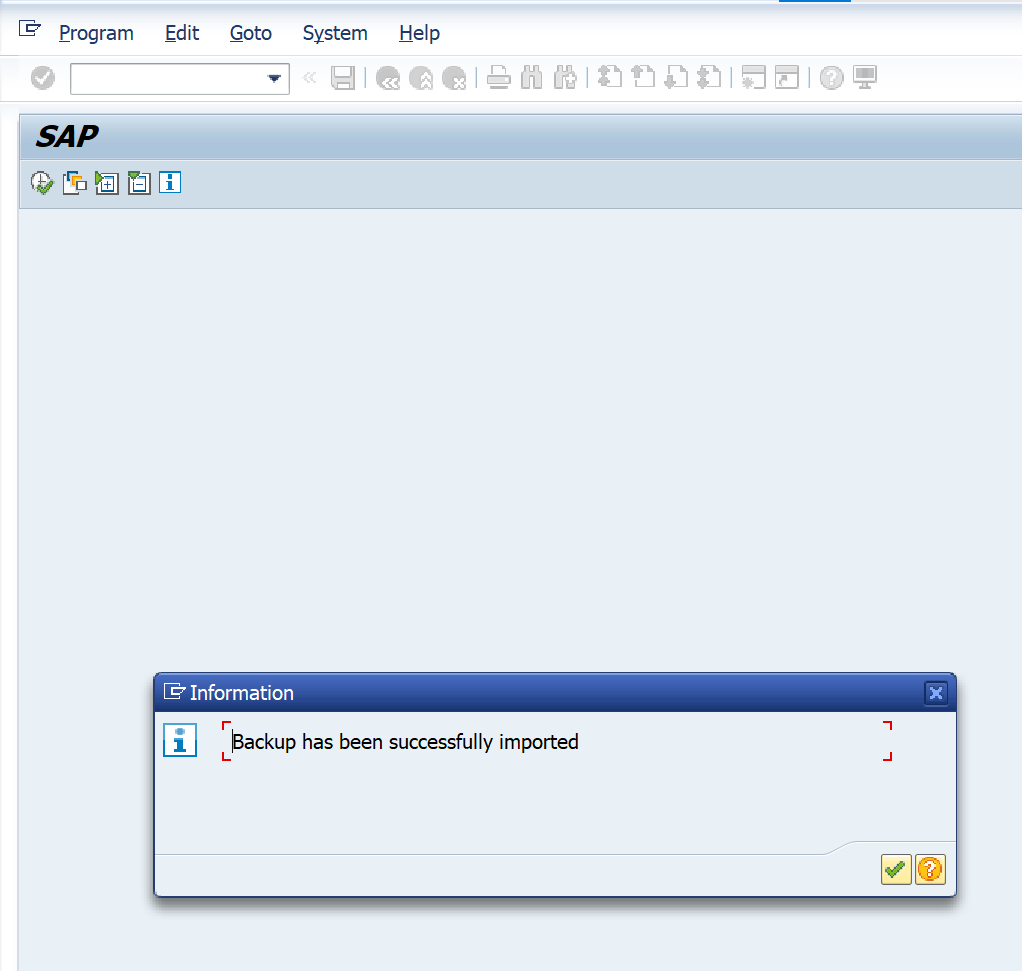

Click confirm after the backup has been successfully imported

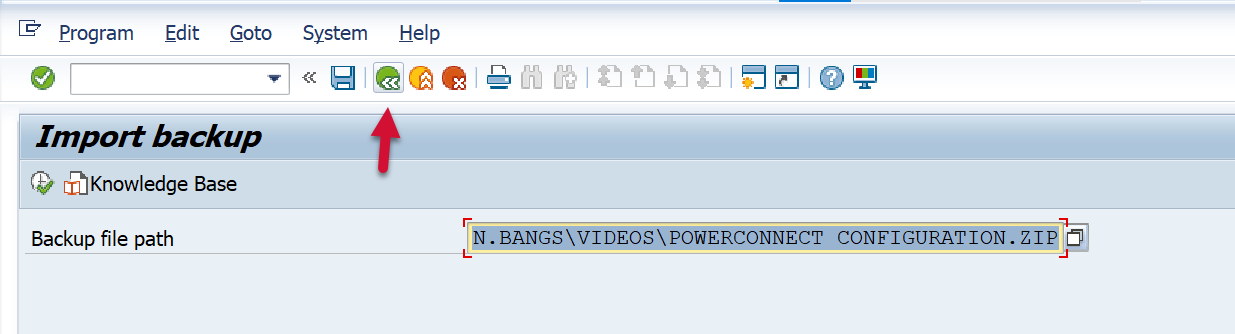

Click on Back

Restart the PowerConnect batch jobs
