Role Based Access Controls

Overview

PowerConnect Cloud has a simple role based access control system for organisations that have different teams responsible for administering Inputs, Outputs and the PowerConnect Agent configuration.

Roles and Permissions

Action

Input Manager

Output Manager

Administrator

View Inputs

Create Input

Edit Input

Pause Input

Enable/Disable Output

x

x

x

x

x

x

x

x

x

x

Create Output

Edit Output

Enable/Disable Output

x

x

x

x

x

x

Assign Output to Input

x

x

View Tasks

x

x

x

View Checkpoints

x

x

x

View Plugins

x

x

x

View Users

Add User

Edit User

Delete User

x

x

x

x

View Agent Configuration

Edit Agent Configuration

x

x

Note - Assigning an Output to an Input requires both Input Manager (to edit the Input) and Output Manger (to assign the Output to the Input) roles or Administrator

Adding a User

  • Login as a user with adminstration permissions

  • Click the Users tab in the PowerConnect Agent Web UI

  • Click Add new

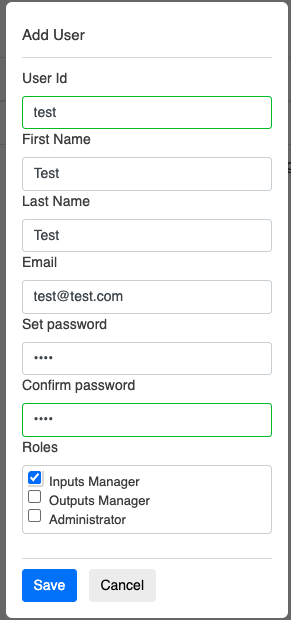

  • Fill in the new User details and assign a role

  • Click Save

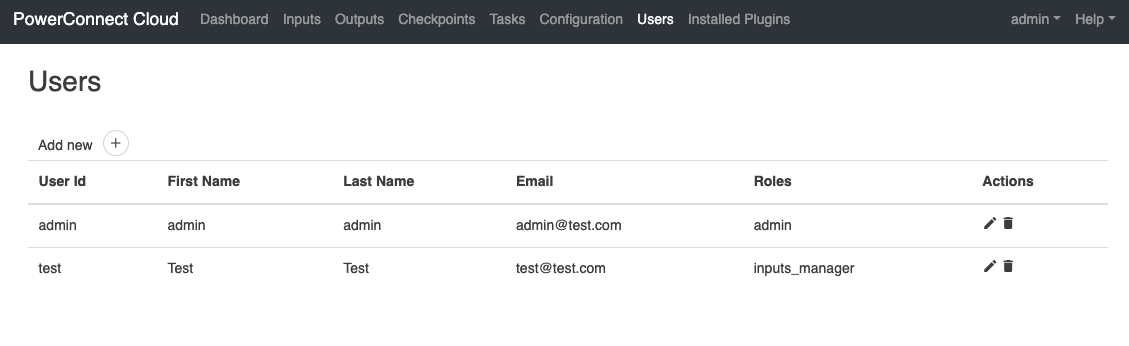

  • The newly created user will now appear in the Users table

Deleting a User

  • Login as a user with adminstration permissions

  • Click the Users tab in the PowerConnect Agent Web UI

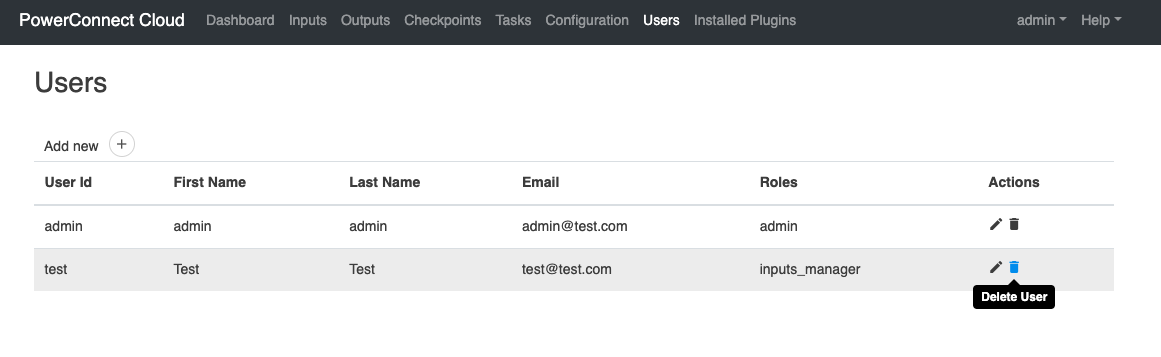

  • Click on the delete icon next to the user you wish to delete

  • Confirm you wish to delete the user

  • The user has now been removed from the system
