Data Description
The SM51_STATE event is used in SAP to determine the application server status.
Potential Use Cases
This event could be used for the following scenarios:

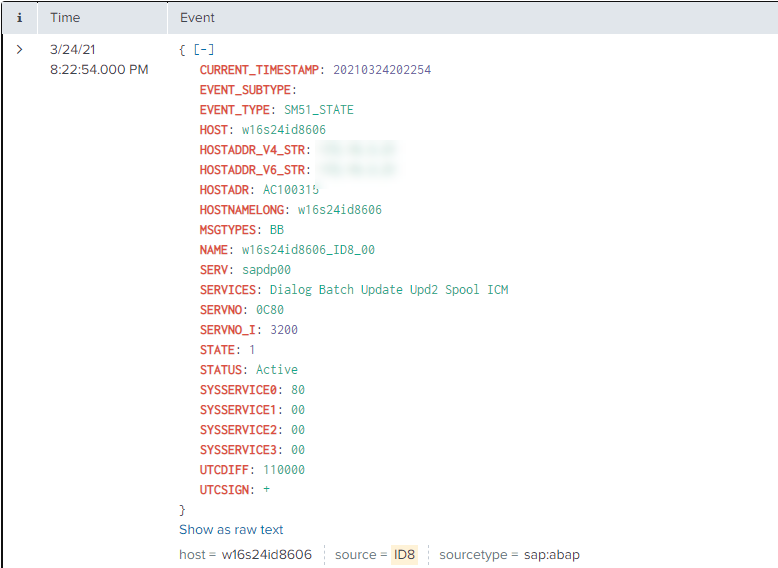

Splunk Event
The event will look like this in Splunk:

SAP Navigation

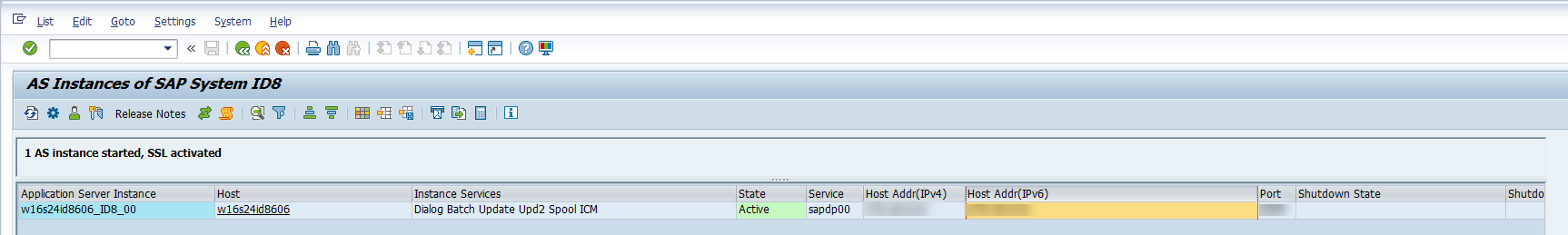

Navigate to this data by using the SM51 t-code. The data from the opening screen shows the information from the SM51_STATE event.

Field Mapping
The field mapping between the data from SAP and values in Splunk can be seen in the table below:
Group Definition/EVENT_TYPE | EVENT_SUBTYPE (if applicable) | SAP Field Name | Splunk Field Name |
---|
SM51_STATE | | N/A | CURRENT_TIMESTAMP |
SM51_STATE | | N/A | EVENT_SUBTYPE |
SM51_STATE | | N/A | EVENT_TYPE |
SM51_STATE | | Name of the Host Server | HOST |
SM51_STATE | | IPv4 Address | HOSTADDR_V4_STR |
SM51_STATE | | IP Address | HOSTADDR_V6_STR |
SM51_STATE | | Host IP address | HOSTADR |
SM51_STATE | | Host Name | HOSTNAMELONG |
SM51_STATE | | Services of the Application Server Instance | MSGTYPES |
SM51_STATE | | Application Server Instance | NAME |
SM51_STATE | | Service | SERV |
SM51_STATE | | Services | SERVICES |
SM51_STATE | | Service port number | SERVNO |
SM51_STATE | | Port | SERVNO_I |
SM51_STATE | | Server Status | STATE |
SM51_STATE | | Status | STATUS |
SM51_STATE | | System Services Registered on Message Server | SYSSERVICE0 |
SM51_STATE | | System Services Registered on Message Server | SYSSERVICE1 |
SM51_STATE | | System Services Registered on Message Server | SYSSERVICE2 |
SM51_STATE | | System Services Registered on Message Server | SYSSERVICE3 |
SM51_STATE | | N/A | UTCDIFF |
SM51_STATE | | N/A | UTCSIGN |
