SYSTEM_STATUS
Data Description
The SYSTEM_STATUS event is used in SAP to view the software, components, kernel, and general SAP system information.
Potential Use Cases
This event could be used in the following scenarios:
To obtain system information details for dashboarding purposes.
Correlate new installations with security risks or performance issues.
Splunk Event

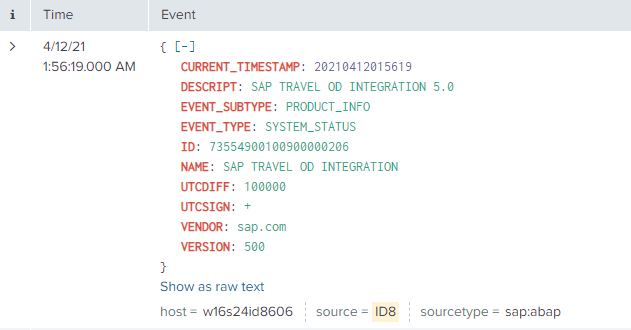

SYSTEM_STATUS with EVENT_SUBTYPE=PRODUCT_INFO
The event will look like this in Splunk:
![](../__attachments/3056631860/image-20210412-231108.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)

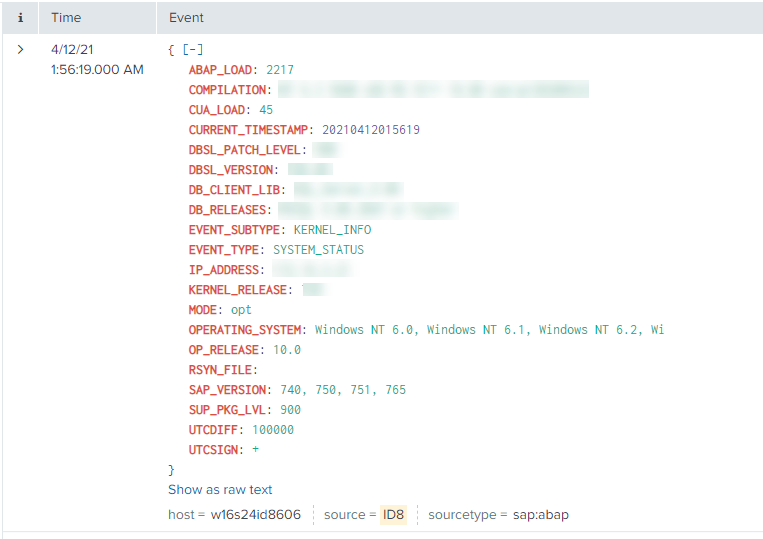

SYSTEM_STATUS with EVENT_SUBTYPE=KERNEL_INFO
The event will look like this in Splunk:
![](../__attachments/3056631860/image-20210412-230955.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)

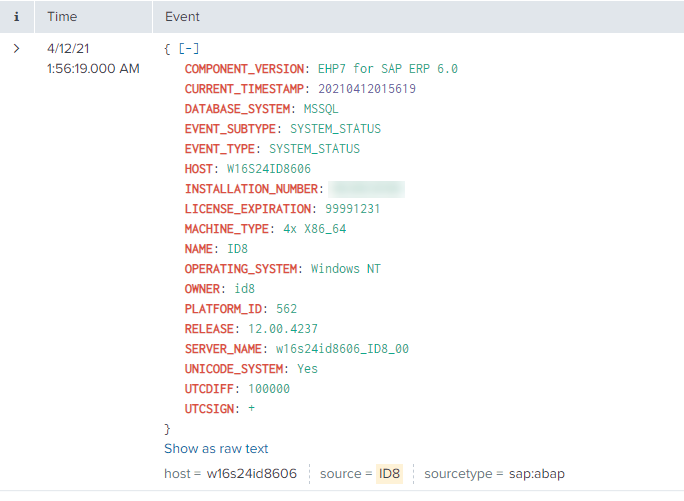

SYSTEM_STATUS with EVENT_SUBTYPE=SYSTEM_STATUS
The event will look like this in Splunk:
![](../__attachments/3056631860/image-20210412-230833.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)

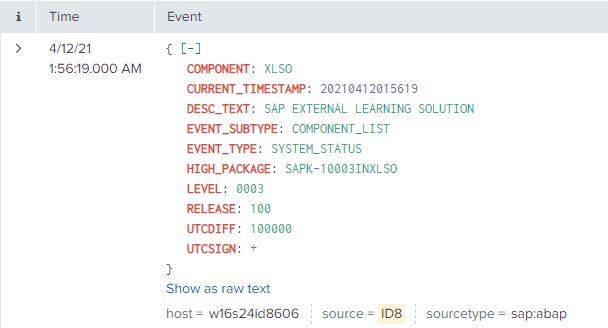

SYSTEM_STATUS with EVENT_SUBTYPE=COMPONENT_LIST
The event will look like this in Splunk:
![](../__attachments/3056631860/image-20210412-231032.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)
SAP Navigation

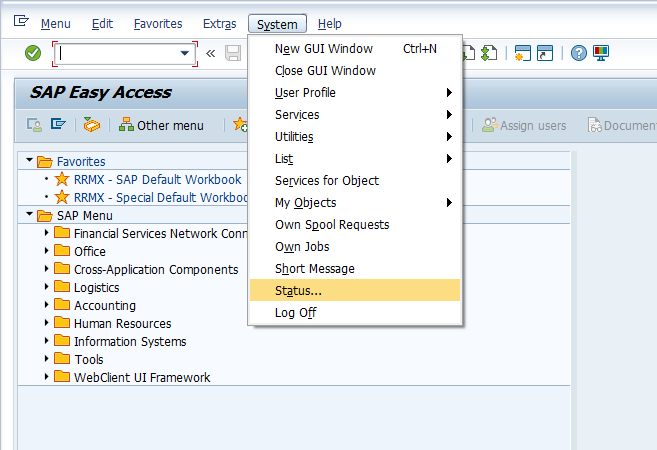

Log into the system and go to the System → Status menu option.
![](../__attachments/3056631860/image-20210412-230702.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)

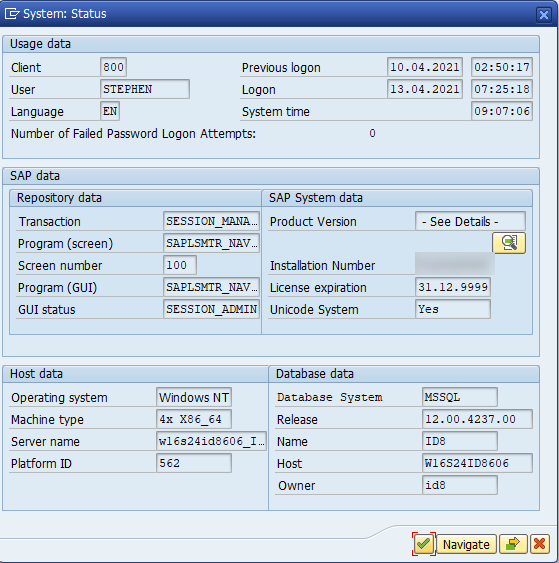

SYSTEM_STATUS with EVENT_SUBTYPE=SYSTEM_STATUS
The information displayed below will match with Splunk.
![](../__attachments/3056631860/image-20210412-231226.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)
SYSTEM_STATUS with EVENT_SUBTYPE=KERNEL_INFO

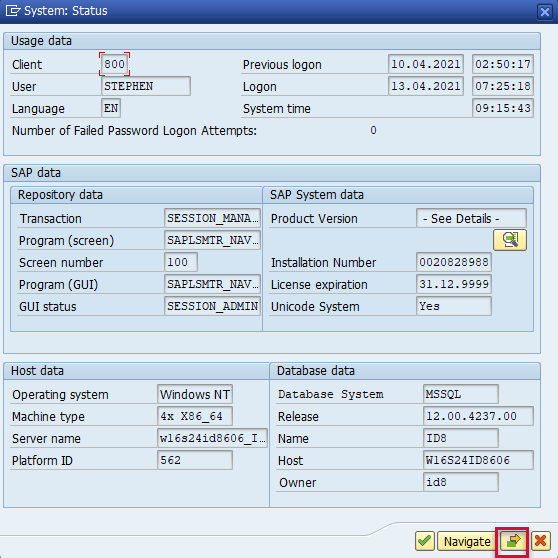

Click on the Other kernel Info button.
![](../__attachments/3056631860/image-20210412-231652.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)
The information displayed will match with Splunk.
![](../__attachments/3056631860/image-20210412-231740.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)
SYSTEM_STATUS with EVENT_SUBTYPE=COMPONENT_LIST

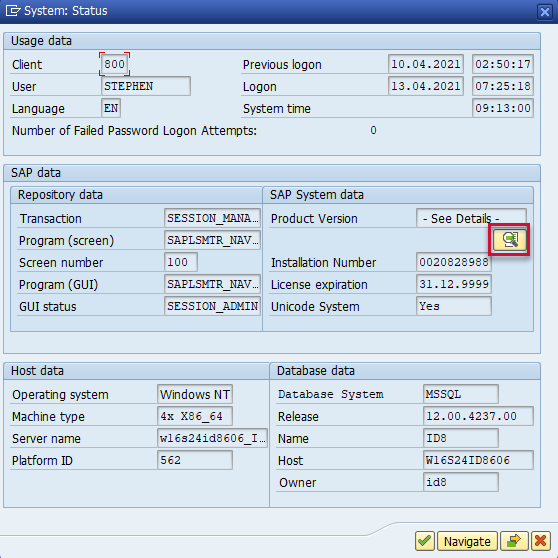

Click on the Details button.
![](../__attachments/3056631860/image-20210412-231353.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)

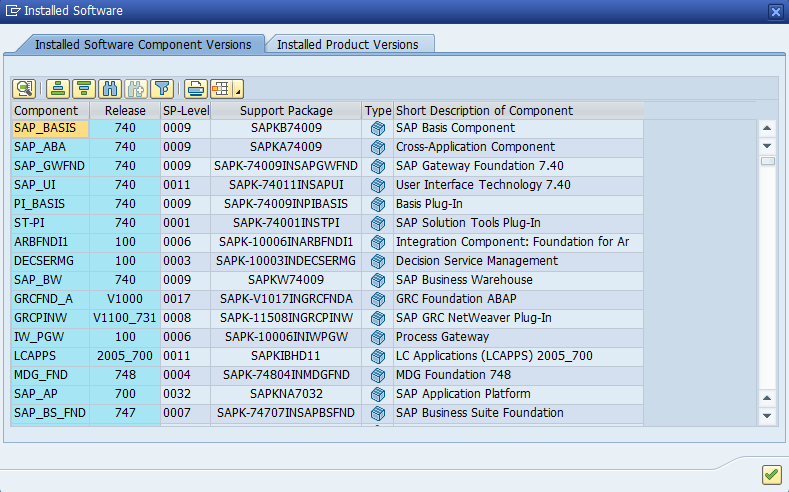

The information displayed will match with Splunk.
![](../__attachments/3056631860/image-20210412-231419.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)
SYSTEM_STATUS with EVENT_SUBTYPE=PRODUCT_INFO
Click on the Details button.
![](../__attachments/3056631860/image-20210412-231353.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)

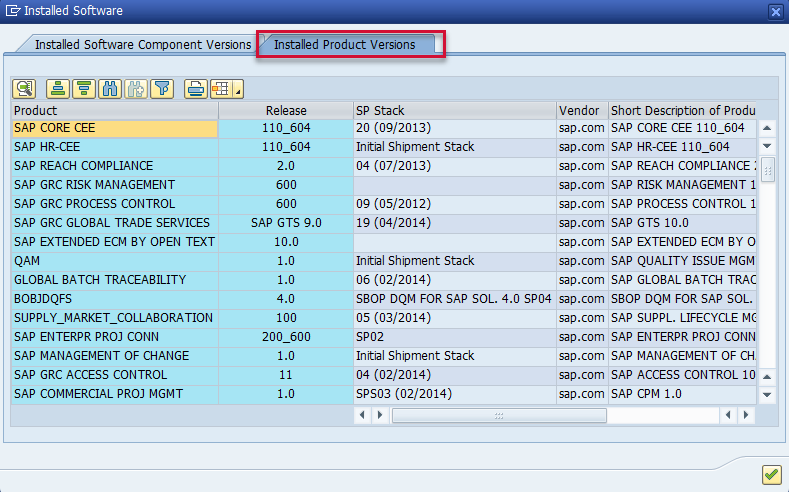

Click on the Installed Product Versions tab. The data displayed will match with Splunk.
![](../__attachments/3056631860/image-20210412-231522.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)
