The TABLE_COUNT event is used in SAP to count the number of records and storage size for the largest tables in an SAP system.
Potential Use Cases
This event could be used for the following scenarios:
Determine candidates for data archiving.
Understand if records for a large table were unexpectedly deleted.
Splunk Event

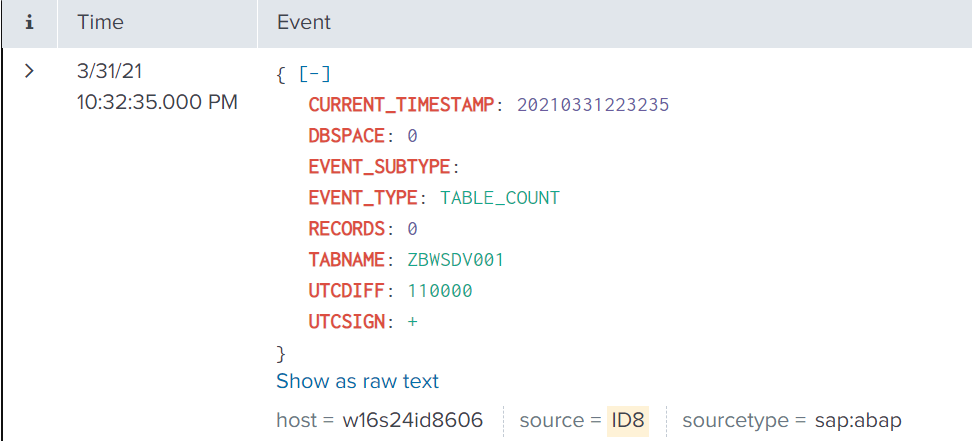

The event will look like this in Splunk:
SAP Navigation

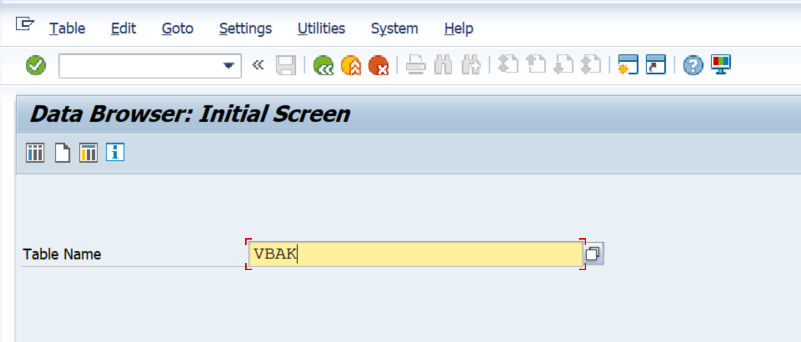

Navigate to this data by using the SE16 transaction code. Then enter the table name of interest in the Table Name field, and hit the Enter key on your keyboard.

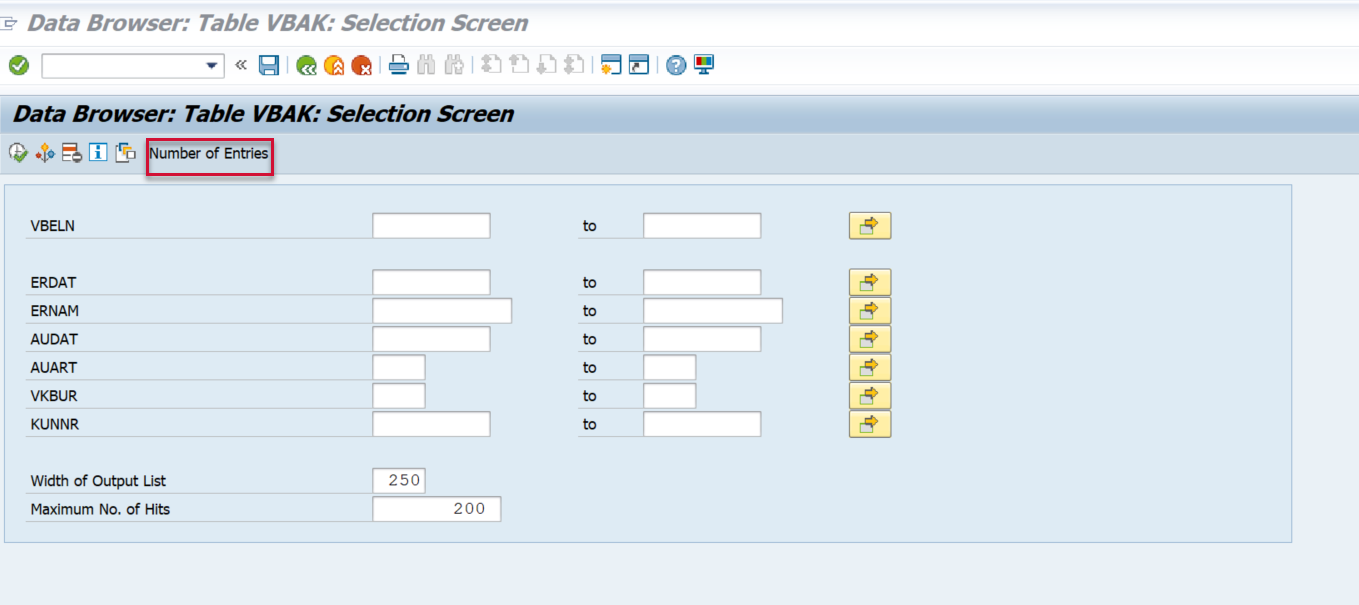

Then use the number of entries button from the selection screen.

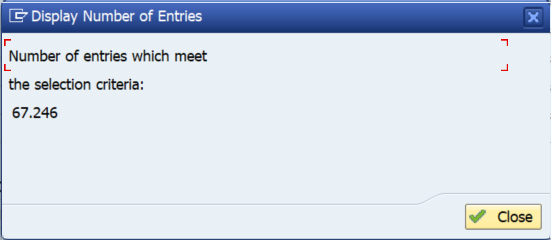

Then the information regarding the record count, which matches the data in Splunk will appear.
Field Mapping
The field mapping between the data from SAP and values in Splunk can be seen in the table below:
Field
Description
Unit of Measure
CURRENT_TIMESTAMP
The date time stamp when the information was collected
YYYYMMDDHHMMSS
DBSPACE
Storage size in database (kilobytes)
Number
EVENT_SUBTYPE
String
EVENT_TYPE
TABLE_COUNT
String
RECORDS
Number of records in the table
Number
TABNAME
Table name
String
UTCDIFF
The UTC OFFSSET in HHMMSS that the data was collected in
HHMMSS
UTCSIGN
The UTC positive or negative OFFSET indicator. Positive (+) means add UTCDIFF to find the time zone of the data, negative (-) means subtract the UTCDIFF to find the time zone adjusted date time the data was collected in.
+ | -
