Installation via SUM (PowerConnect Java - All Versions)

To install the SAP PowerConnect Java monitoring agent perform the following steps.

Acquire the PowerConnect agent from file If you don’t have access to this file, connect with your reseller or PowerConnect support: Raising a PowerConnect Support Request.

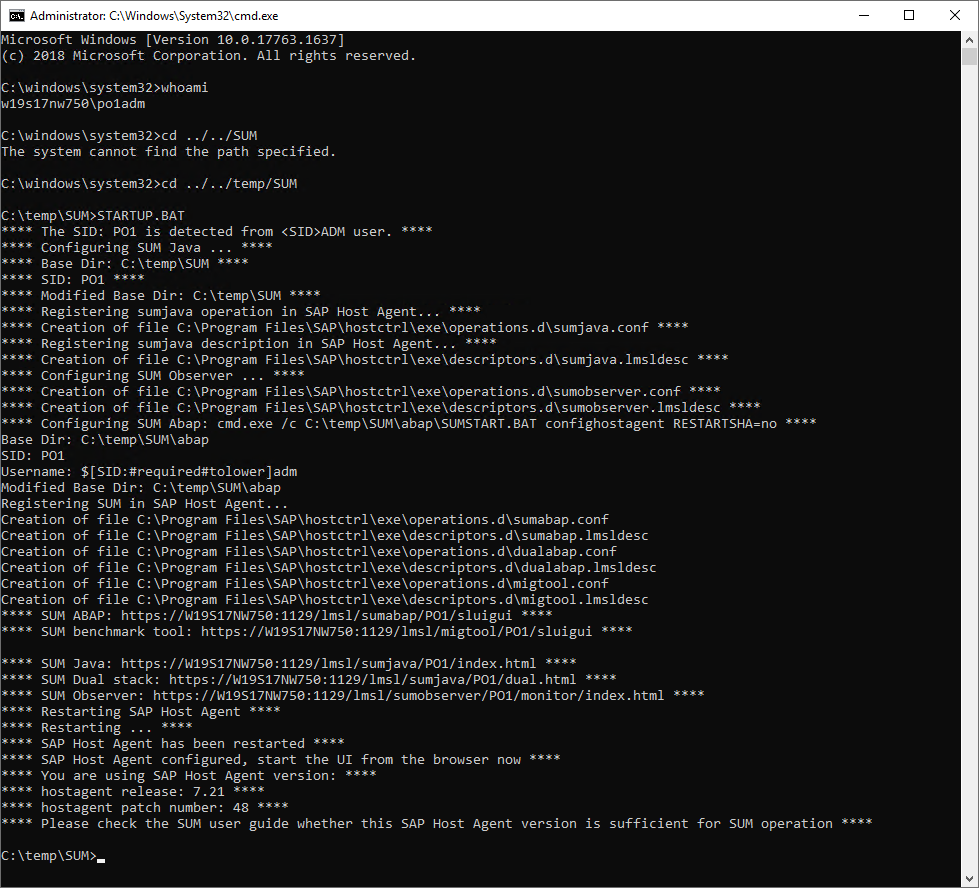

Download the latest SUM and unpack it using SAPCAR to a directory on the SAP application server, in this example we have unpacked SUM to c:\temp\SUM.

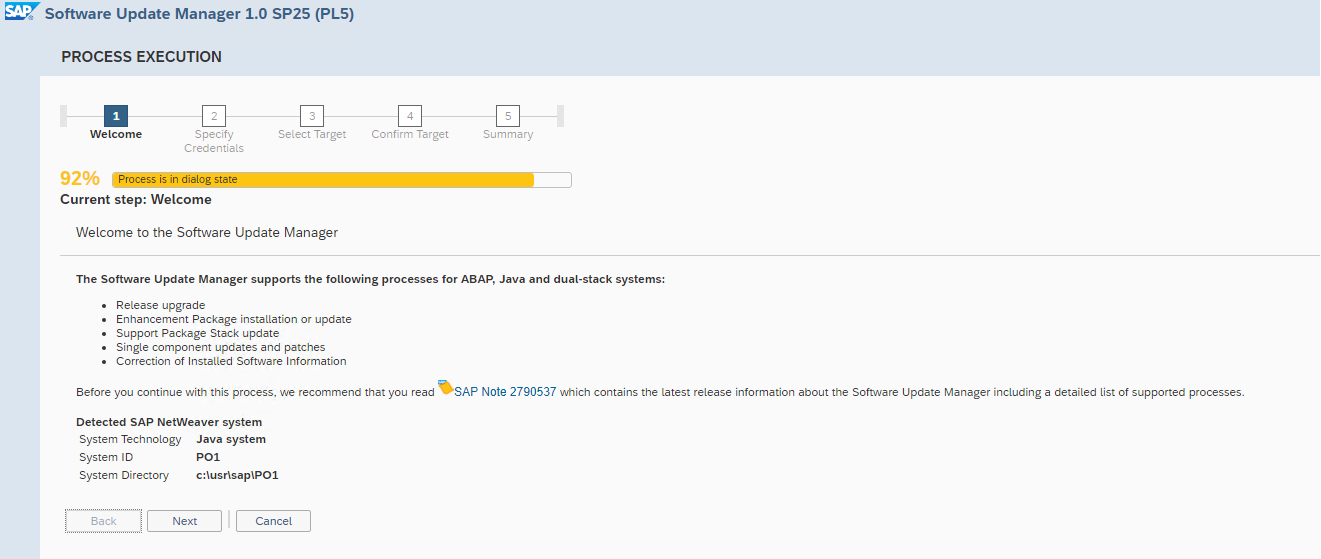

Open a browser and connect to the Java SUM control page https://<host>:1129/lmsl/sumjava/<SID>/index.html. In case you’re not using SSL, open http://<host>:1128/lmsl/sumjava/<SID>/index.html.

Enter <sid>adm credentials

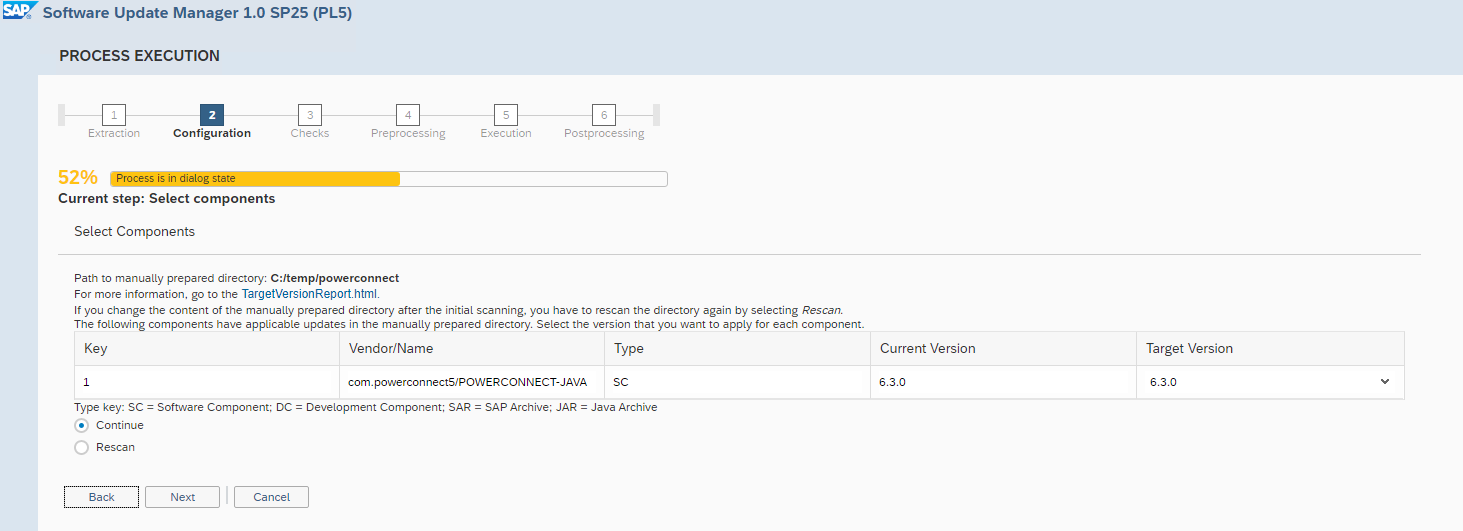

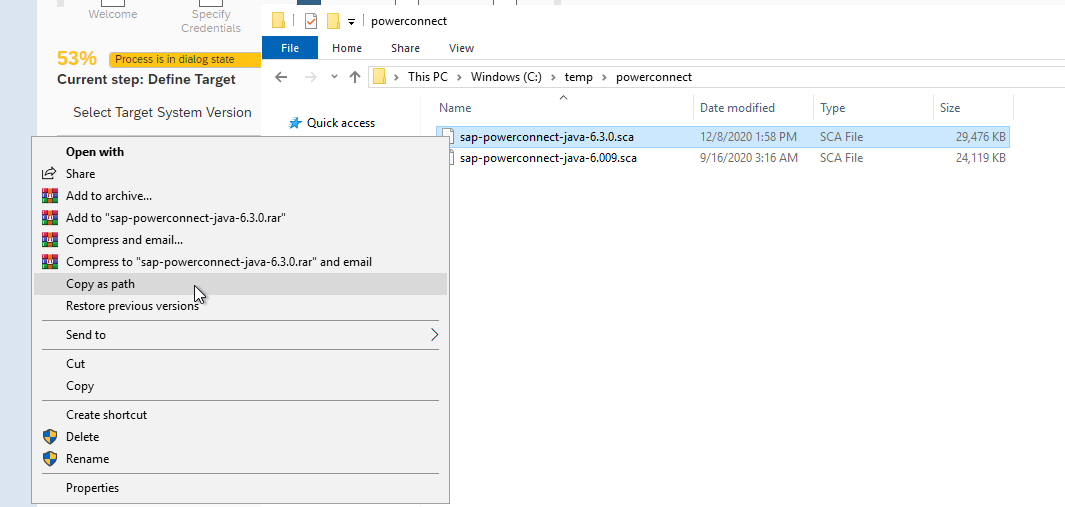

Locate the PowerConnect SCA file

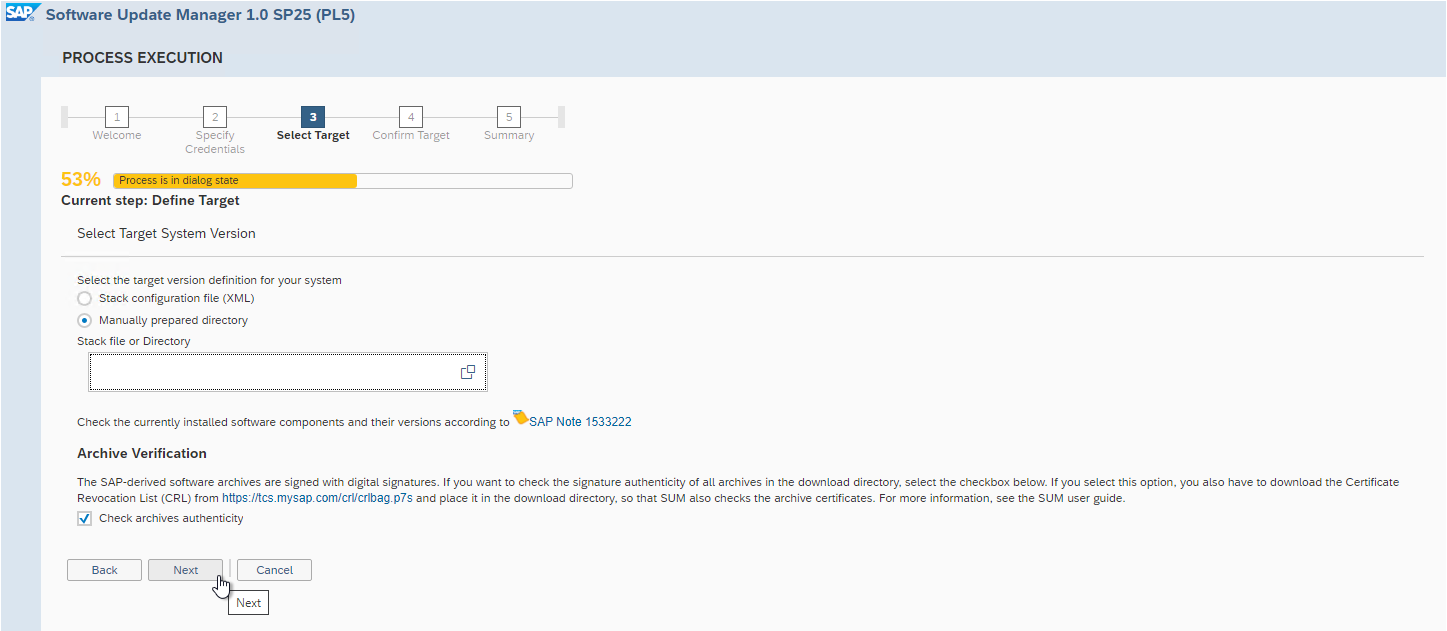

Provide the directory of the installation file

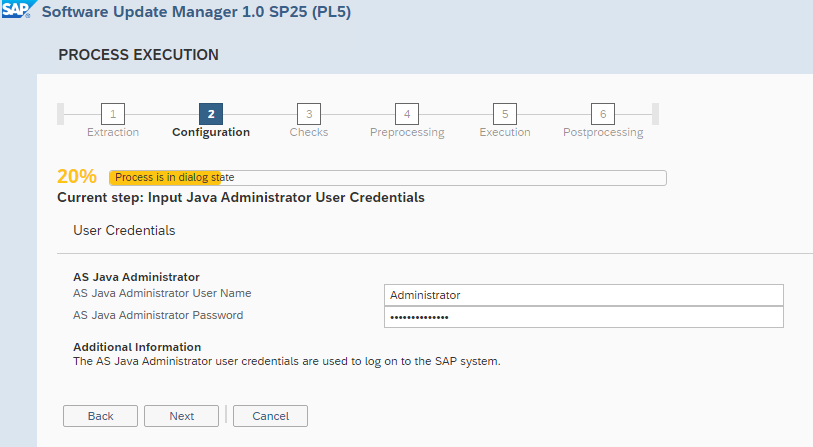

Enter J2EE administrator credentials

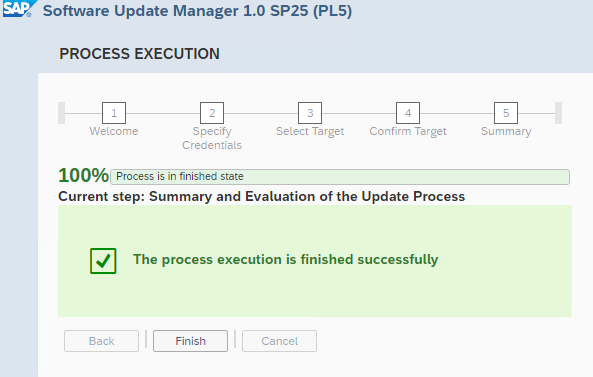

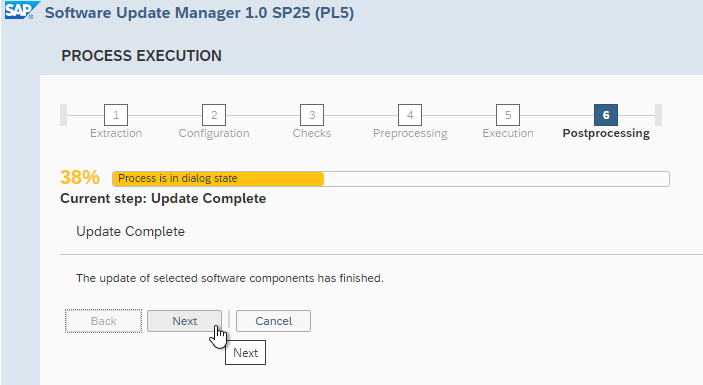

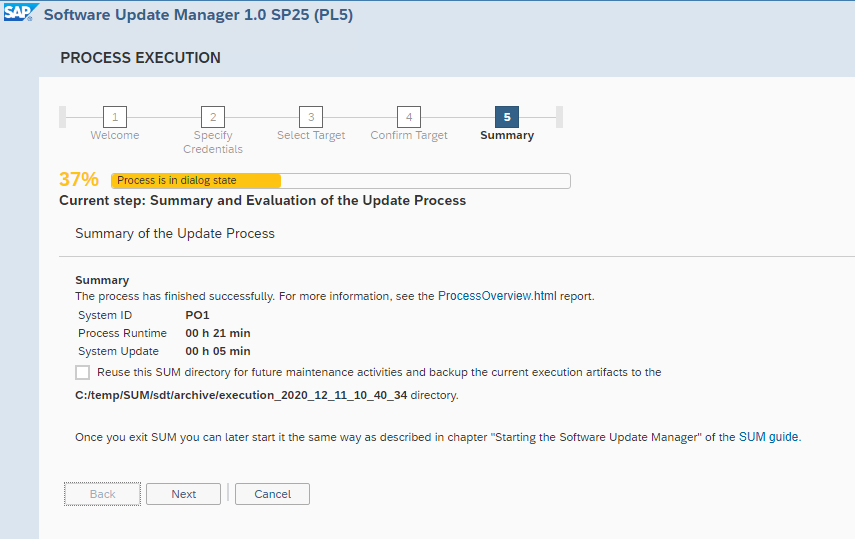

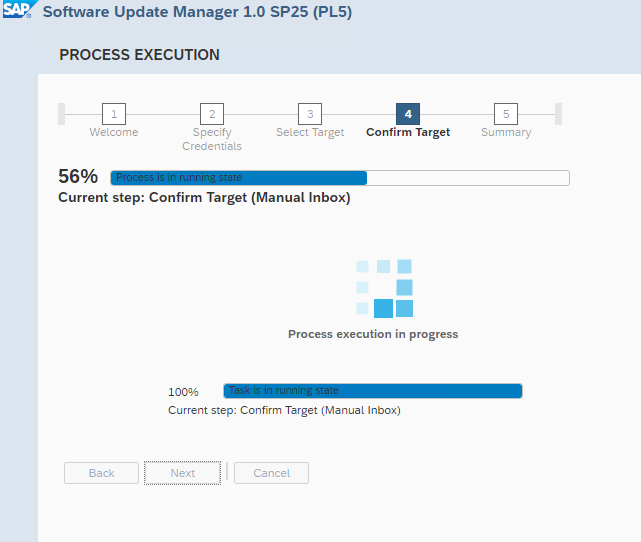

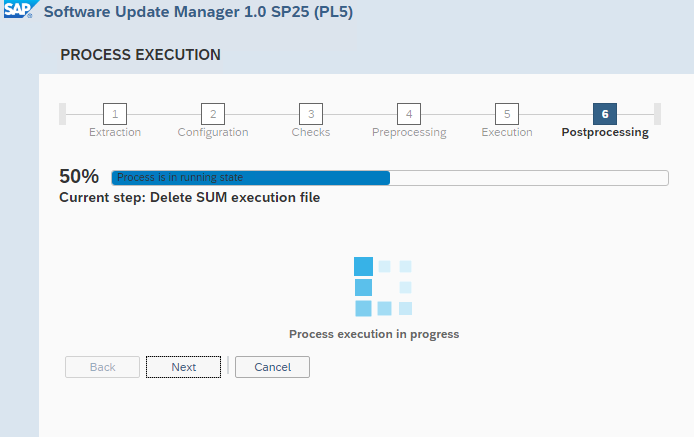

The PowerConnect Java agent is successfully installed. If it fails for any reason send the SUM logs to your PowerConnect reseller or try to perform the installation using Telnet.

If the installation succeeded, however, next step would be to configure roles and users.
