Installation via Telnet (PowerConnect Java - All Versions)
Optionally you can use telnet to deploy the SCA file instead of using SUM, this is supported by SAP for advanced / expert users and has the following advantages.
· No need to setup or configure SUM
· Can also un-deploy an SCA or individual component
· Can upgrade non-sequential version
· Can upgrade / deploy / remove a component that can not be maintained using SUM for any reason
The steps to perform a telnet based deployment of the PowerConnect SCA are below:

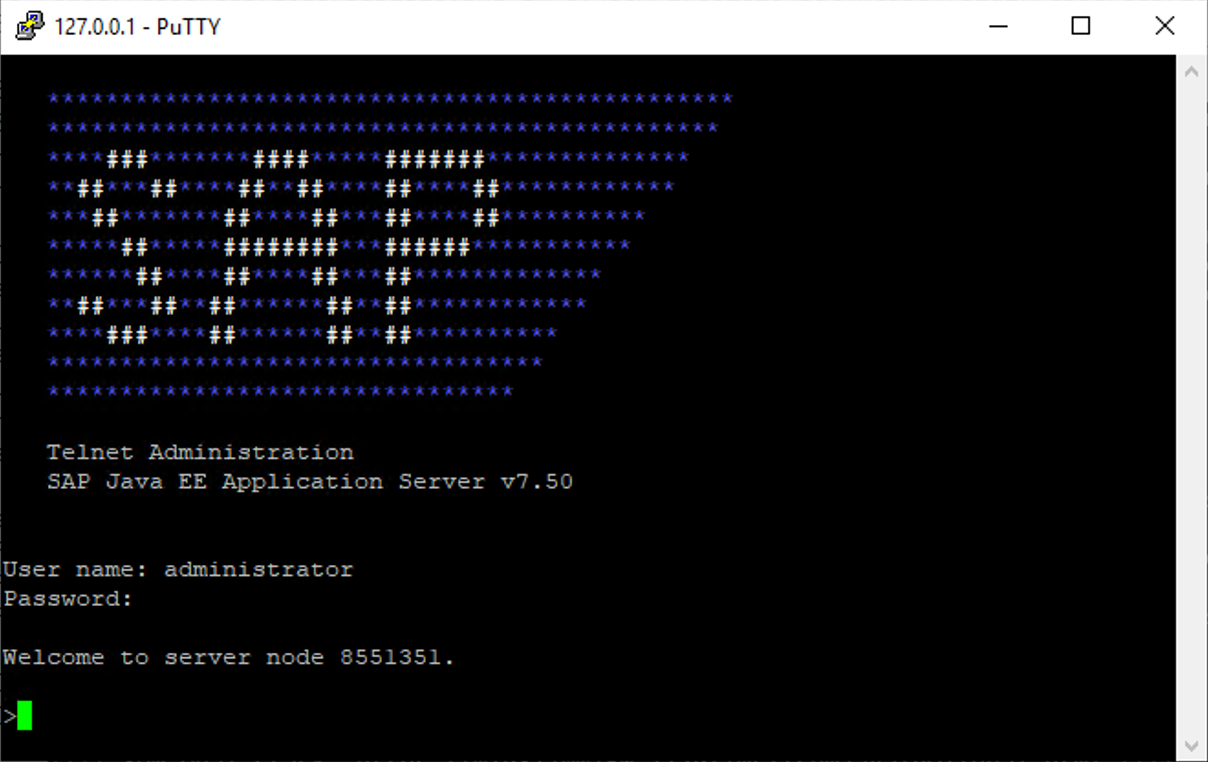

First log in to the J2EE telnet port (5XX08 where XX is the J2EE instance number), in this example it is port 50008, as the SAP instance number is 00.
![](../__attachments/3047554912/image-20201218-105723.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)

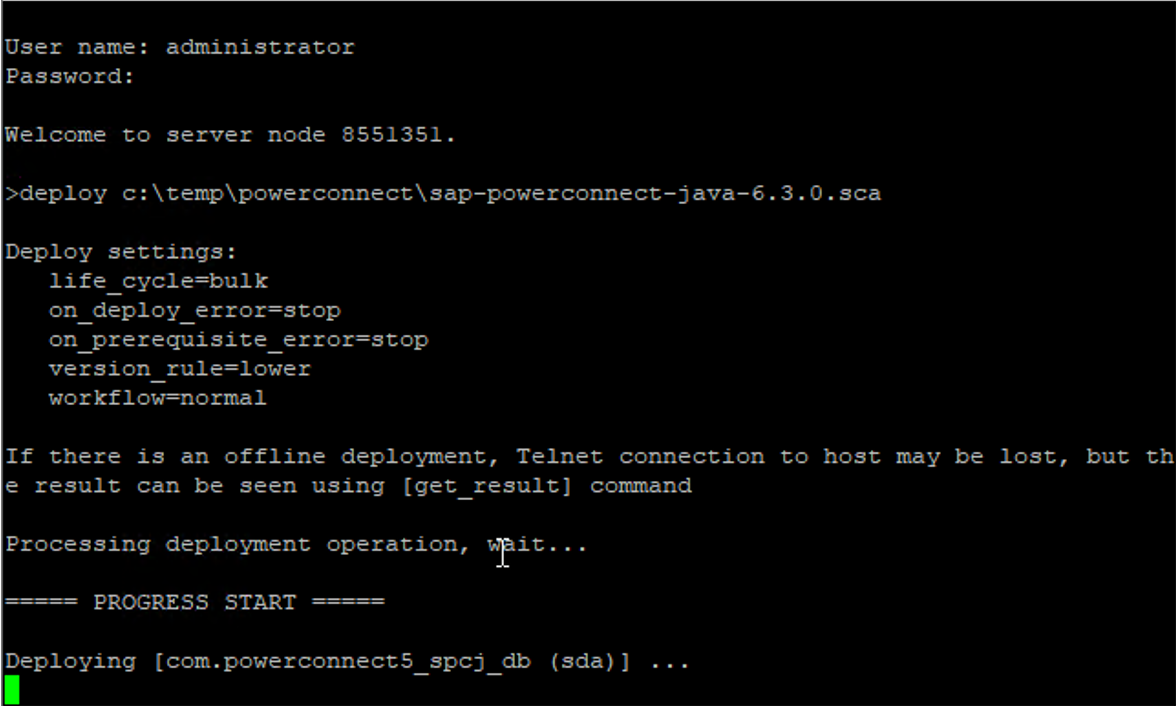

To deploy a the PowerConnect SCA in to the environment use the following command
deploy C:\temp\powerconnect\sap-powerconnect-java-6.0XX.sca (XX = SP version number)

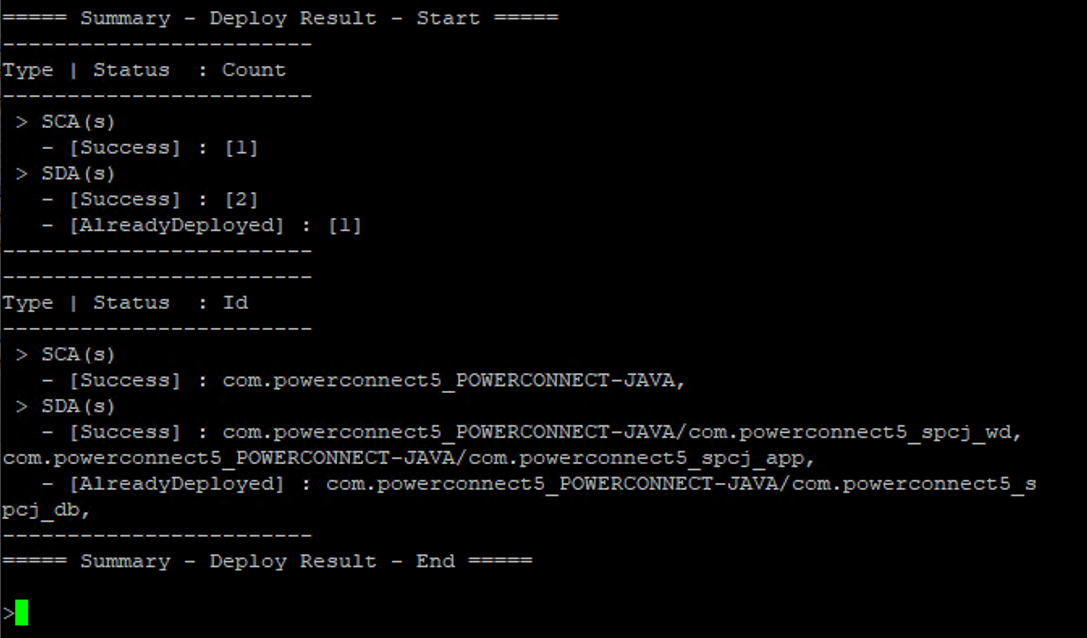

Once deployment is successful
![](../__attachments/3047554912/image-20201218-105812.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)
![](../__attachments/3047554912/image-20201218-110000.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)

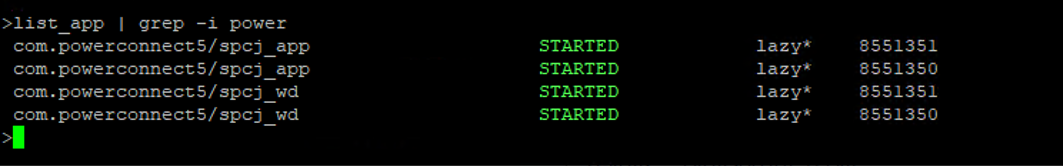

Run the list_app command again to confirm the PowerConnect agent is installed and running
list_app|grep -i power
![](../__attachments/3047554912/image-20201218-110027.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)

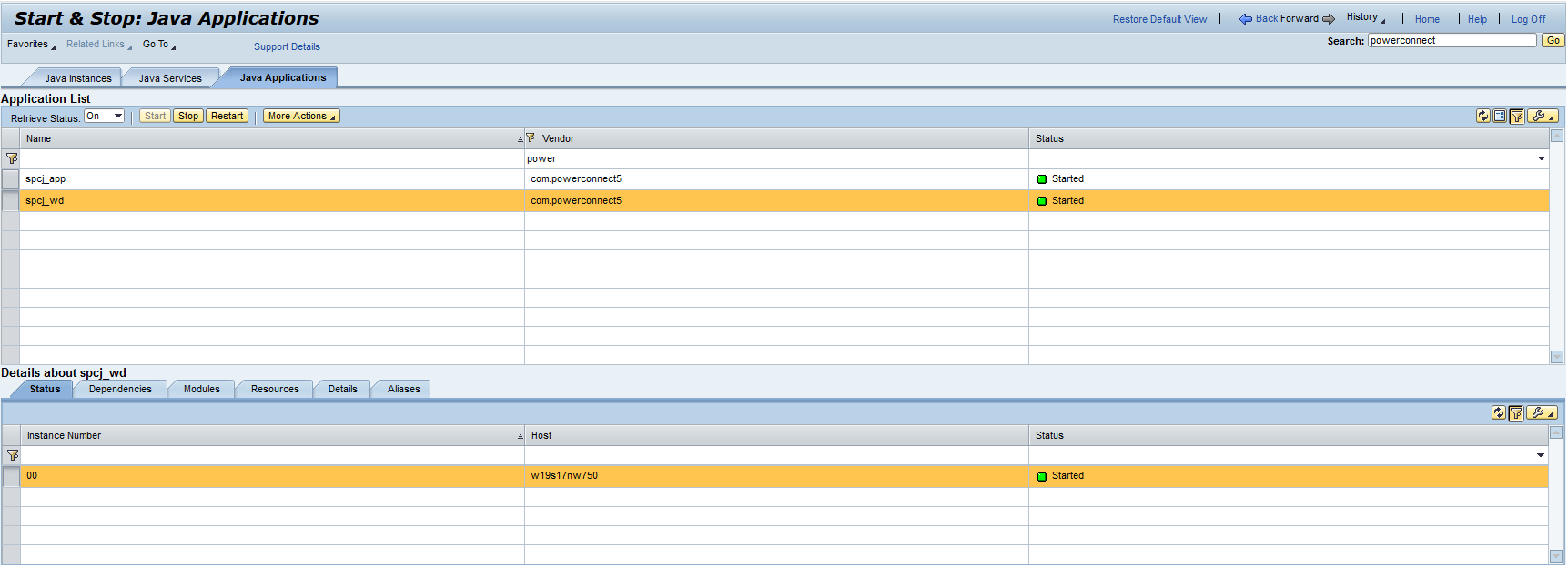

You can also confirm this in the NetWeaver administrator:
![](../__attachments/3047554912/grafik-20210218-151247.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)
![](../__attachments/3047554912/grafik-20210218-151311.png?inst-v=cc5d1456-4022-4264-b658-e73cfc9f0416)
The agent is installed now. Next step would be to configure roles and users for the PowerConnect Java client.
