HDB_DBCC_DISKS

Data Description

The HDB_DBCC_DISKS event is used in SAP to view HANA DB disk and volume utilization.

Potential Use Cases

This event could be used in the following scenarios:

• Alert on disk utilization percentage.

• Trend volume utilization over time.

Splunk Event

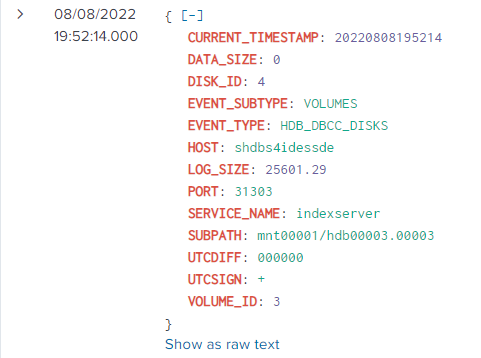

HDB_DBCC_DISKS with EVENT_SUBTYPE=VOLUMES

The event will look like this in Splunk:

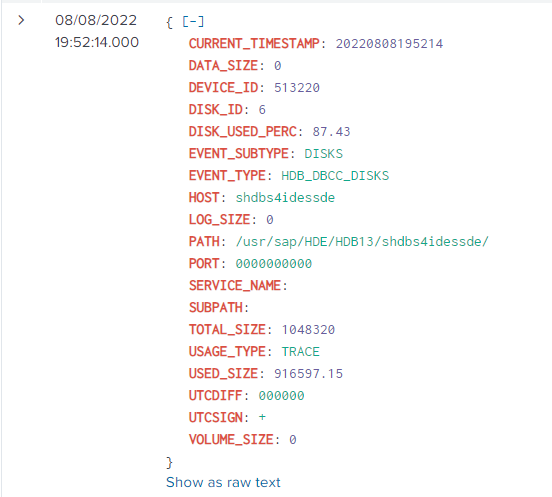

HDB_DBCC_DISKS with EVENT_SUBTYPE=DISKS

The event will look like this in Splunk:

SAP Navigation

HDB_DBCC_DISKS with EVENT_SUBTYPE=VOLUMES

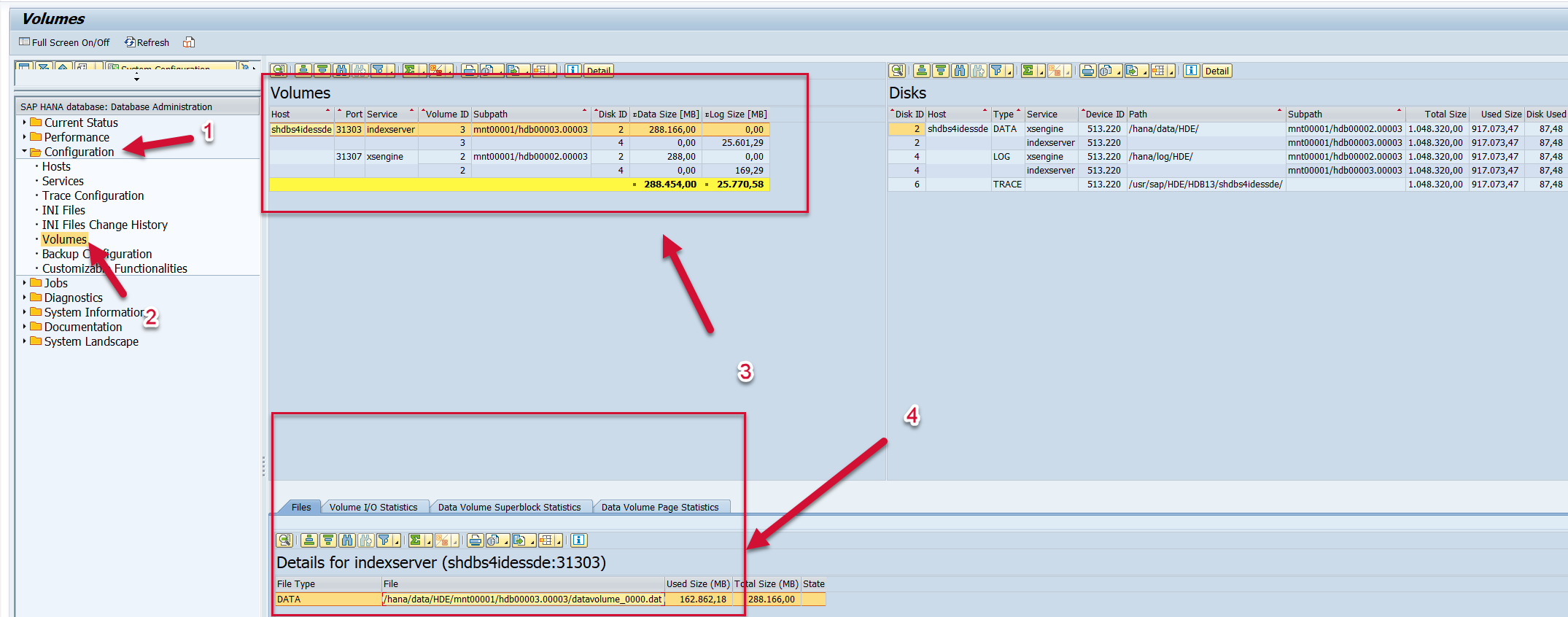

Execute the dbacockpit transaction in the system. Open the Configuration folder and double-click on “Volumes”. The information displayed on the right side of the screen will match the data that is extracted and sent to Splunk. Additionally, click on the volume of interest and the data shown at the bottom of the screen will match the data that is extracted and sent to Splunk.

HDB_DBCC_DISKS with EVENT_SUBTYPE=DISKS

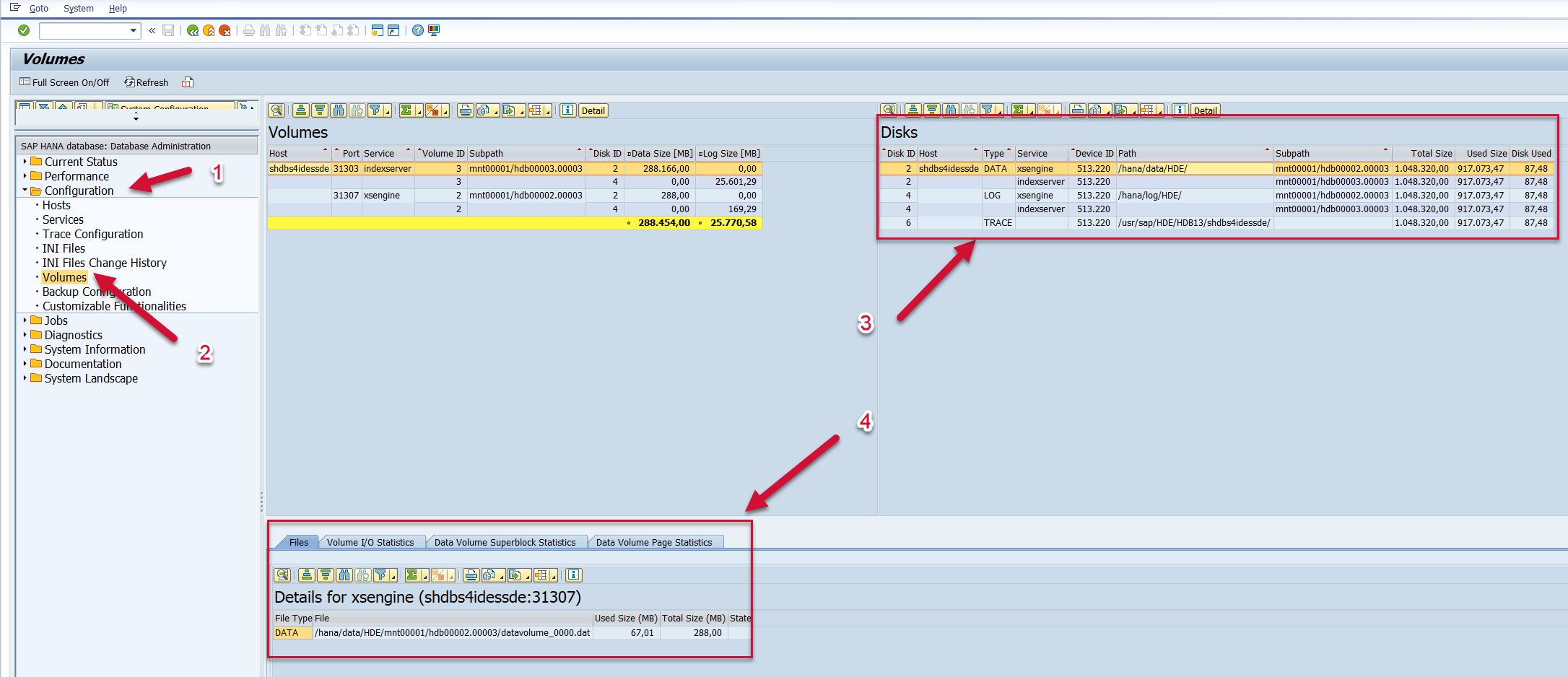

Execute the dbacockpit transaction in the system. Open the Configuration folder and double-click on “Volumes”. The information displayed on the right side of the screen will match the data that is extracted and sent to Splunk. Additionally, click on the disk of interest and the data shown at the bottom of the screen will match the data that is extracted and sent to Splunk.
