ST03_RFCC
Data Description
The ST03_RFCC event is used in SAP’s workload manager transaction ST03N. The extractor collects data from ST03N’s RFC client profile.
Potential Use Cases
This event could be used for performance monitoring of RFC client connections.
Splunk Event

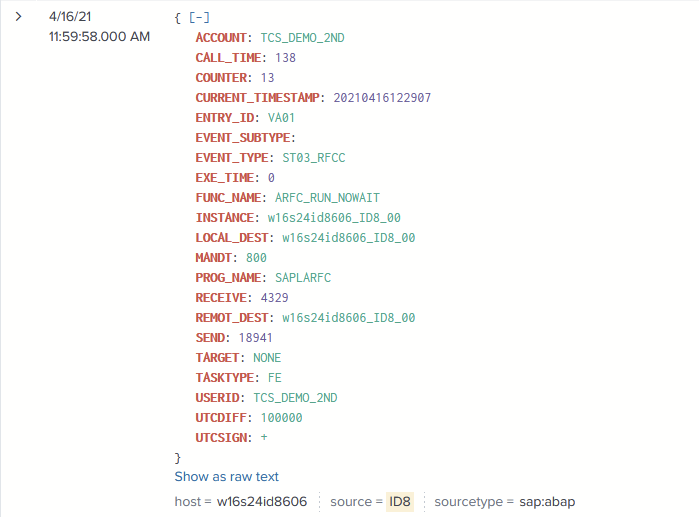

The event will look like this in Splunk:
SAP Navigation

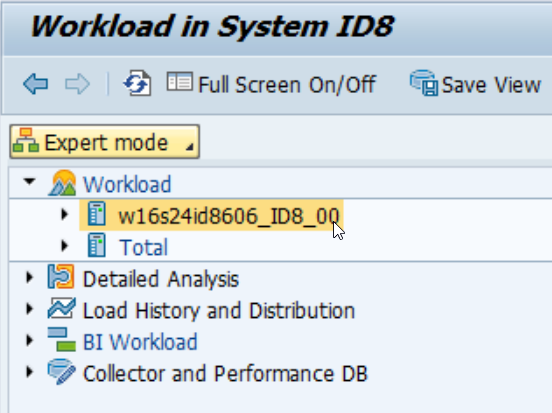

Start transaction ST03 and double click on the instance name.

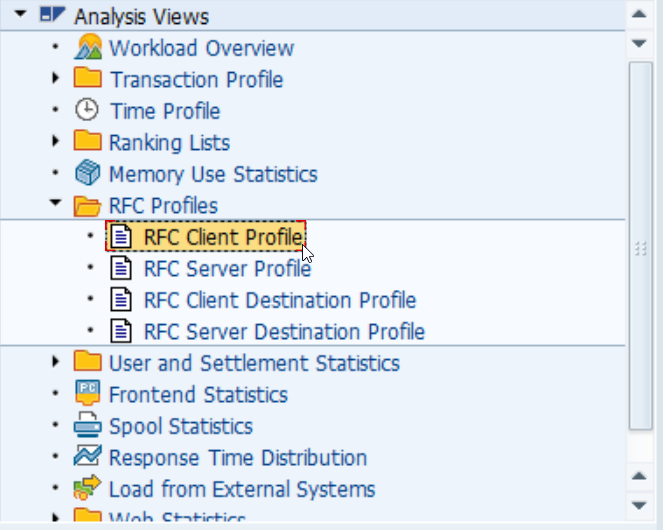

In the Analysis Views area open RFC Profiles and select RFC Client Profile.

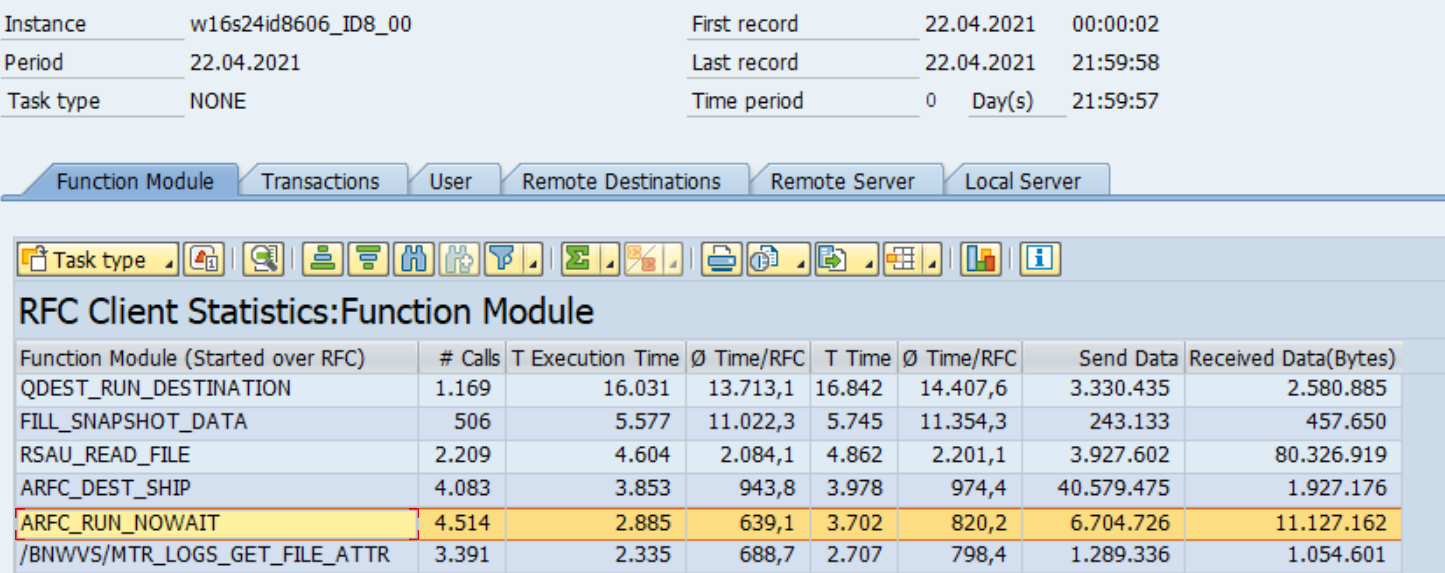

On the right hand side you can find the source of the data, distributed over several tabs.
Appendix
TASKTYPE is a hexadecimal field, please find below a list of values and their meanings:
Hex Code | Task Type |
|---|---|
01 | Dialog |
02 | Update |
03 | Spool |
04 | BCKGRD |
05 | ENQUEUE |
06 | BUF.SYN |
07 | AUTOABA |
08 | UPDATE2 |
0A | EXT.PLUGIN |
0B | AUTOTH |
0C | RPCTH |
0D | RFCVMC |
0E | DDLOG CLEANUP |
0F | DEL. THCALL |
10 | AUTOJAVA |
11 | LICENSESRV |
21 | ANDERE |
22 | DINOGUI |
23 | B.INPUT |
65 | HTTP |
66 | HTTPS |
67 | NNTP |
68 | SMTP |
69 | FTP |
6C | LCOM |
75 | HTTP/JSP |
76 | HTTPS/JSP |
FC | ESI |
FD | ALE |
FE | RCF |
FF | CPIC |
