SSB_KPI - SAP Smart Business(SSB) KPI

Data Description

The SSB_KPI event is used to obtain SAP Smart Business KPI details.

Potential Use Cases

This event could be used in the following scenarios:

Getting the current KPIs of SAP Smart Business Tiles
Determine KPI trends over time

Metric Filters

To extract SAP Smart Business(SSB) KPI details, a user must configure the SSB KPI information using the filter functionality. Only the SSB details with active configuration will be extracted. The following steps need to be performed to set up the Filter configuration:

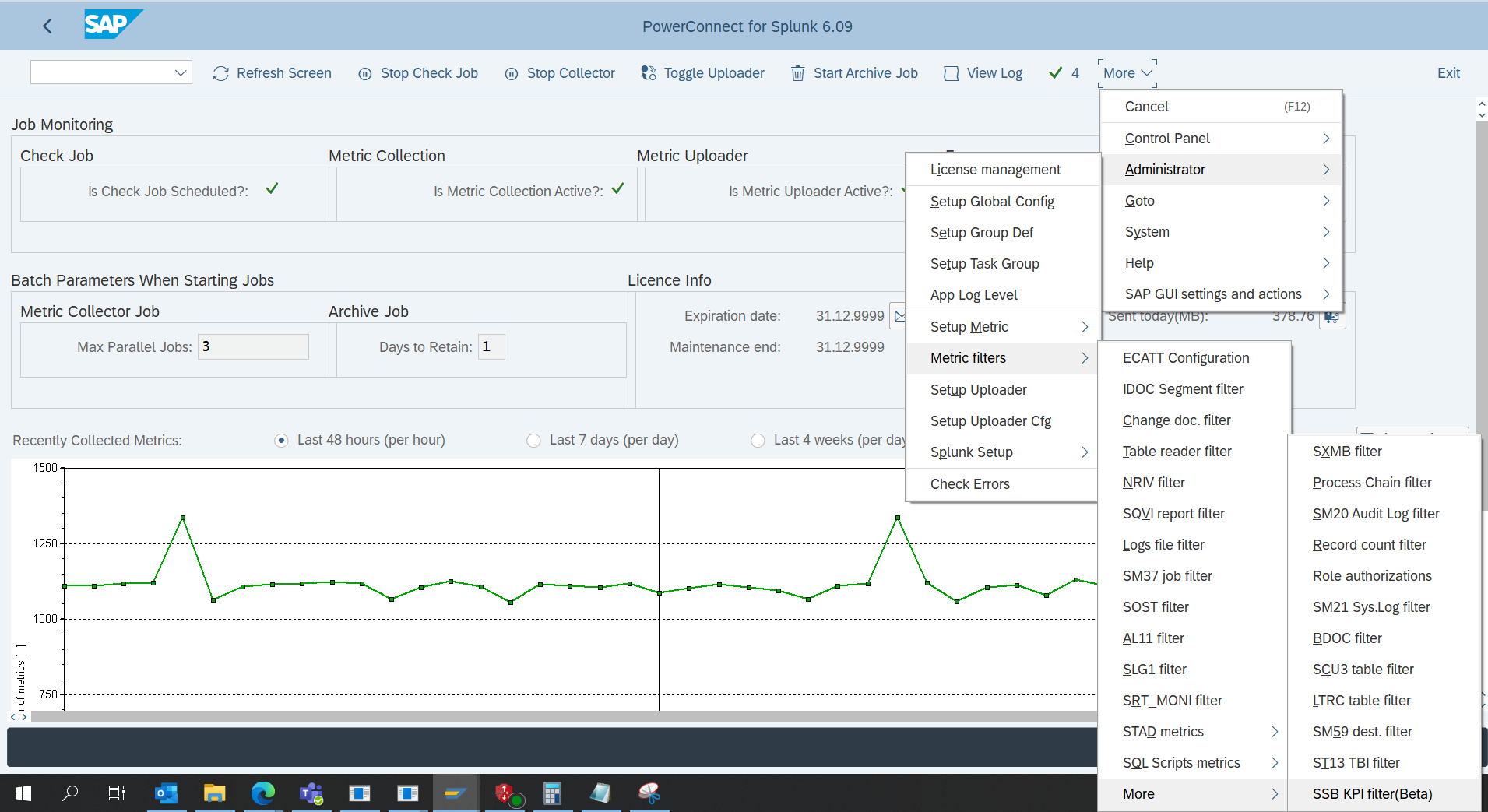

Open SSB KPI filter using menu option below (Administrator->Metric filters->More->SSB KPI filter)

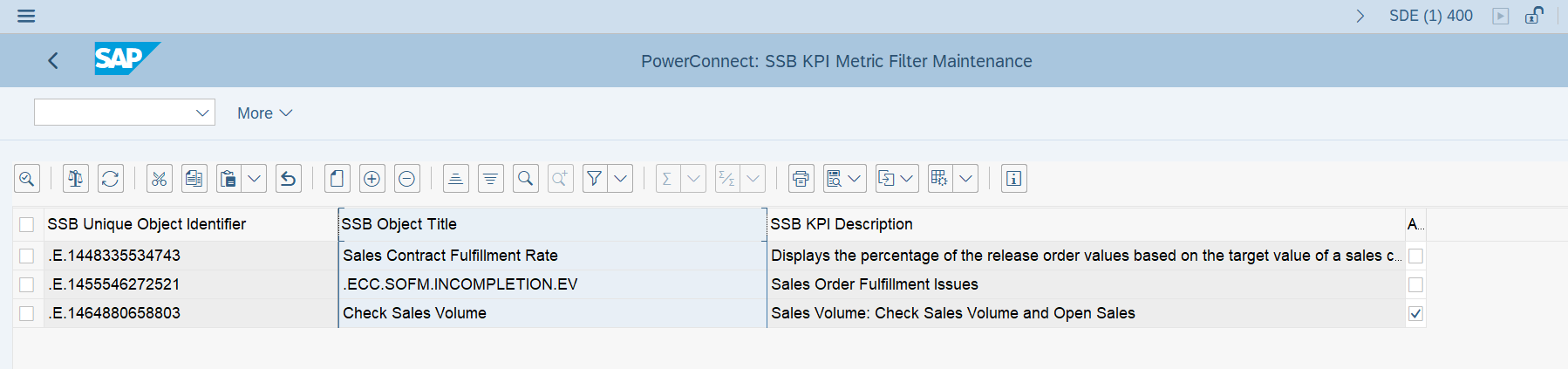

Maintain the technical id of the SSB KPI with active status for which details needs to be extracted.

Splunk Event

SSB KPI with EVENT_SUBTYPE=””

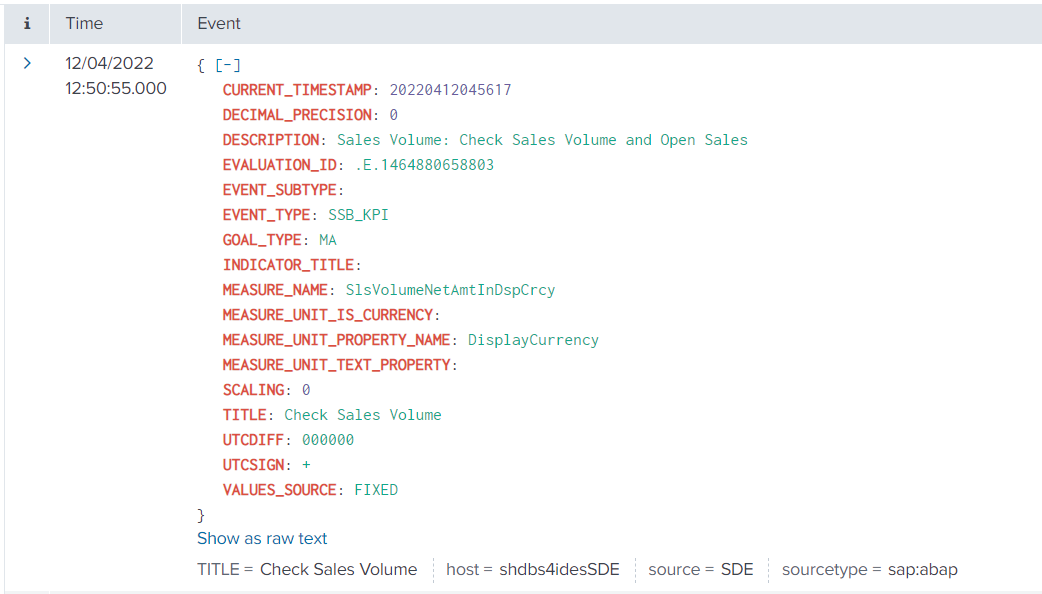

This event contains the design configuration details of the SAP Smart business KPI. The event will look like this in Splunk:

SSB KPI with EVENT_SUBTYPE=”KPI_PARAMETER”

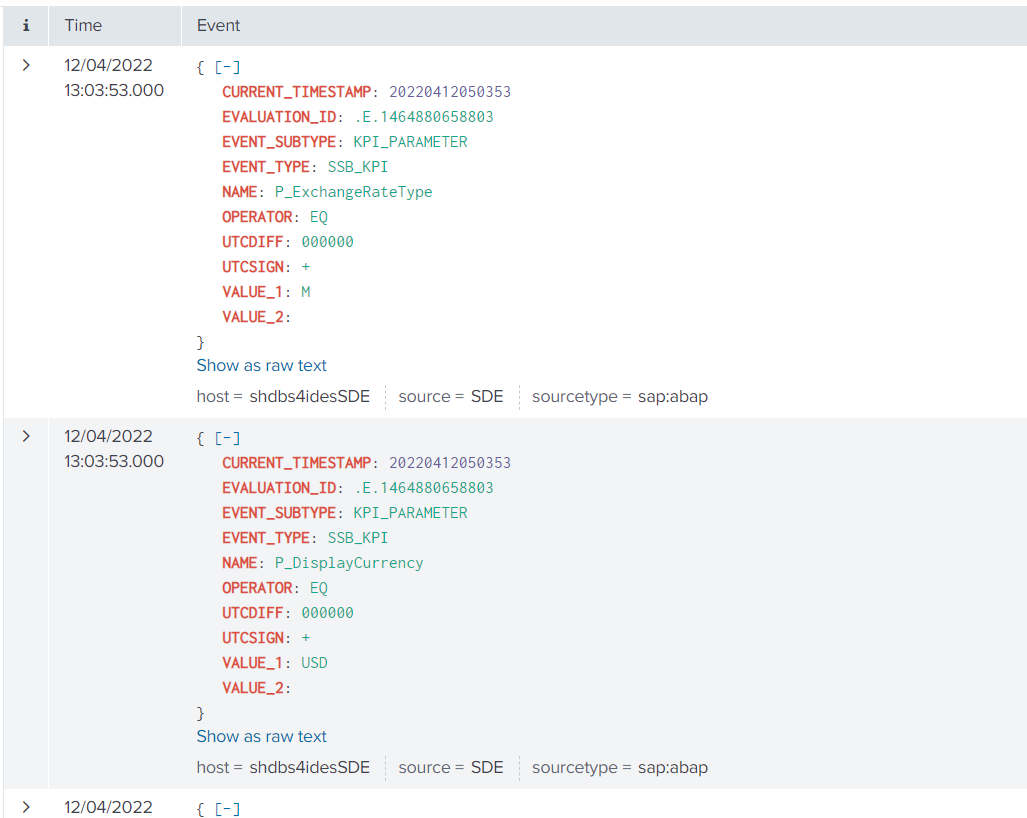

This event contains the parameter details of the SAP Smart Business KPI. The event will look like this in Splunk:

SSB KPI with EVENT_SUBTYPE=”KPI_FILTER”

SSB KPI with EVENT_SUBTYPE=”KPI_TILEINFO”

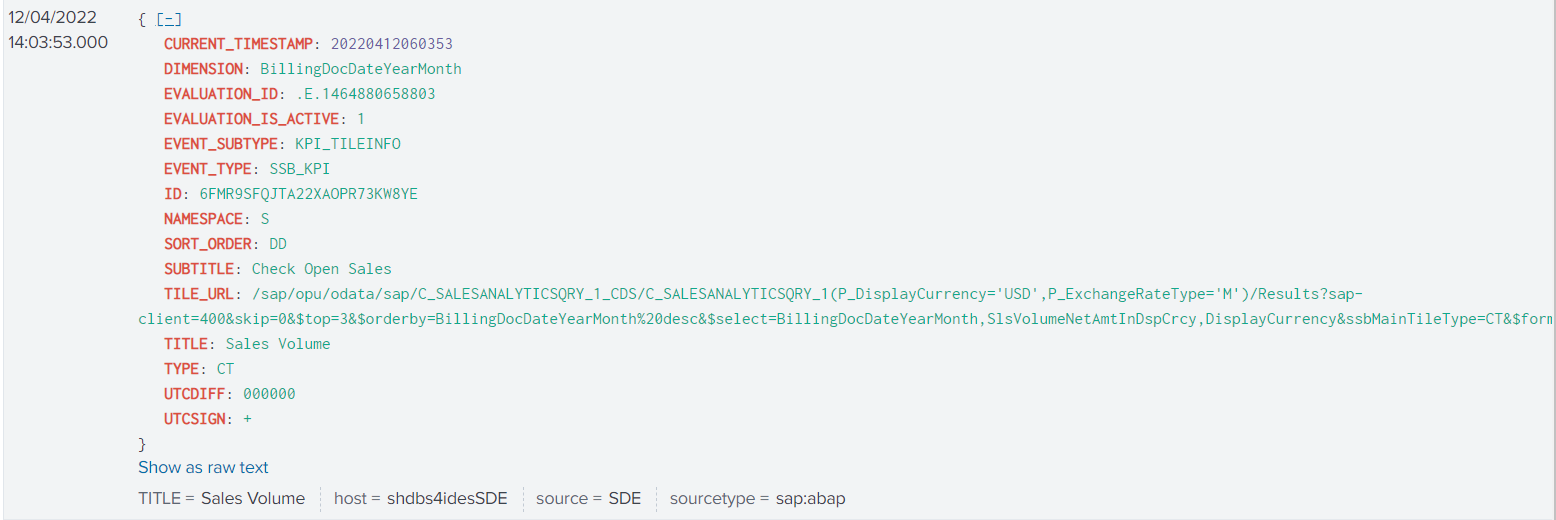

This event contains the tile/s information of the SAP Smart Business KPI. The event will look like this in Splunk:

SSB KPI with EVENT_SUBTYPE=”KPI_TILE_OUTPUT”

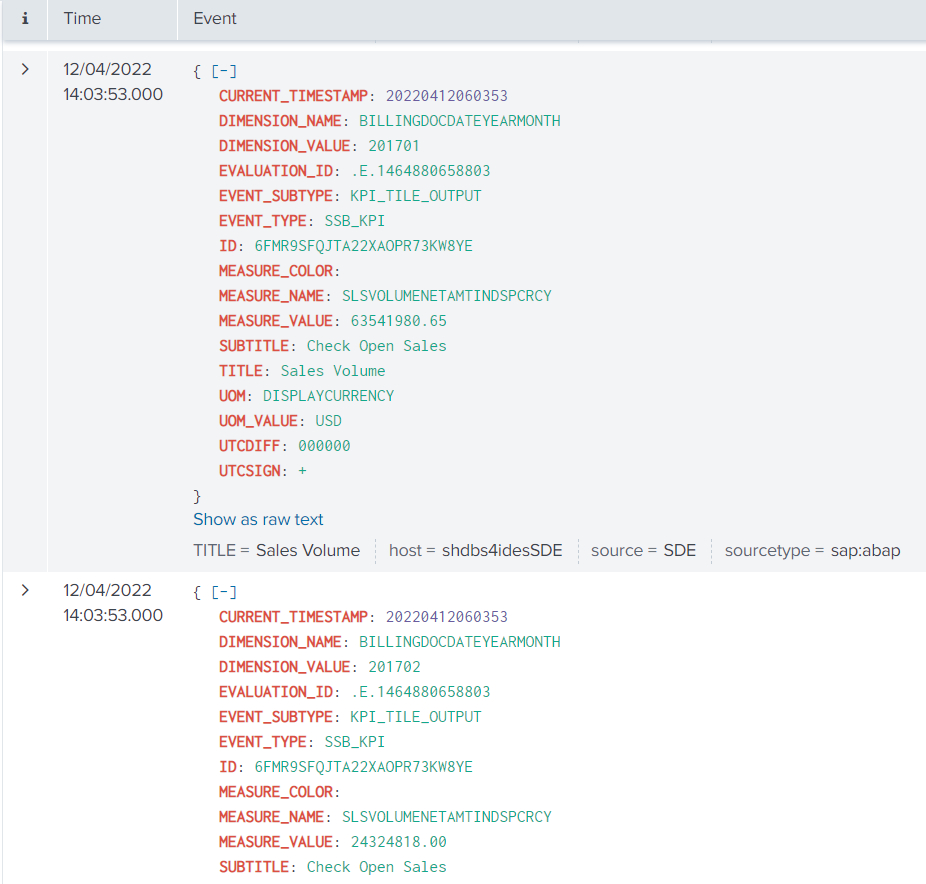

This event contains the output of SAP Smart Business KPI that is available on the Fiori Tiles. The event will look like this in Splunk:

If the Fiori Tile has a dimension, then the dimension values is displayed, else it is blank and only measure values are displayed.

SAP Navigation

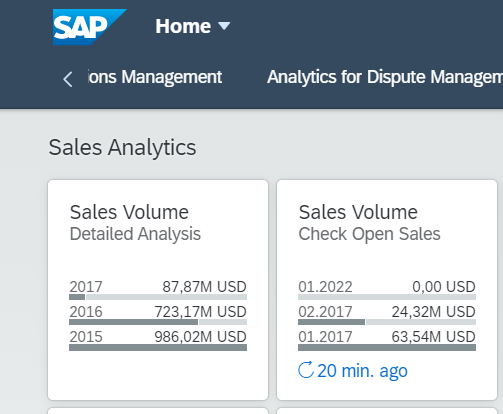

The configured SAP Smart Business KPIs are available on Fiori Launchpad as shown in below screen. The details present on the Fiori tiles/s are present in the subgroup ‘KPI_TILE_OUTPUT’.
